Flowserve 682M Wet Seal Cooler

Name: Flowserve 682M Wet Seal Cooler
Brand: Flowserve
SKU: flowserve-3471

رقم القطعة: flowserve-3471

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

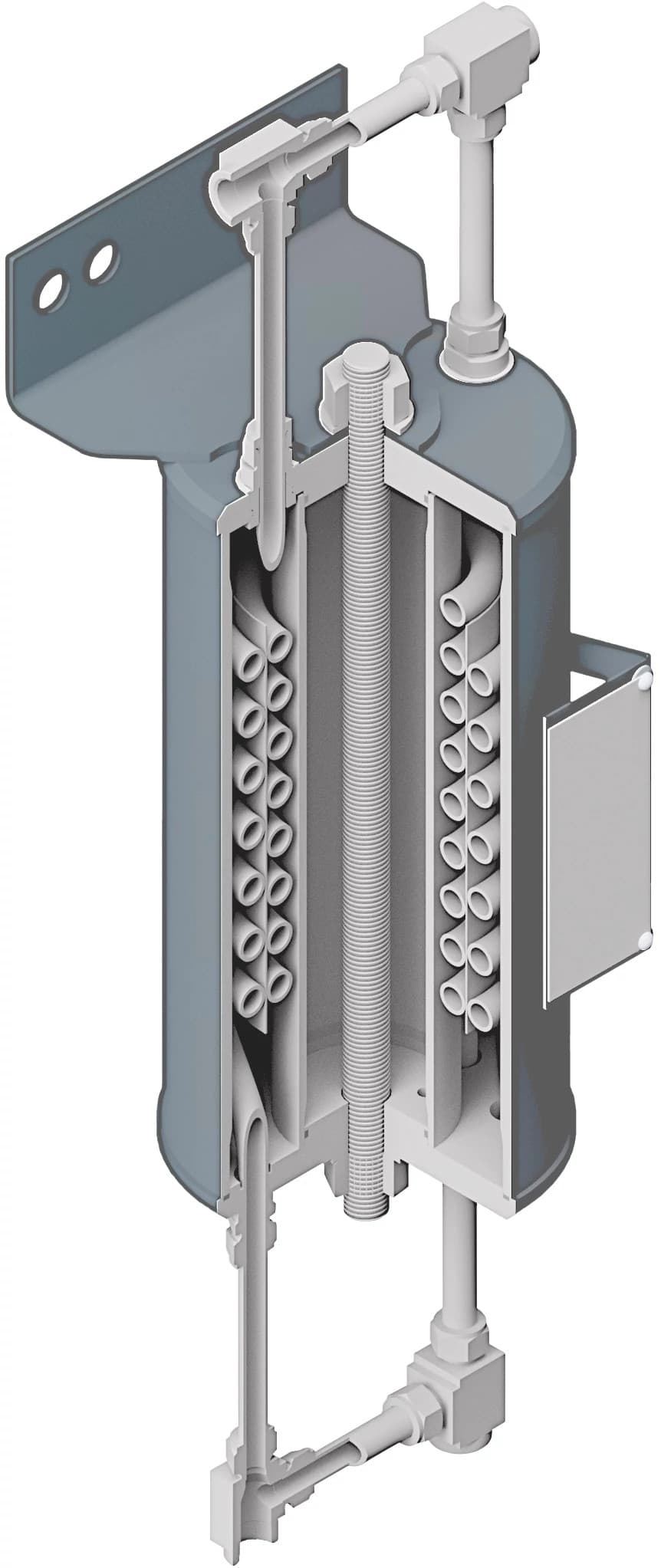

Flowserve’s 682 Seal Cooler family uses “shell and tube” systems with optimized baffling that lowers the fluid temperature passing through the tubing while minimizing scaling and fouling of the water passing through the shell. Compatible with single or dual mechanical seals, 682 Seal Coolers are utilized as standalone units or part of a comprehensive piping plan package. The 682M Seal Cooler is our mid-level option, ideal for operations that want to balance cost with ease of maintenance. Maintenance teams can disassemble the unit in the field for easy cleaning and inspection. The 682M Seal Cooler is available in series or parallel flow configurations. Features and benefits: - Preconfigured series and parallel tubing flow path connections simplify ordering and shorten lead times. - Each unit is delivered factory hydrotested to API 682 4th edition. - Total drainage and venting for both shell and tube makes installation and commissioning easy while enhancing efficiency and maximizing performance. - 316 stainless steel tube provides superior corrosion resistance.

المواصفات

Brand line	Flowserve
Standards	API 682 4th Edition
O-rings	Fluoroelastomer
Tube	255 bar @ 371°C (3,700 psi @ 700°F)
Shell	15.8 bar @ 150°C (230 psi @ 302°F); Painted carbon steel
Tubing	316 stainless steel
Fittings	316 stainless steel
