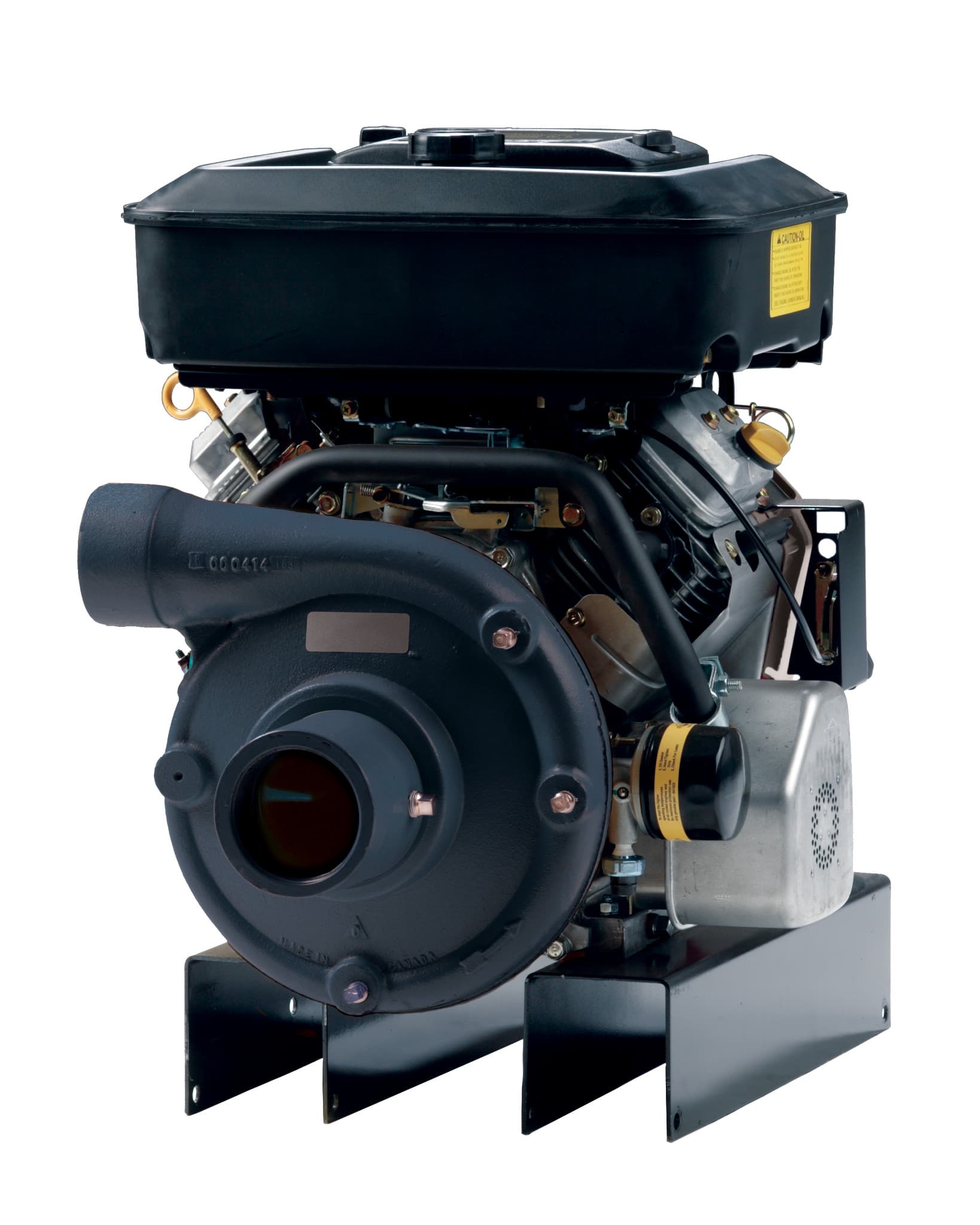

FNG-23V End Suction Gas Engine Driven Centrifugal Pump 90261223A

Franklin Electric

FNG-23V End Suction Gas Engine Driven Centrifugal Pump 90261223A

رقم القطعة: franklin-electric-90261223a

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Our centrifugal gas engine pumps can be used in mining, irrigation, construction and other heavyduty applications. Features and benefits: - Close-coupled design with the pump impeller threaded directly onto the engine shaft. - Cast Iron construction volute makes for a robust and rugged product - Cast iron construction balanced impeller, designed for maximum efficiency. - Self lubricating, Type 21, 1-1/4-inch mechanical seal. - Replaceable bronze wear ring. - 23 horsepower Briggs & Stratton Vanguard V Twin engine. - Cast iron cylinder sleeves for extended life. - Electric start (Battery and Cables not included) - Low Oil Alert (oil pressure switch installed for low oil warning light, warning light not included) - Water Truck - Irrigation - Commercial - Construction - Municipal - General Services

المواصفات

HP 60Hz23 hp
FrequencyNot Applicable
PhasesNot Applicable
VoltsNot Applicable
Maximum Fluid Temperature212 °F
Pump Body MaterialCast Iron
ImpellerClosed
Impeller MaterialCast Iron
SealMechanical Seal
DischargeThreaded - NPT
Discharge Diameter2.5 "
Product Weight206 lb
Warranty Standard Time12 Months
Item #90261223A
ModelFNG-23VM w/8.00” trim
Series9-Inch FNG-23V End Suction Gas Engine Driven Centrifugal Pump
Product familyFNG-23V End Suction Gas Engine Driven Centrifugal Pump
Pump Length43.83 "
Pump rpm - 60 HzVarious
Pump Height22.18 "
Pump Width22.21 "
SuctionThreaded - NPT
Suction Diameter3 "
Engine Size - Driven Pumps (CC)623
Engine Brand For Driven PumpsBriggs & Stratton
