Dewatering (Self-priming) Pump, SP-3A  EE4, 5 Hp, 415 Volts, Size 80 mm X 80 mm

Kirloskar Brothers

Dewatering (Self-priming) Pump, SP-3A  EE4, 5 Hp, 415 Volts, Size 80 mm X 80 mm

رقم القطعة: kirloskar-brothers-d14af05041401069

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

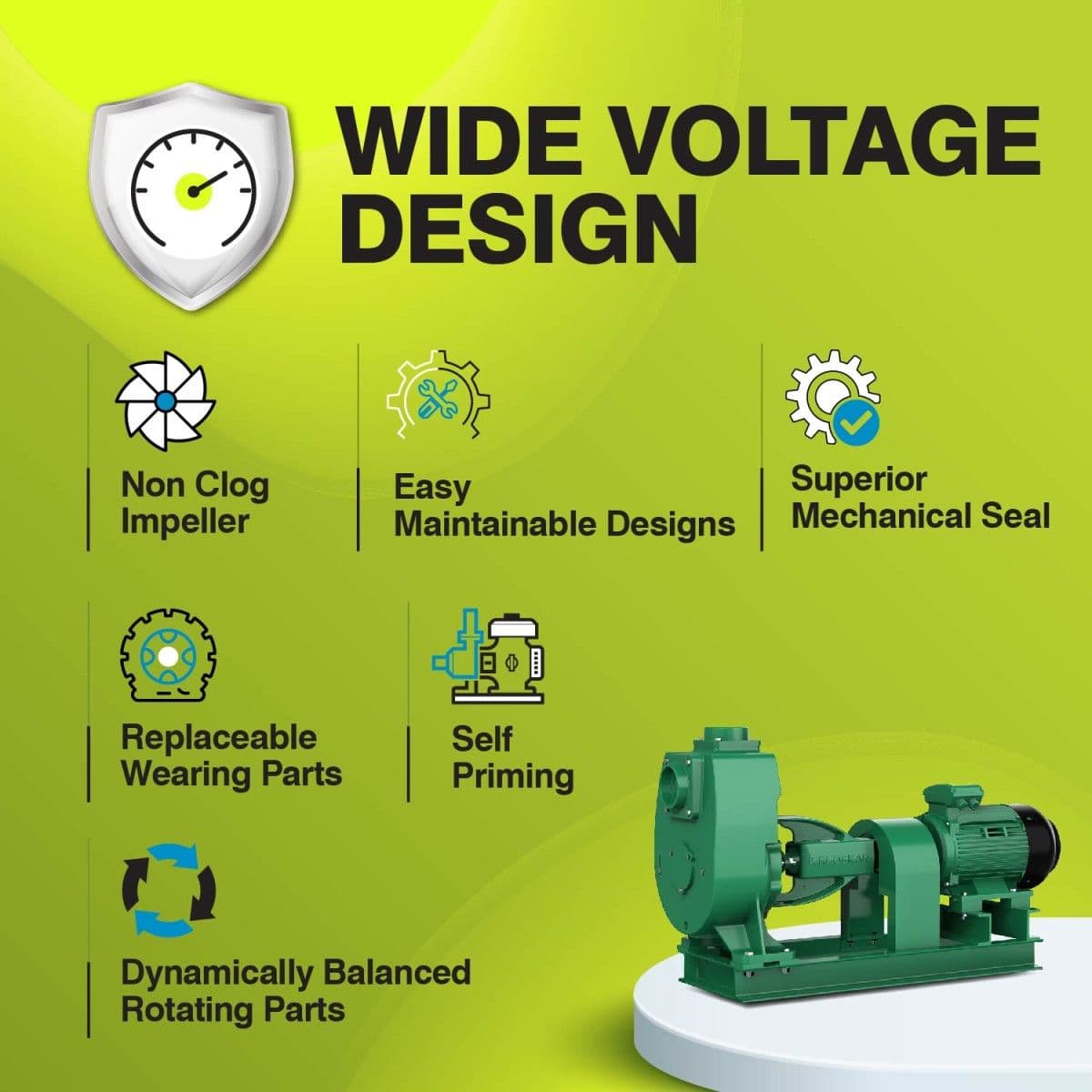

Overview Kirloskar dewatering pump is majorly used for dewatering applications. An exclusive range of submersible dewatering pumps is widely used for Handling chemicals, effluents, sewage, ash water, Dewatering foundations, Trenches and pits, Flood water handling, Pumping water from docks, ports, vessels, Dewatering from basements, multi-stories, shopping malls, godowns, Cooling water for marine engines and shovels. Key Features - Self Priming - No need for foot valve and priming pumps every time for quicker operations - Nonclog Impeller - Nonclog impeller to handle suspended soft solids up to 60 MM in size making it suitable for sewage and dewatering applications - Flatter Efficiency Curve - Minimum variations in efficiency during the entire operating range increases the utility of the pump set for variable conditions - Designed to Prevent Overloading - Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown - Dynamically Balanced Rotating Parts - Minimum vibrations protect components from damage during the operations, thus ensuring consistent performance as concentricity is maintained - Replaceable Wearing Parts - All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump - Easy Maintainable Designs - Easily maintainable design and better interchangeability of components so that the pump can be serviced even at remote locations by semi-skilled technicians

المواصفات

Product SeriesSP
Pump ModelSP-3A
Pump Type (Installation)Surface
Pump Type (Application)Dewatering (Self-Priming )
Power (In HP)05.00
Phase3
Rated Voltage (Volts)415
Frequency (in Hz)50
Speed (rpm)2900
Head Minimum (in m)22
Head Maximum (in m)31
Discharge unitl/s
Suction Size (in mm)80
Delivery Size (in mm)80
ImpellerCAST IRON
Delivery CasingCAST IRON
Motor BodyCAST IRON
Pump ShaftC.S
SealingGLAND PACKED
Certification/AccreditationNon-ISI
Warranty12 Months
Gross Weight (kg)237
Net Contents1 Pumpset
Item CodeD14AF05041401069
No. of Stages1
