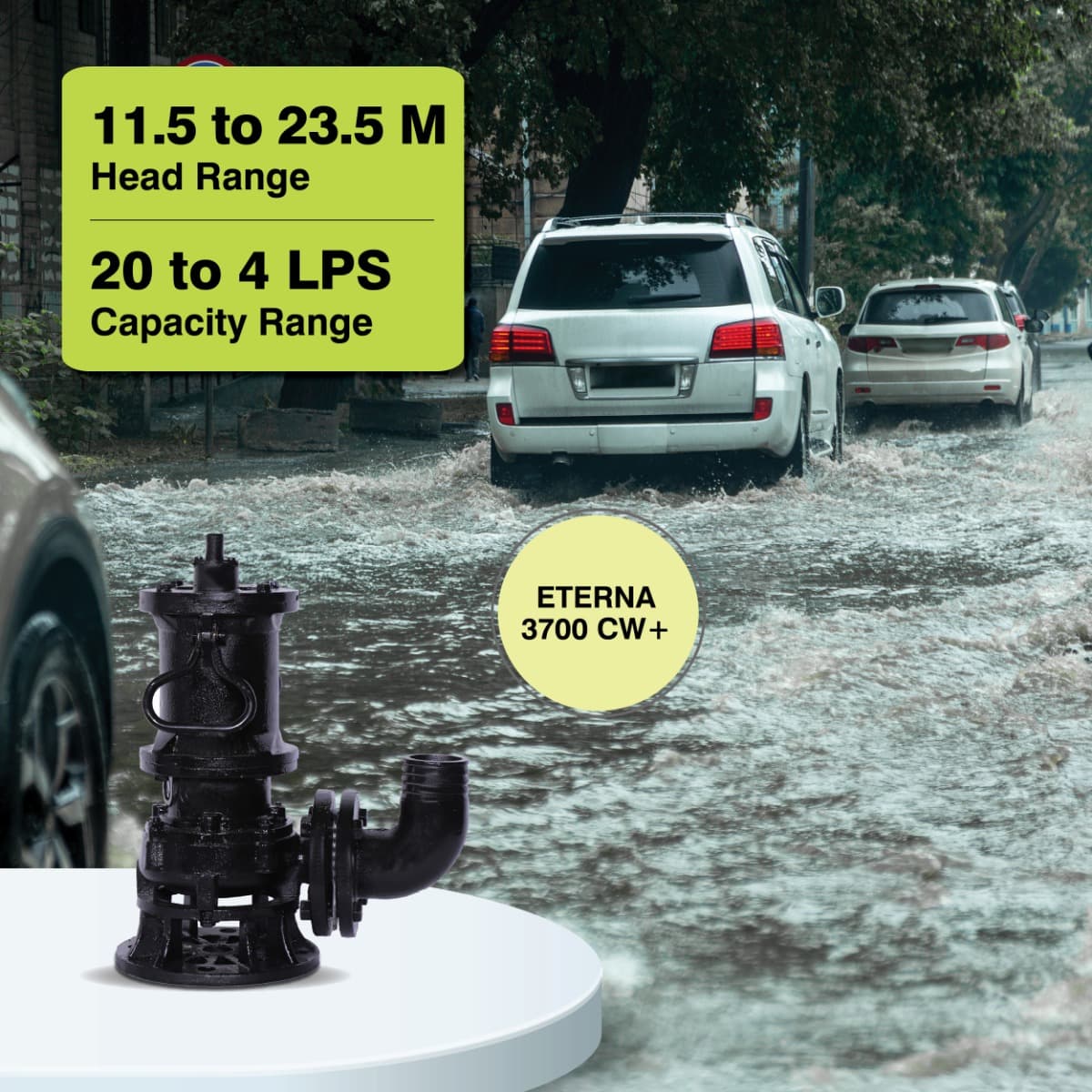

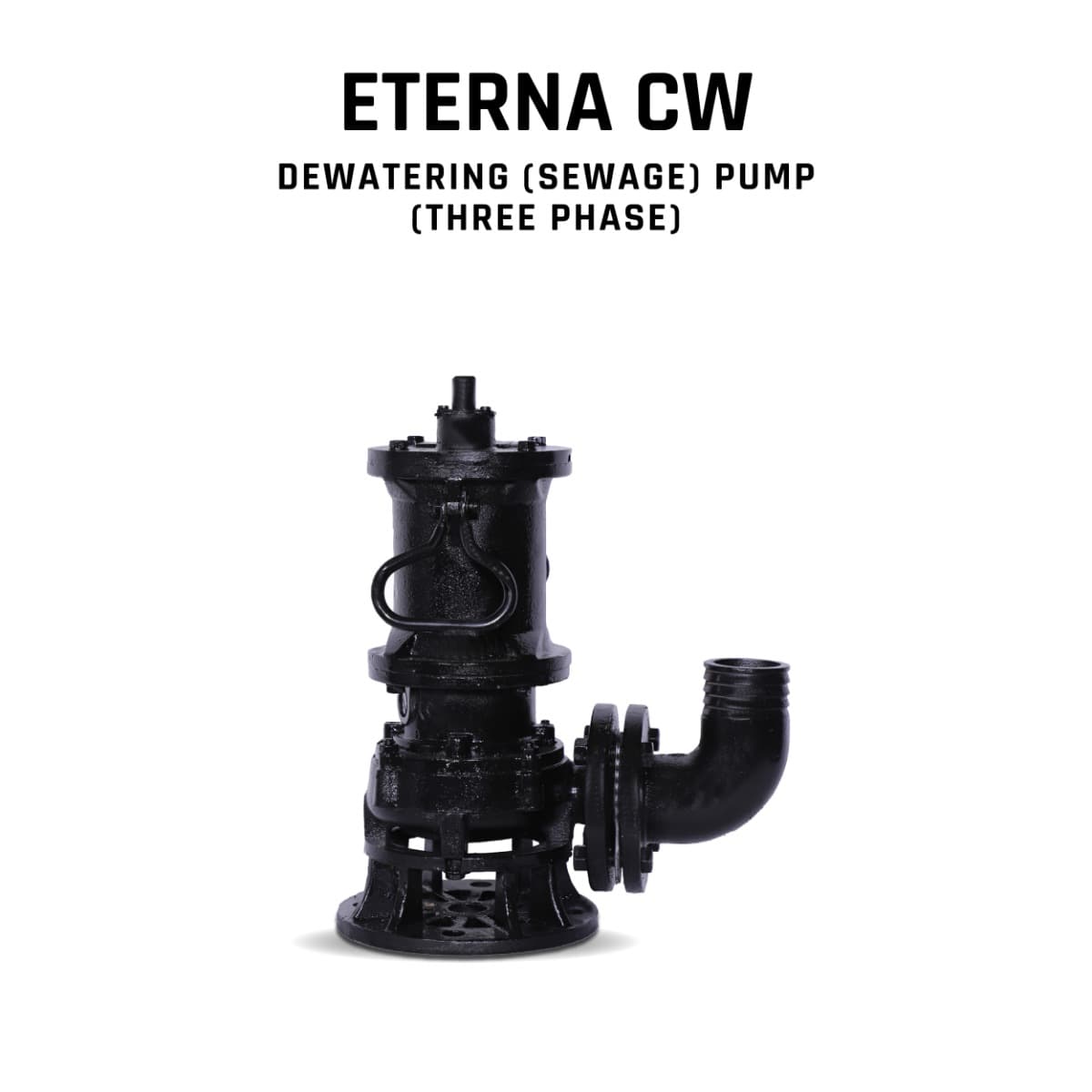

Dewatering (Sewage) Pump, ETERNA 3700 CW+, 5 HP, Three Phase, 415 Volts, Size 65mm

Kirloskar Brothers

Dewatering (Sewage) Pump, ETERNA 3700 CW+, 5 HP, Three Phase, 415 Volts, Size 65mm

رقم القطعة: kirloskar-brothers-d12cd05011201042

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

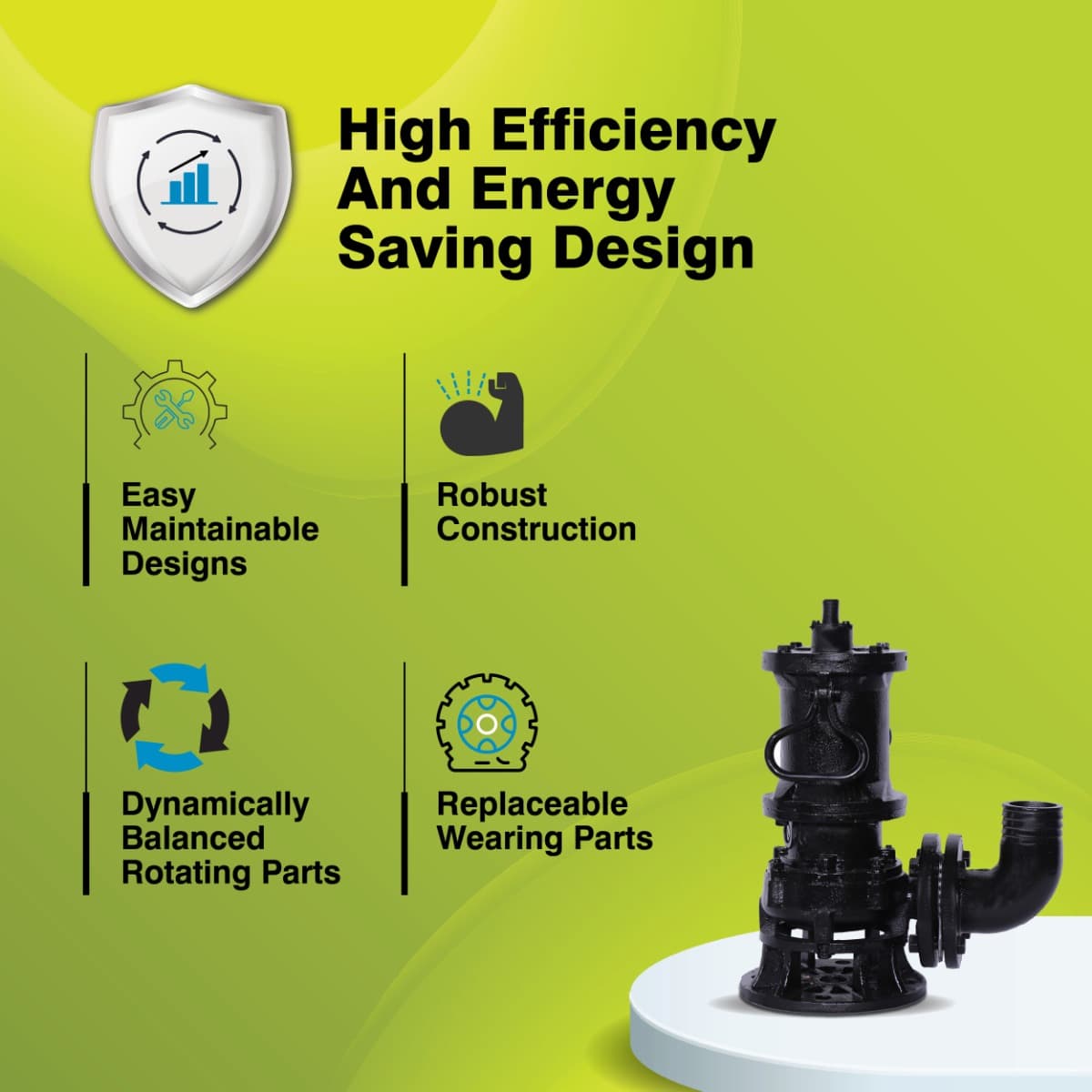

Overview Heavy-duty Kirloskar sewage de-watering submersible pumps are pre-fitted with a float switch which ensures that the pump is automatically switched on and off as per requirement. These ready-to-use pumps don’t require any insulation. Just drop it in the tank and you are ready to go. With a strong stainless steel body and a thermal overload protector, these pumps are suitable for a wide range of dewatering purposes including removing stagnant water from basements, draining accumulated stormwater and surplus water from sumps, emptying water tanks and pits for cleaning, etc. Features - High Efficiency and Energy Saving Design - Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. - Easy Maintainable Designs - Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians. - Robust Construction - Heavy duty construction made from graded cast iron, carbon + silicon carbide mechanical seal makes the pump suitable for sewage and sludge. - Replaceable Wearing Parts - All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump. - Dynamically Balanced Rotating Parts - Minimum vibration protect components from damage during the operation, thus ensuring consistent performance as concentricity is maintained.

المواصفات

Product SeriesCW
Pump ModelETERNA 3700 CW+
Pump Type (Installation) Submersible
Pump Type (Application)Dewatering (Sewage )
Power (In HP)05.00
Phase3
Rated Voltage (Volts)415
Frequency (in Hz)50
Speed (rpm)2900
Head Minimum (in m)11.5
Head Maximum (in m)23.5
Discharge Minimum4
Discharge Maximum20
Discharge unitLPS
Delivery Size (in mm)65
ImpellerC.I. Gr. FG-200 OF IS:210
Delivery CasingC.I. Gr. FG-200 OF IS:210
Motor BodyC.I. Gr. FG-200 OF IS:210
Pump ShaftS.S. Gr. X12CR12 OF IS:1570 Part-5
SealingMECH SEAL
Certification/AccreditationNON -ISI
Gross Weight (kg)98.0
Net Contents1 Pumpset
Item CodeD12CD05011201042
Manufacturing locationDewas, Madhya Pradesh
No. of Stages1
Min. Submergence From Bottom (in mm)1
Max Solid Size (in mm)35
