Monobloc Pump, KSMB 220, 2 HP, Three Phase, 415 Volts, Size 50mm x 32mm
رقم القطعة: kirloskar-brothers-t11160061334
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Overview 2 HP Kirloskar Monoblock Pump KSMB-220 wetted components are made of stainless steel, designed to prevent overloading of the pump if the pump is operated at a head lower than recommended. This Monoblock Water Pump has easy maintainable design and can be easy to service at a remote location by a semi-skilled technician. This water pump has dynamically balanced rotating parts, This pump is widely used for food industries, demineralizing plants, dairy, beverages etc. Key Features This Monobloc pump has a mechanical seal to ensure no leakage, lower friction loss and protects from wearing shaft Dynamically balanced rotating parts help minimize vibration and protect components from damages Corrosion, erosion and rust-free pump components, best suited for dairy, beverages and food processing industry Design to prevent overloading to operate on the overloaded pump if lower head than recommended
المواصفات
| Product Series | KSMB |
|---|---|
| Pump Model | KSMB 220 |
| Pump Type (Installation) | Surface |
| Pump Type (Application) | Monobloc |
| Power (In HP) | 02.00 |
| Phase | 3 |
| Rated Voltage (Volts) | 415 |
| Frequency (in Hz) | 50 |
| Speed (rpm) | 2870 |
| Head Minimum (in m) | 14 |
| Head Maximum (in m) | 22 |
| Discharge Minimum | 72 |
| Discharge Maximum | 372 |
| Discharge unit | lpm |
| Suction Size (in mm) | 50 |
| Delivery Size (in mm) | 32 |
| Impeller | Stainless Steel |
| Delivery Casing | Stainless Steel |
| Motor Body | Cast Iron |
| Pump Shaft | Stainless Steel |
| Sealing | Mechanical Seal |
| Certification/Accreditation | NA |
| Gross Weight (kg) | 19 |
| Net Contents | 1 Pumpset |
| Item Code | T11160061334 |
| Manufacturing location | Sanand, Gujarat |
| No. of Stages | 1 |
| Min. Submergence From Bottom (in mm) | NA |
| Max Solid Size (in mm) | NA |
| Air flow minimum | NA |
| Air flow maximum | NA |
| Air flow unit | NA |
| Vacuum minimum | NA |
| Vacuum maximum | NA |
| Vacuum unit | NA |
منتجات مشابهة
طلمباتKirloskar Brothers
Monobloc Pump, KSMB 129, 1 HP, Three Phase, 415 Volts, Size 40mm X 25mm
اطلب عرض سعر
Kirloskar Brothers
Monobloc Pump,-KDI-520 EE2, 5 HP, Three Phase, 415 Volts, Size 80mm X 80mm
اطلب عرض سعر
Kirloskar Brothers
Monobloc Pump, KSMB 116, 1 HP, Three Phase, 415 Volts, Size 40mm X 32mm
اطلب عرض سعر
Kirloskar Brothers

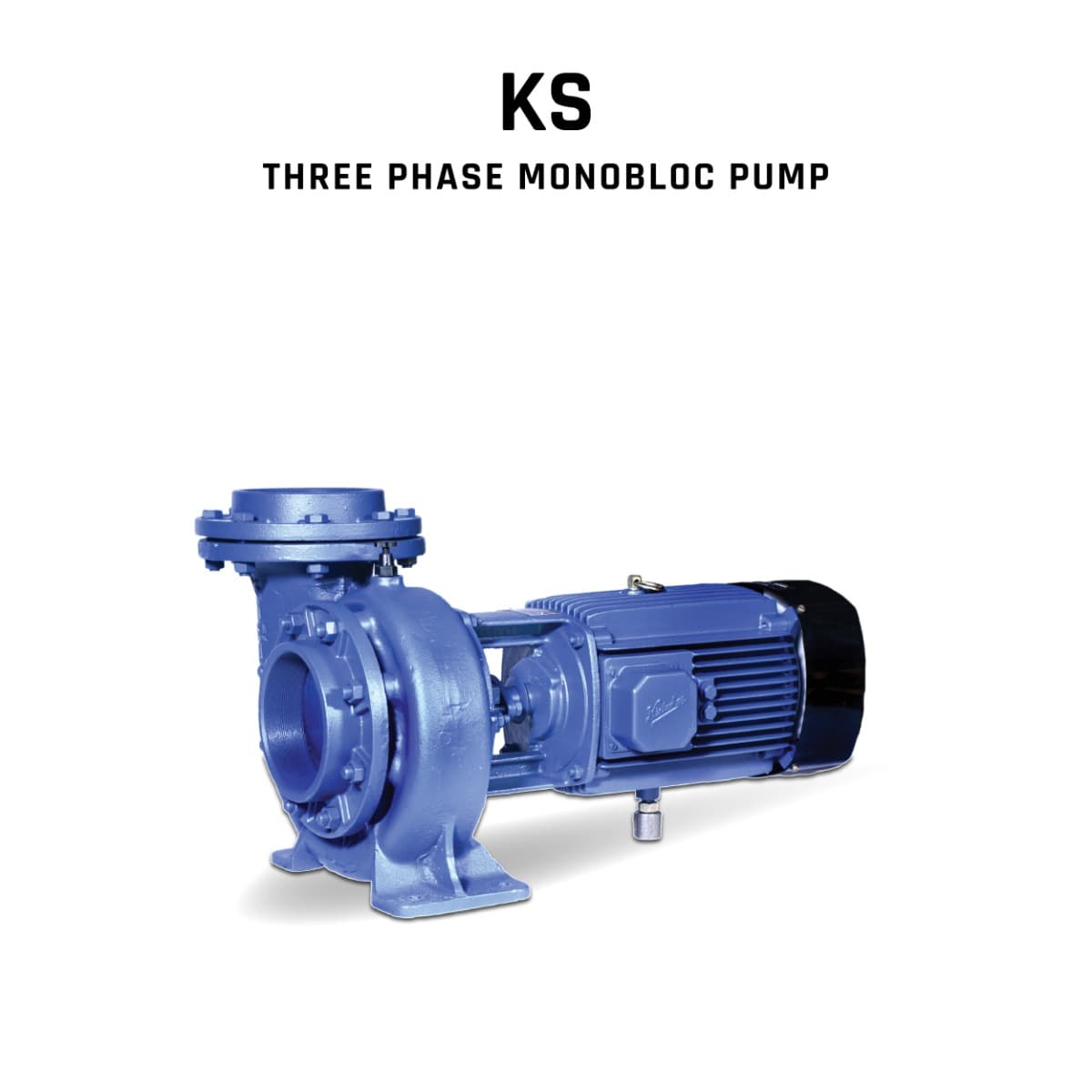

Monobloc Pump, KS-817+, 7.5 HP, Three Phase, 400 Volts, Size 100 mm x 100 mm
