Shallow Well Pump, LIFTER ULTRA 125, 1.0 HP, 220 Volts, Single Phase, Size 25 mm x 25 mm

Kirloskar Brothers

Shallow Well Pump, LIFTER ULTRA 125, 1.0 HP, 220 Volts, Single Phase, Size 25 mm x 25 mm

رقم القطعة: kirloskar-brothers-d11ag01002041038

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

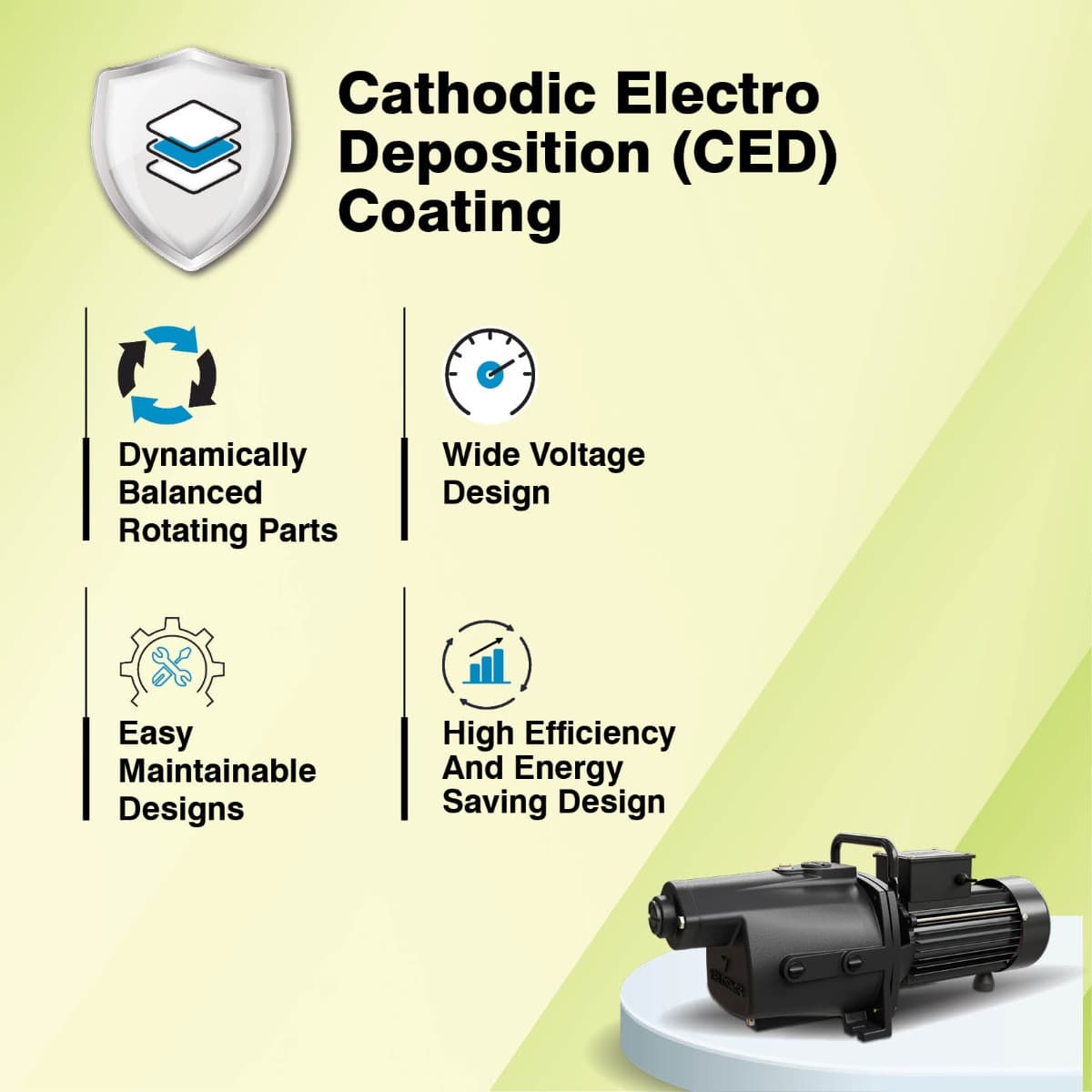

Overview LIFTER ultra pumps comprise a thermal oveload protector for protection of motor from overloading. Suitable for the voltage range 160 to 240 volts (Single Phase) , and are thus perfectly suited for pumping water from shallow wells and tanks, domestic water supply, lifting water to apartments and houses, lawn sprinklers and water transfer. Features - Inbuilt NRV design : Pumps are fitted with NRV that ensures efficient water flow and prevents backflow. The NRV design arrangement helps the pump to stay primed (filled with water) and ready to operate immediately when needed. - Inbuilt Suction flange : The suction flange arrangement eliminates pipe unions and fittings, reducing assembly time and plumbing costs. - High Efficiency and Energy Saving Design : Innovative design manufactured at a state-of-the-art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings. - High Grade F - Class Insulation : Robust design withstands extreme fluctuations which ensures the reliability and the safety of the equipment and enhances its life. - Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in case of low voltage. - Shielded Ball Bearing : The pumps are fitted with shielded ball bearing so no external lubrication is required throughout the life cycle and also ensure low noise level. - Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damage during the operation. Consistent performance is ensured by maintaining concentricity. - Easy Maintainable Design : Easy maintainable design and better interchangeability of components so that pumps can be serviced even at remote locations by semi-skilled technicians. - Handle to Enhance Grip and Portability : A handle attached to the pump allows users to carry the pump anywhere with ease, adding to its portability and convenience of use. - High Suction Lift : The pumps have suction lift capacity up to 8.5 metres with high head, allowing to pump water at high volumes for a variety of applications. - Enhanced Safety Features : All electrical parts of the pump are covered, which makes it safer to use. - Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with a uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.

المواصفات

Product SeriesLIFTER
Pump ModelLifter Ultra 125
Pump Type (Installation)Surface
Pump Type (Application)Shallow Well
Power (In HP)01.00
Phase1
Rated Voltage (Volts)220
Frequency (in Hz)50
Speed (rpm)2800

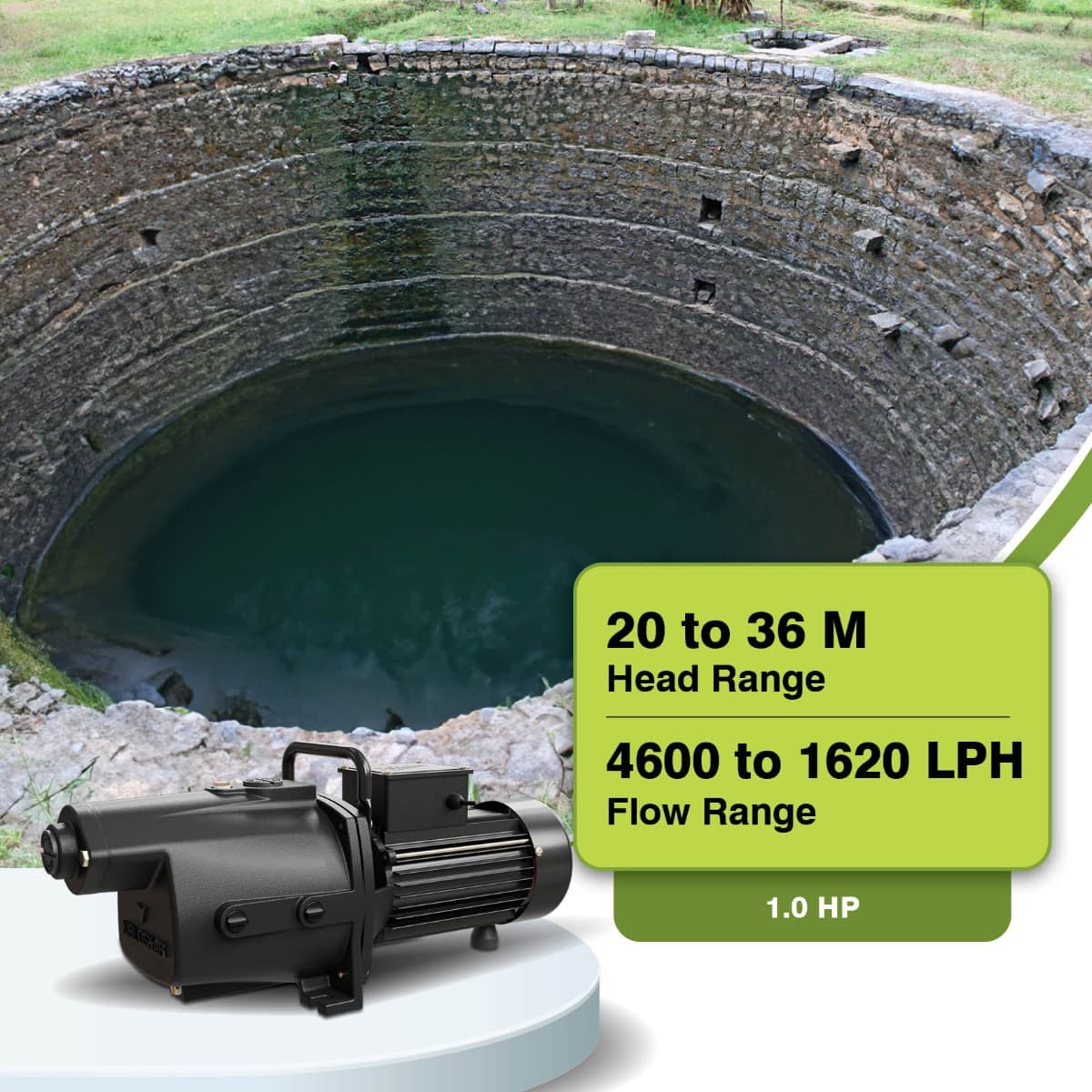

Head Minimum (in m)20
Head Maximum (in m)36
Discharge Minimum4600
Discharge Maximum1620
Discharge unitLPH
Suction Size (in mm)25
Delivery Size (in mm)25
ImpellerNORYL
Delivery CasingCAST IRON
Motor BodyAluminium
Pump ShaftCarbon Steel
SealingMech seal
Gross Weight (kg)18.5
Net Contents1 Pumpset
Item CodeD11AG01002041038
No. of Stages1
Min. Submergence From Bottom (in mm)SURFACE
Max Solid Size (in mm)CLEAR WATER
