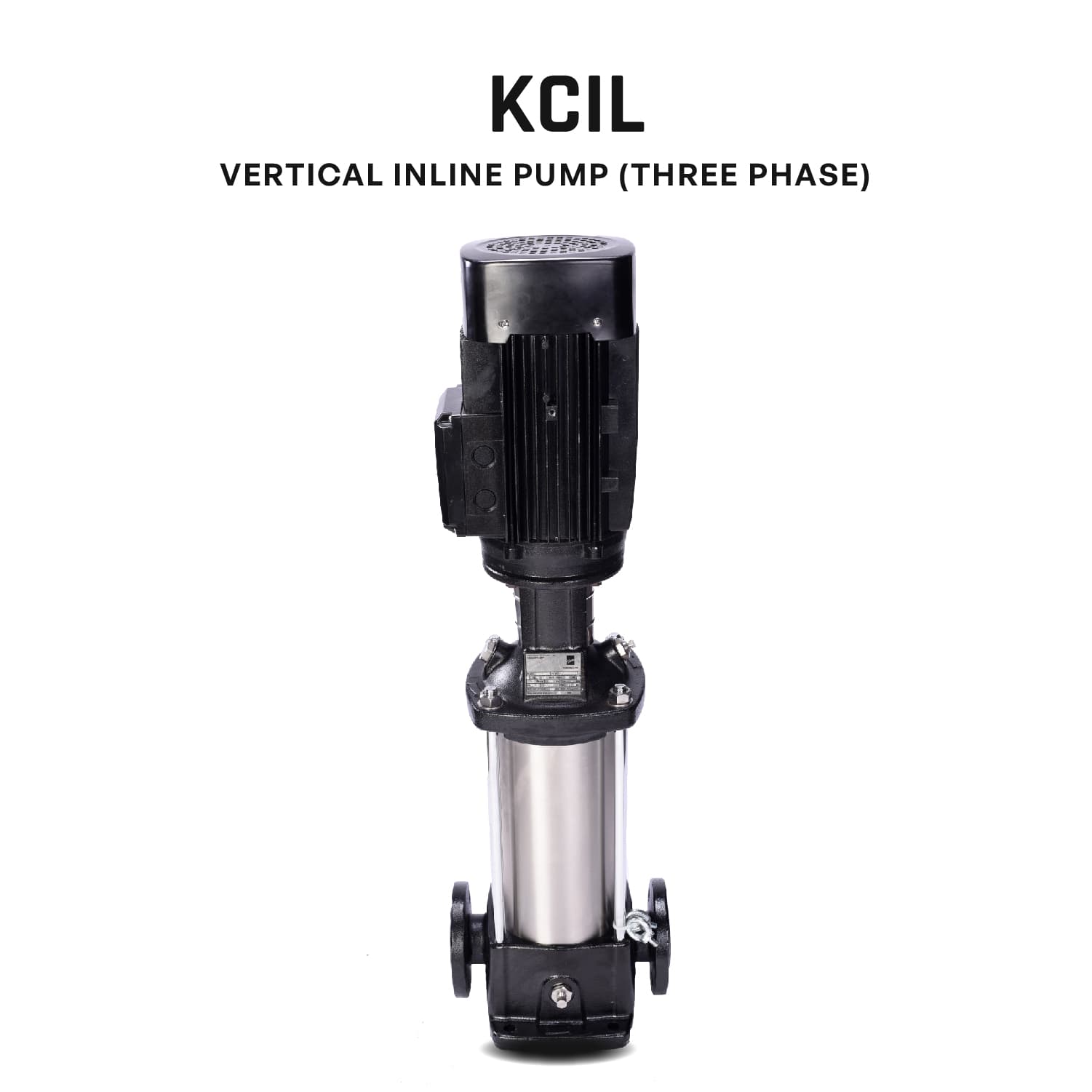

Vertical Inline Pump, KCIL10-10, 5 HP, Three Phase, 415 Volts, Size 42mm X 42mm
رقم القطعة: kirloskar-brothers-tl16010010a12211
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Overview Kirloskar Vertical Multistage Inline Pump, KCIL is a superior pump hydraulic coupled with IE2/IE3 motor to perform high efficiency, splined shaft gives good axiality, dynamically balanced parts get minimum vibration, protect components from damage, easily maintainable design and interchangeable components, suitable for horizontal application and used for building industry, fire fighting, Hydro pneumatic system, water treatment plant, dairy, food processing industry. Key Features Superior hydraulics due to advanced manufacturing processes provides efficiency at par with international standard Superior quality 6 holes Cartridge Type Mechanical Seal with high-quality graphite and hard alloy ensures better heat resistance wear resistance capacity, zero leakage, lower friction loss, will not wear the shaft, easy maintenance without opening pump and longer life Splined shaft made by cold extrusion technology with high surface strength provides better life and good axiality The pump has been designed to deliver large volumes of water for high head applications, helping customers to achieve high turnaround time and productivity Motor with ball bearings are suitable for horizontal installation for water transfer at high heads in a residential complex.
المواصفات
| Product Series | KCIL |
|---|---|
| Pump Model | KCIL10-10 |
| Pump Type (Installation) | Surface |
| Pump Type (Application) | Vertical Inline Pump |
| Power (In HP) | 05.00 |
| Phase | 3 |
| Rated Voltage (Volts) | 415 |
| Frequency (in Hz) | 50 |
| Speed (rpm) | 2900 |
| Head Minimum (in m) | 66 |
| Head Maximum (in m) | 102 |
| Discharge Minimum | 33 |
| Discharge Maximum | 200 |
| Discharge unit | lpm |
| Suction Size (in mm) | 42 |
| Delivery Size (in mm) | 42 |
| Impeller | Stainless Steel |
| Delivery Casing | Cast Iron |
| Motor Body | Aluminium |
| Pump Shaft | Stainless Steel |
| Sealing | Mechanical Seal |
| Gross Weight (kg) | 81 |
| Net Contents | 1 Pumpset |
| Item Code | TL16010010A12211 |
| Manufacturing location | Sanand, Gujarat |
| No. of Stages | 10 |
