Multiflo® MF Diesel-driven Pump Units
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف

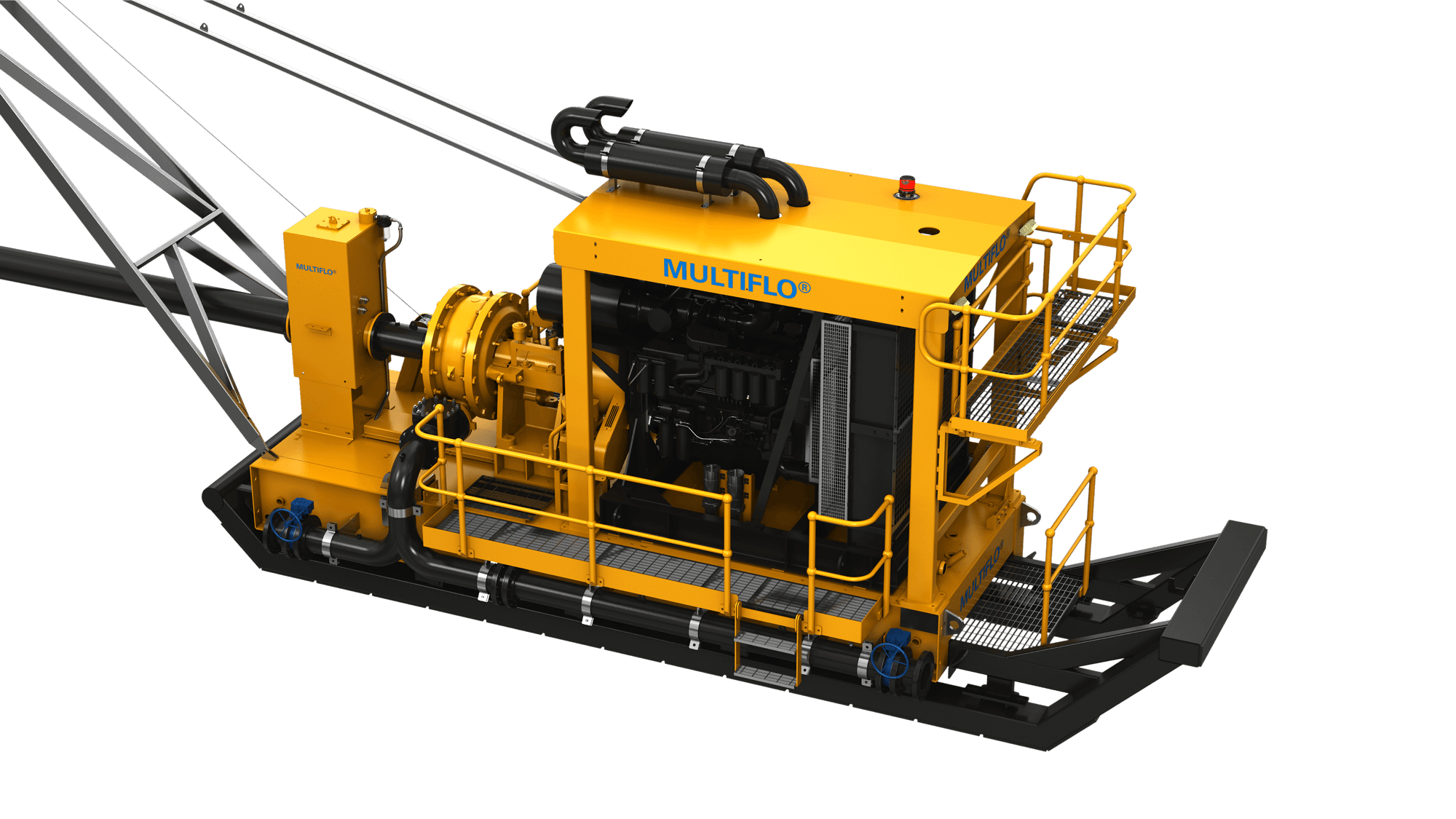

The Multiflo® MF pumps range is especially engineered to operate in variable and harsh environments while maintaining efficiency at both high-volume flow and extra-high heads. Each pump unit is powered by a diesel engine, and features a stainless steel non-return valve that allows full flow with minimal restriction. With its overall robust build, the Multiflo® MF pump unit is suited to a variety of applications including mining, quarrying, industrial, water transfer and environmental water management applications. Compared to other dewatering units, the Multiflo® MF pump series offers the following benefits: Close-coupled pump assembly to ensure accurate pump alignment and improved wear life Features a pump shaft fitted with a stainless steel shaft sleeve to protect the shaft from wear across variable applications and operating conditions Features an auto vacuum pump priming system to ensure continuous and reliable start up time after time Its heavy-duty pump unit base has an inbuilt bunded fuel cell for ease of movement around site The two-pack epoxy paint system helps to provide protection in harsh working environments Features a heavy-duty engine canopy to protect the unit from environmental impacts and debris For more information about our range of Multiflo® dewatering pump units, please get in touch with our team.
المواصفات
| Brand line | Multiflo® |
|---|---|
| Product type | Dewatering Pumps, Horizontal Dewatering Pumps, Pumps |
| Catalogue category | Horizontal Dewatering Pumps, Dewatering Pumps, Pumps |
| MATERIALS | 316SS / H7a / CD4Mcu |
| FLOW RATE | From 250m3/h to 2200m3/h |
| DISCHARGE HEAD | From 75m to 220m |
| DISCHARGE SIZE | From 150mm to 250mm |
| SOLIDS HANDLING | From 30mm to 60mm |
| POWER | From 80kW to 800kW |
| SEALING | Gland / Mechanical (SiC on SiC) |
| ENGINE TYPE | CAT / Cummins |
| FUEL CELL | From 800 Litres to 2800 Litres |
| MOUNTING CONFIGURATIONS | Open Skid, Pontoon and Custom options |
| SELF PRIMING SYSTEM | Vacuum |
| VOLUTE CASING PRESSURE | From 1400kPa to 3500kPa |
منتجات مشابهة
طلمبات
Weir

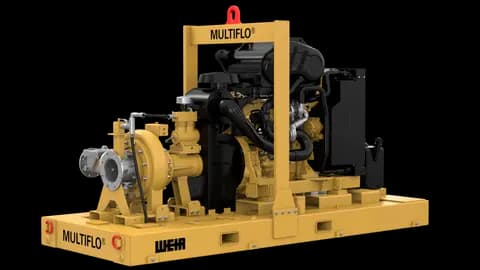

Multiflo® LF Diesel-driven Pump Units
اطلب عرض سعر
Weir

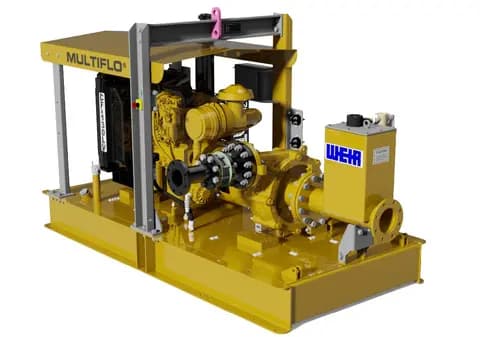

Multiflo® CF Diesel-driven Pump Units
اطلب عرض سعر
Weir
Multiflo® RF Diesel-driven Pump Units
اطلب عرض سعر
Weir

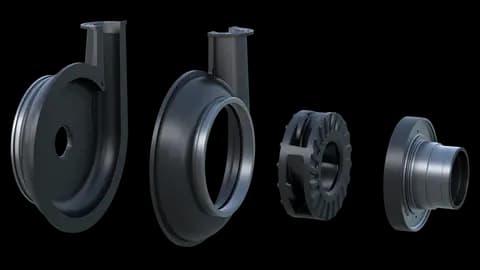

Genuine Warman® Centrifugal Pump Parts and Spares
اطلب عرض سعر
Weir
Multiflo® SJG Portable Submersible Pump
اطلب عرض سعر
Weir

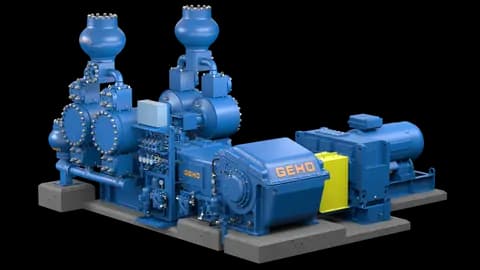

GEHO® ZPM Duplex Piston Diaphragm Pump
اطلب عرض سعر
Weir
WARMAN® SHW-XTR heavy-duty submersible sump and slurry pumps
اطلب عرض سعر
Weir

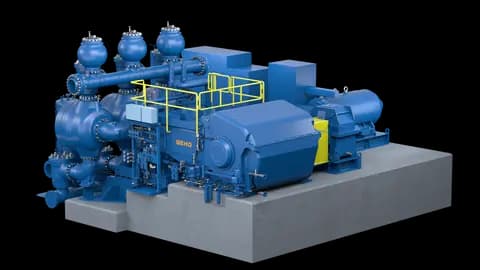

GEHO® TZPM Triplex Piston Diaphragm Pump
