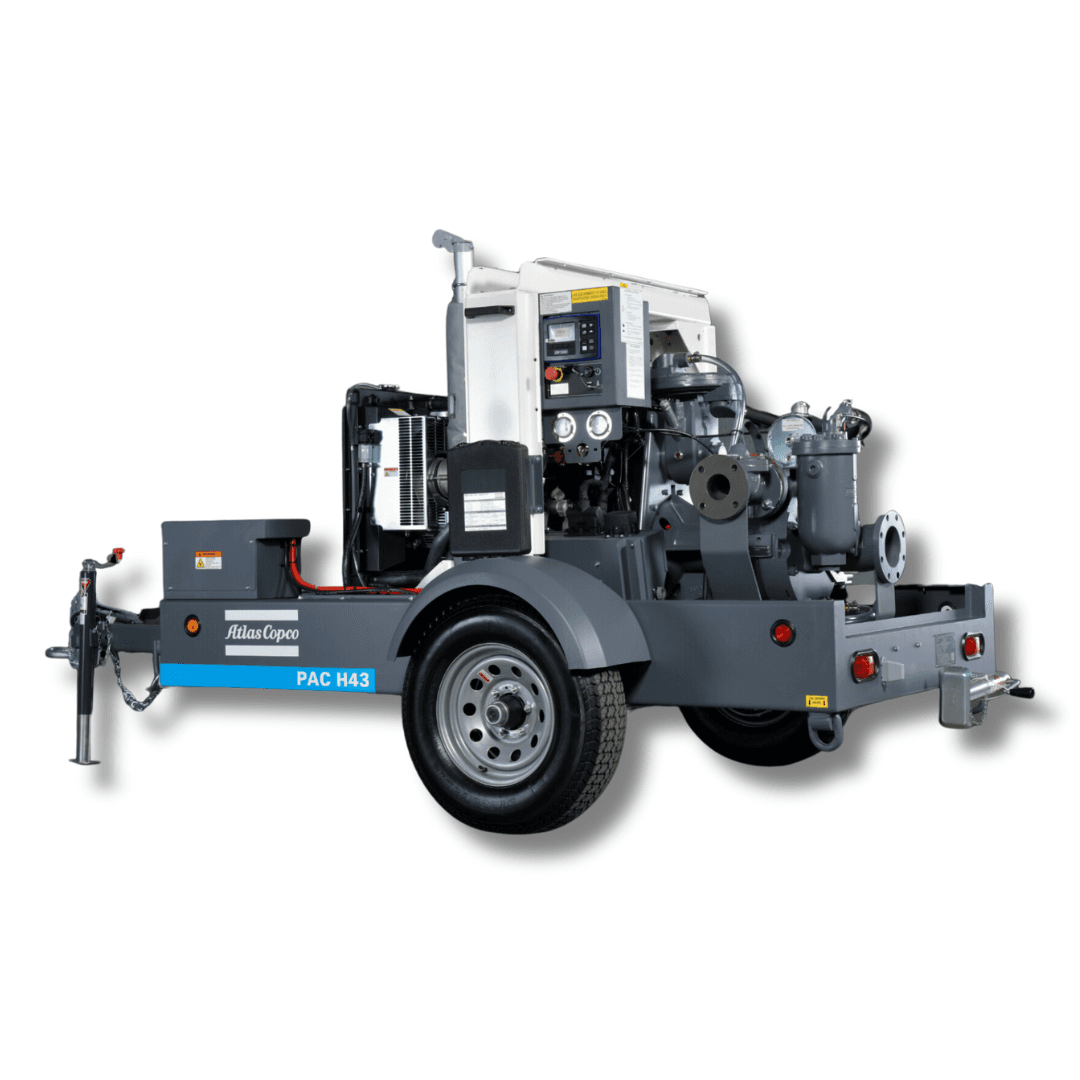

PAC H43C KD 74HP
رقم القطعة: PACH43CKD74HP
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PAC H43C KD 74HP
المواصفات
| Model | PAC H43C KD 74HP |
|---|---|
| Series | PAC |
| Vacuum pump Type | Diaphragm |
| Nominal Air Capacity | 29.4 cfm |
| Pump / Model | PAC H43C |
| Pump / Qmax | 660 USgpm |
| Pump / Hmax | 302 ft |
| Pump / Q max eff. | 570 USgpm |
| Pump / Eff. max | 62 % |
| Pump / Suction port | 4" Flange - ANSI class 150 |
| Pump / Delivery port | 3" Flange - ANSI class 150 |
| Pump / Impeller type | Semi-open, 4 vane |
| Pump / Impeller diameter | 12" |
| Pump / Solids handling | 3/4" |
| Priming system | Material |
| Vacuum pump | Coatings |
| Max vacuum | - 26.6 inHg |
| Speed | Various |
| Impeller Dia. | 12" / 305 mm |
| Style | Semi-open |
| Solids Dia. | 3/4" / 20 mm |
| Ns | 2600 rpm |
| Suction | 4" / 100 mm |
| Discharge | 3" / 76 mm |
| No. Vanes | 4 |
| Pump / Material | Engine system voltage |
| Pump / Casing | ASTM A536 80-55-06 ductile iron |
| Pump / Impeller | ASTM A536 80-55-06 ductile iron |
| Pump / Engine power rating | 74 HP |
| Control panel / Model | PW 1000 |
| Control panel / Wear plate | ASTM A48 Class 20 grey iron |
| Control panel / Shaft | SAF 2205 stainless steel |
| Control panel / Mechanical Seal faces | Silicon carbide Vs Silicon carbide |
| Control panel / Elastomers | VITON |
| Control panel / Lubrication | Oil |
| Control panel / Check Valve | ASTM A536 ductile iron + NBR rubber flap |
| Arrangement / Separator | Aluminium alloy |
| Drives / Fuel tank capacity | 60 USG |
| Drives / Fuel consumption | 3.7 US Gal/hr @2,600 rpm @62% eff. |
| Drives / Dry weight | 3,215 lbs |
| Drives / Wet weight | 3,665 lbs |
