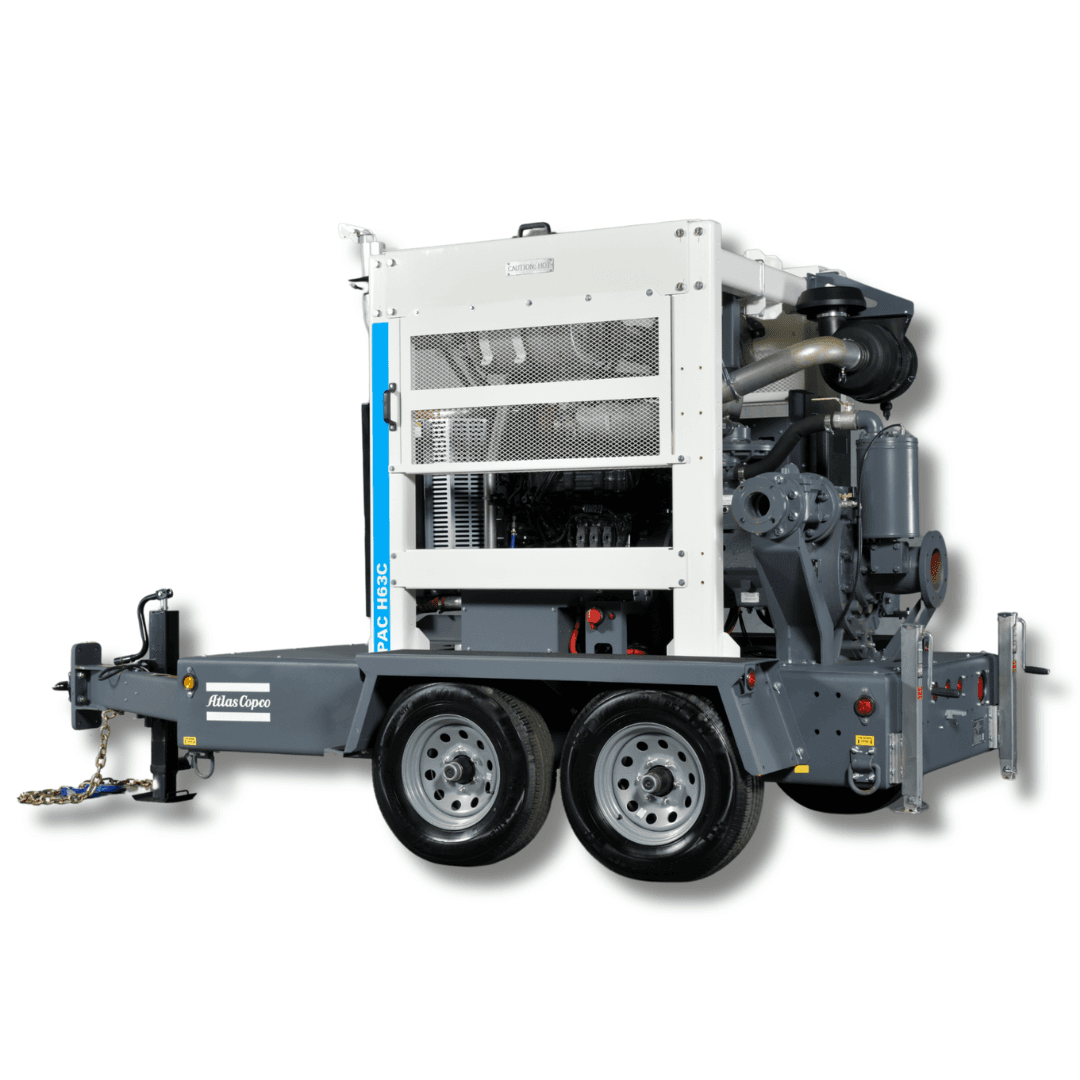

PAC H63
رقم القطعة: PACH63
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PAC H63
المواصفات
| Model | PAC H63 |
|---|---|
| Series | PAC |
| Engine / Displacement | 275 in³ |
| Pump / Qmax | 1,100 USgpm |
| Pump / Hmax | 460 ft |
| Pump / Q max eff. | 1,240 USgpm |
| Pump / Eff. max | 66 % |
| Pump / Suction port | 6" Flange - ANSI class 150 |
| Pump / Delivery port | 3" Flange - ANSI class 80 |
| Pump / Impeller type | Enclosed, 4 vane |
| Pump / Impeller diameter | 17" |
| Pump / Solids handling | 0.75" |
| Material / Casing | ASTM A536 ductile iron |
| Material / Impeller | ASTM A743 CA6NM |
| Material / Wear ring | ASTM A48 Class 20 grey iron |
| Material / Shaft | AISI 630 stainless steel |
| Material / Mechanical Seal faces | Silicon carbide Vs Silicon carbide |
| Material / Elastomers | VITON |
| Speed | Various |
| Impeller Dia. | 17" / 440 mm |
| Style | Enclosed |
| Solids Dia. | 0.75" / 20 mm |
| Ns | 2,100 rpm |
| Suction | 6" / 150 mm |
| Discharge | 3" / 80 mm |
| No. Vanes | 4 |
| Material / Wear Plate | ASTM A48 Class 20 Grey Iron + NBR rubber coating |
| Material / Check Valve | ASTM A536 ductile iron + NBR rubber flap |
| Material / Separator | Fabricated Steel |
| Vacuum pump / Vacuum pump type | Diaphragm |
| Vacuum pump / Nominal air capacity | 50.0 cfm |
| Vacuum pump / Max vacuum | - 26.6 inHg |
| Vacuum pump / Drives | Link belt |
| Engine / Make | John Deere |
| Engine / Type | Diesel turbo common rail |
| Technical data / Material | ASTM A36 steel |
| Technical data / Coatings | Epoxy powder, average thickness of 3 MIL |
| Technical data / Features | Lifting beam. hinge door. Protected PE fuel tank |
| Technical data / Dry weight | 7,213 lbs |
| Engine / No. cylinders | 4 |
| Engine / Cooling | Liquid with radiator |
| Engine / Rpm type | Variable |
| Engine / Max operating speed | 2100 rpm |
| Engine / US emissions | EPA Tier 4F |
| Engine / Starting | Electric |
| Engine / Engine system voltage | 12 V |
| Engine / Engine Power rating | 173 HP |
| Technical data / Battery | Acid charge Pb-Ca maintenance free, 12V - 1150 CCA |
| Technical data / Fuel tank capacity | 173 USG |
| Technical data / DEF tank capacity | 9.2 USG |
| Technical data / Fuel consumption | 7.8 US Gal/hr @2,100rpm |
| Technical data / Wet weight | 8,763 lbs |
