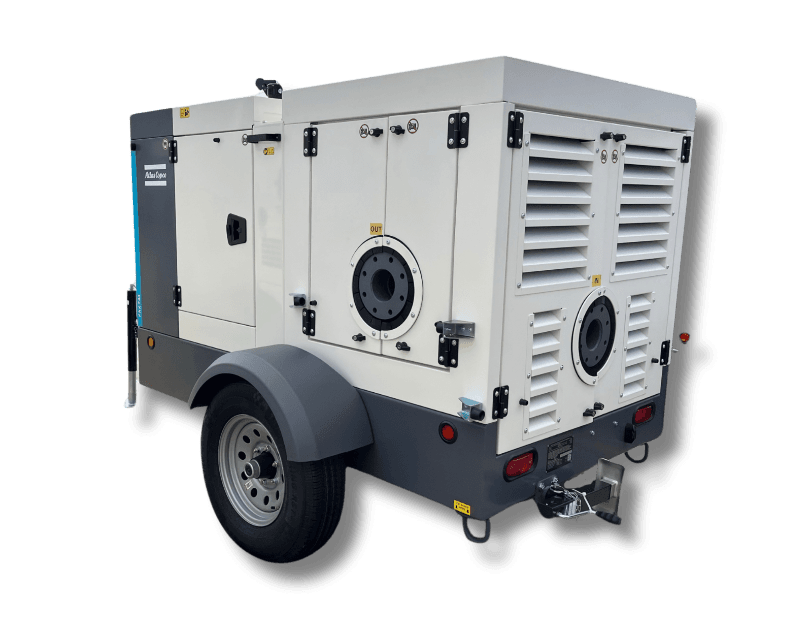

PAX F44
رقم القطعة: PAXF44
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PAX F44
المواصفات
| Model | PAX F44 |
|---|---|
| Series | PAX |
| Vacuum pump Type | Diaphragm |
| Nominal Air Capacity | 50.0 cfm |
| Pump / Model | PAX F44 |
| Pump / Qmax | 950 USgpm |
| Pump / Hmax | 120 ft |
| Pump / Q max eff. | 715 USgpm |
| Pump / Eff. max | 50 % |
| Pump / Suction port | 4" Flange - ANSI class 150 |
| Pump / Delivery port | 4" Flange - ANSI class 150 |
| Pump / Impeller type | Semi-open, 2 vane |
| Pump / Impeller diameter | 9.5" |
| Pump / Solids handling | 3" |
| Coatings | Epoxy powder, average thickness of 3 MIL |
| Priming system | Material |
| Max vacuum | - 23.6 inHg |
| Drives / Outlet flange | Inlet flange: |
| Speed | Various |
| Impeller Dia. | 9.5" / 243 mm |
| Style | Semi-open |
| Solids Dia. | 3" / 76 mm |
| Ns | 1900 rpm |
| Suction | 4" / 100 mm |
| Discharge | 4” / 100 mm |
| No. Vanes | 2 |
| Pump / Material | Engine system voltage |
| Pump / Casing | ASTM A536 SG iron |
| Pump / Impeller | ASTM A351 Stainless |
| Pump / Engine power rating | 49 HP |
| Control panel / Wear ring | ASTM A351 Stainless |
| Control panel / Model | PW 1000 |
| Control panel / Wear plate | ASTM A351 Stainless |
| Control panel / Shaft | ASTM A276 Stainless |
| Control panel / Mechanical Seal faces | Silicon carbide Vs Silicon carbide |
| Control panel / Elastomers | VITON |
| Control panel / Check Valve | ASTM A536 ductile iron + NBR rubber flap |
| Arrangement / Separator | Steel |
| Drives / Fuel tank capacity | 90 USG |
| Drives / Fuel consumption | 1.6 US Gal/hr @2100 rpm @BEP |
| Drives / Dry weight | 3086 lbs |
| Drives / Wet weight | 3747 lbs |
| Control panel / Claw | Stainless 316 - ASTM A351 Stainless |
