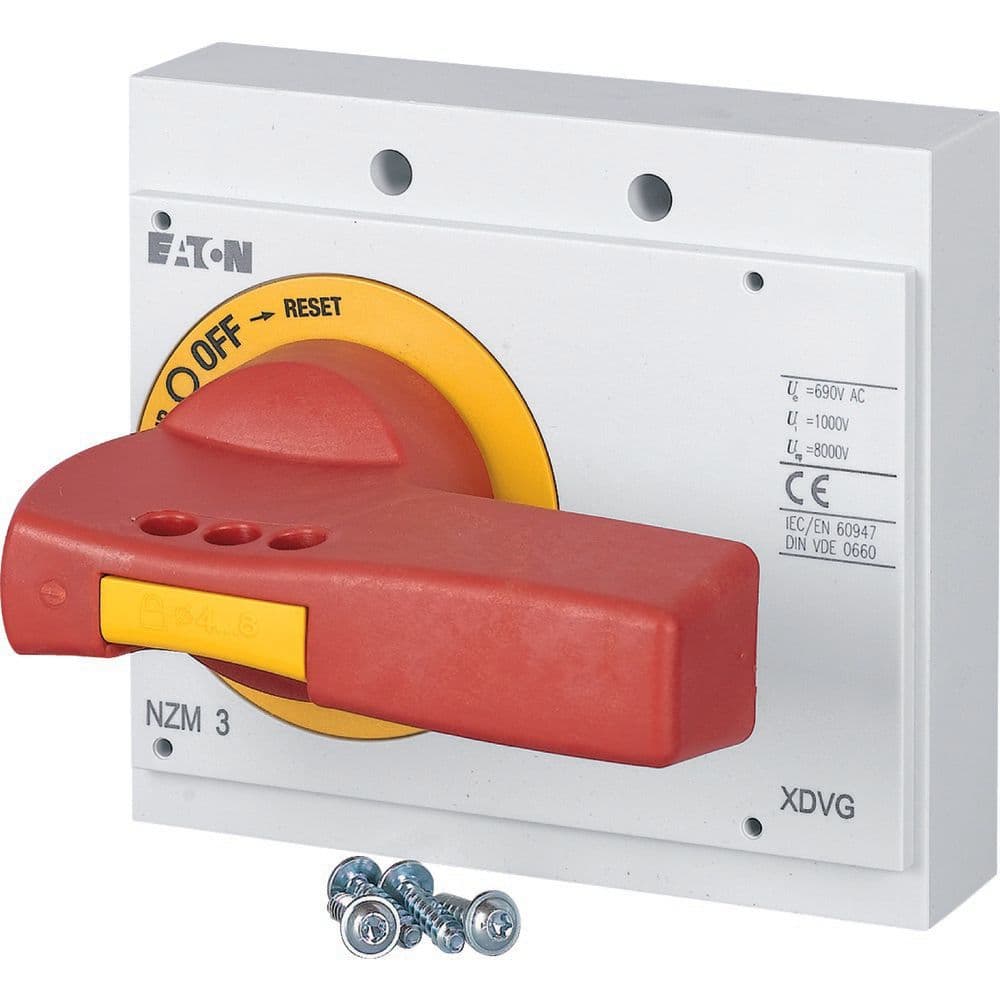

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 165717

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresComplete with rotary driveCan be combined with insulating surroundMakes it possible to operate the switch with a rotational movement and provides locking facilities
Product NameEaton Moeller series NZM operating element
Catalog Number165717
Model CodeNZM3-XDVGR
EAN4015081622351
Product Length/Depth108 mm
Product Height124 mm
Product Width140 mm
Product Weight0.775 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsCSA (Class No. 1437-01) UL (Category Control Number DIHS) IEC60947 UL (File No. E140305) CSA (File No. 22086) UL489 CSA certified CSA-C22.2 No. 5-09 CE marking UL listed
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.165717.html
Suitable forSwitch disconnector Power circuit breaker Emergency stop
Used withNZM3(-4), PN3(-4), N(S)3(-4)
FeaturesLockable Red-yellow for emergency switching off
TypeRotary handle on circuit-breaker
Fitted with:Padlock Extension shaft
FrameNZM3
