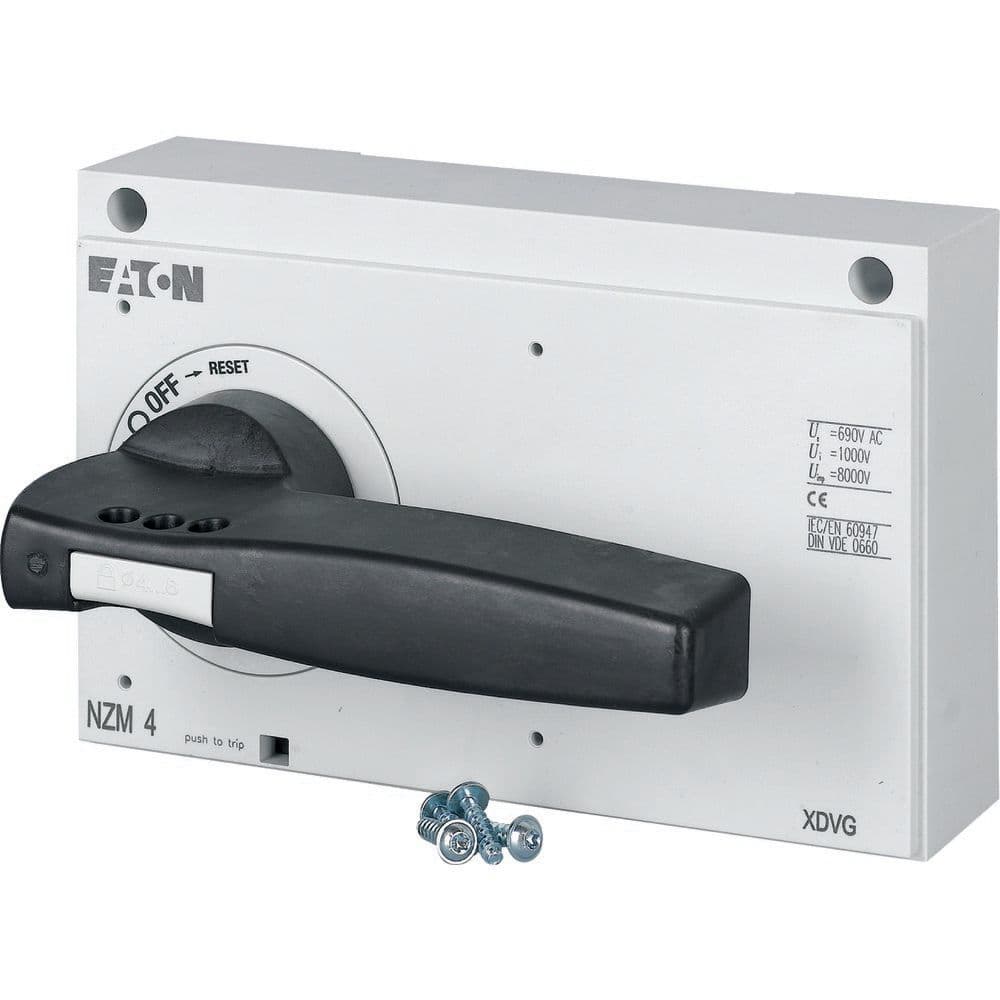

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 165718

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresComplete with rotary driveCannot be combined with insulating surroundMakes it possible to operate the switch with a rotational movement and provides locking facilities
Product NameEaton Moeller series NZM operating element
Catalog Number165718
Model CodeNZM4-XDVG
EAN4015081622368
Product Length/Depth130 mm
Product Height135 mm
Product Width210 mm
Product Weight1.193 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsUL489 UL (File No. E140305) CE marking CSA (Class No. 1437-01) IEC60947 UL listed CSA (File No. 22086) UL (Category Control Number DIHS) CSA-C22.2 No. 5-09 CSA certified
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.165718.html
Suitable forSwitch disconnector Power circuit breaker
Used withNZM4(-4), N(S)4(-4)
FeaturesLockable Standard: black / gray
TypeRotary handle on circuit-breaker
Fitted with:Padlock Extension shaft
FrameNZM4
