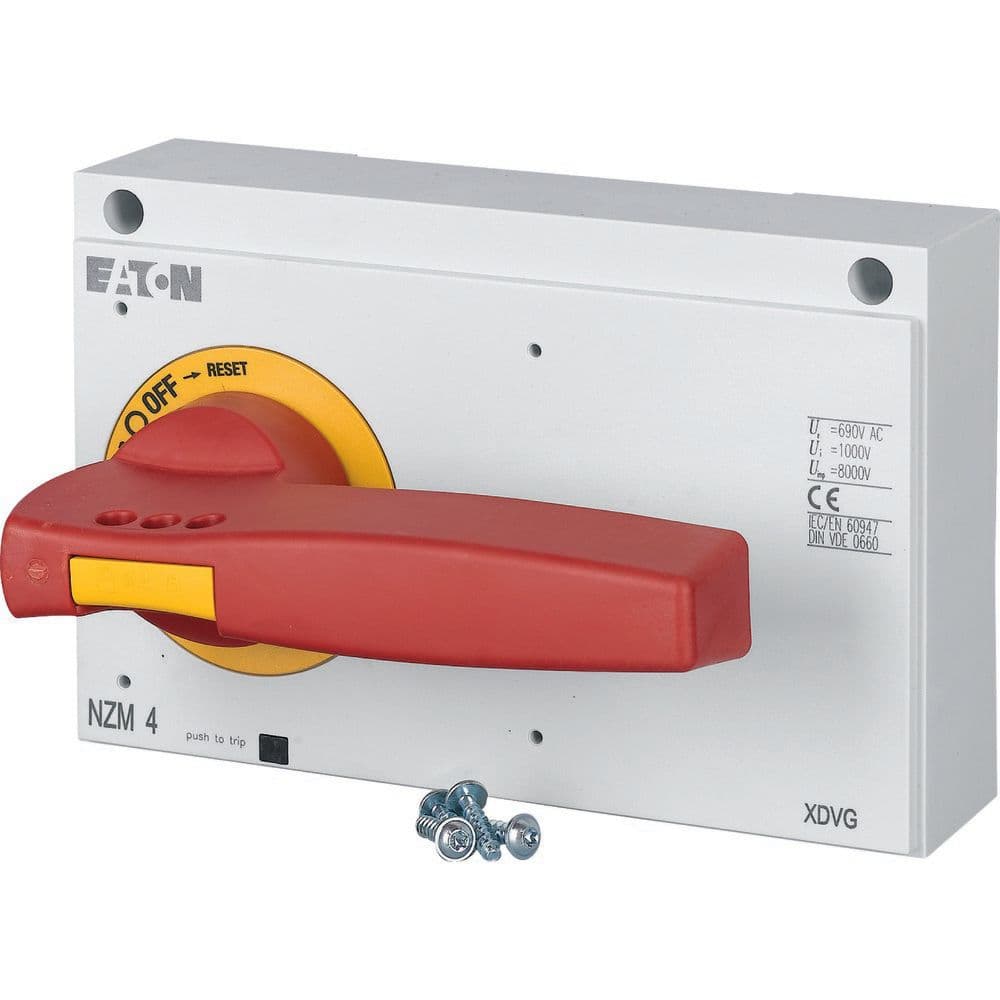

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 165719

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresComplete with rotary driveCannot be combined with insulating surroundMakes it possible to operate the switch with a rotational movement and provides locking facilities
Product NameEaton Moeller series NZM operating element
Catalog Number165719
Model CodeNZM4-XDVGR
EAN4015081622375
Product Length/Depth130 mm
Product Height135 mm
Product Width210 mm
Product Weight1.176 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsCSA (File No. 22086) UL (Category Control Number DIHS) CSA-C22.2 No. 5-09 CSA certified CSA (Class No. 1437-01) CE marking UL489 UL listed UL (File No. E140305) IEC60947
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.165719.html
Suitable forPower circuit breaker Switch disconnector Emergency stop
Used withNZM4(-4), N(S)4(-4)
FeaturesRed-yellow for emergency switching off Lockable
TypeRotary handle on circuit-breaker
Fitted with:Padlock
FrameNZM4
