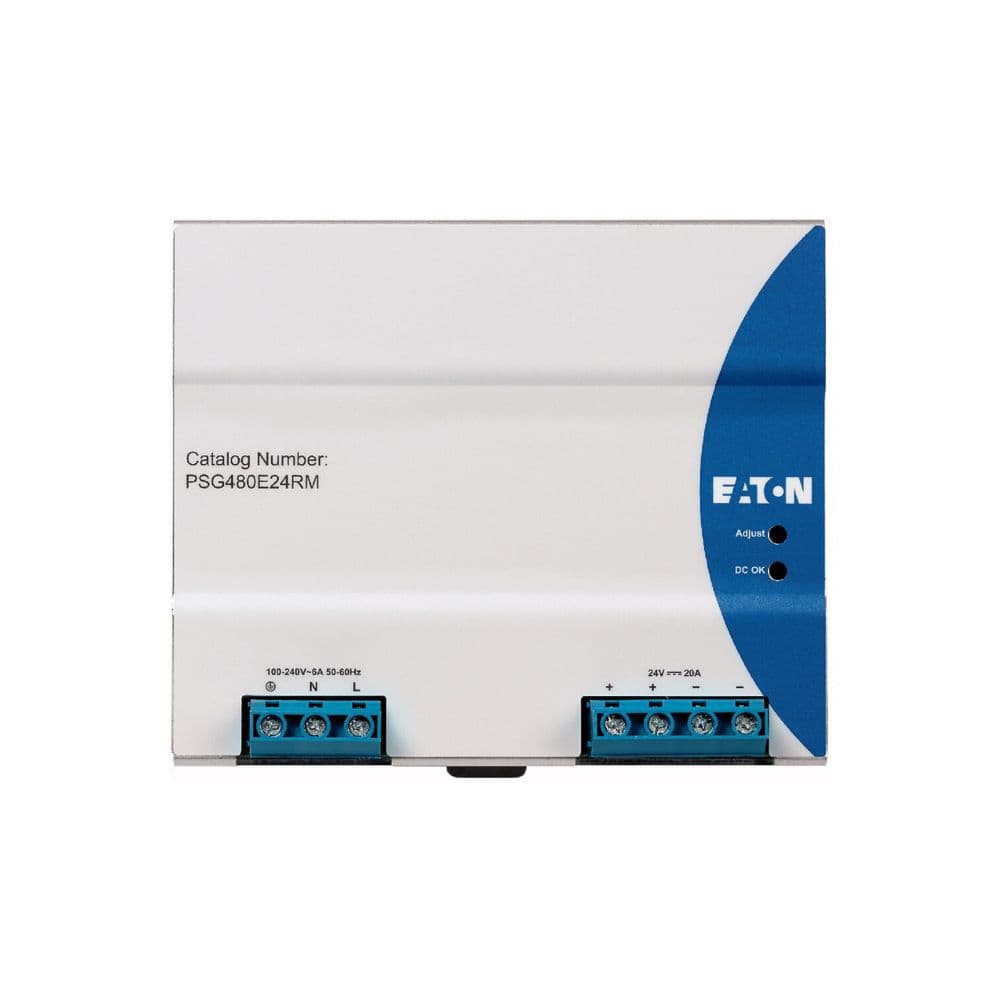

Eaton PSG power supply unit

Eaton

Eaton PSG power supply unit

رقم القطعة: 172894

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton PSG power supply unit

المواصفات

Product NameEaton PSG power supply unit
Catalog Number172894
Model CodePSG480E24RM
EAN4015081694822
Product Length/Depth180 mm
Product Height170 mm
Product Width165 mm
Product Weight1.49 kg
CertificationsEN 55011 ITE: EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024 Electrical Safety (of IT equipment) : SIQ to EN60950-1, UL/c-UL recognized to UL 60950-1, CSA-C22.2 No. 60950-1, CB scheme to IEC 60950-1 Mains harmonics limitation: EN 601000-3-2 RoHS 2014/30/EU 2014/35/EU Electrical equipment of machines: IEC60204-1 (Overvoltage category III) SELV (EN 60950) EN 50178/IEC 62103 IEC/EN 61204-3 Class2: UL1310 and CSA-C22.2 No. 223 PELV (EN 60204) Protection against electric shock: DIN 57100-410 UL 508 IEC Rated CSA Std. C22.2 EN Listed EAC
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.172894.html
Shock resistance30 g (300 m/s²) in all directions, Mechanical, According to IEC/EN 60068-2-27
Vibration resistance10 - 500 Hz at 30 m/s² (3 G max ) for 60 min. in X-axis, Y-axis, Z-axis directions, (IEC/EN 60068-2-6)
