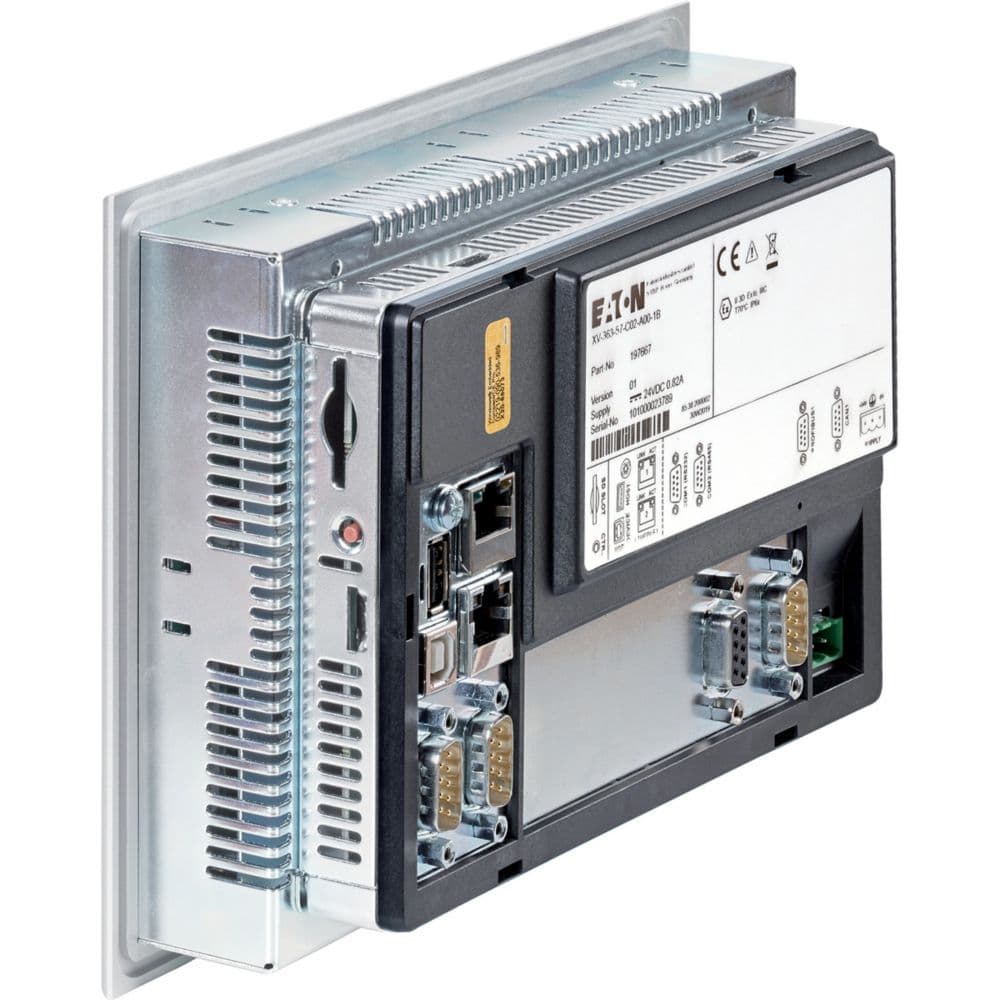

Eaton XV-363 Touch panel

Name: Eaton XV-363 Touch panel
Brand: Eaton
SKU: 197667

رقم القطعة: 197667

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton XV-363 Touch panel

المواصفات

Ambient operating temperature - max	50 °C
Ambient operating temperature - min	0 °C
Ambient storage temperature - max	60 °C
Ambient storage temperature - min	-20 °C
Climatic proofing	Dry heat to IEC 60068-2-2 Damp heat, constant, to IEC 60068-2-3 Cold to EN 60068-2-1
Functions	Process default value (input) possible Process value representation (output) possible Additional software components, loadable
Product Name	Eaton XV-363 Touch panel
Catalog Number	197667
Model Code	XV-363-57-C02-A00-1B
EAN	7640130099364
Product Length/Depth	212 mm
Product Height	60 mm
Product Width	156 mm
Product Weight	1.2 kg
Certifications	IEC/EN 61131-2 EN 50178 EAC
Source URL	https://www.eaton.com/gb/en-gb/skuPage.197667.html
Catalog Notes	Current consumption at 24 V DC
Features	Fanless CPU and system cooling, natural convection-based passive cooling PLC function can be fitted by user Portrait format USB Host RS485 Ethernet interface RS232 CAN USB device Slot for SD card
Type	HMI (SPS function, retrofittable)
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Please enquire
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Meets the product standard's requirements.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP20, rear (according to EN 60529-1)
Built-in depth	63 mm
Mounting method	Flush mounting Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18")
Model	Metal enclosure and glass front in aluminum frame
Fitted with:	Numeric keyboard 1 x USB host 2.0 (built-in interface) Color display 1 x CAN (built-in interfaces) MPI interface 2 x Ethernet 10/100 Mbps (built-in interface) 1 x USB device (built-in interface) Alpha numeric keyboard 1 x PROFIBUS (built-in interface) 1 x RS232 (built-in interface) 1 x RS485 (built-in interface) Message indication Message system (incl. buffer and confirmation) Recipes
Shock resistance	15 g, 11 ms, Mechanical
Operating temperature - max	50 °C
Operating temperature - min	0 °C
Heat dissipation capacity Pdiss	0 W
Heat dissipation per pole, current-dependent Pvid	0 W
Static heat dissipation, non-current-dependent Pvs	19.5 W
Product category	XV-300
Degree of protection (front side)	IP65 NEMA 12
Voltage type	DC
Power consumption	Max. 19.5 W 17 W
Memory capacity	512,000 kByte
Memory	Flash: 1 GByte SLC NVRAM: 128kByte Retain DRAM: 512 MByte RAM SD card, Type: SDSC, SDHC (external memory)
Relative humidity	10 - 95 % (non-condensing)
Environmental conditions	Condensation: Non-condensing
Protocol	Other bus systems TCP/IP CAN EtherNet/IP PROFIBUS MODBUS EtherCAT
Fuse type	Built-in fuse (not accessible)
Air pressure	795 - 1080 hPa (operation)
Battery runtime	Back-up of real-time clock: BR 2330, non-replaceable (soldered)
Number of HW-interfaces (industrial ethernet)	2
Number of HW-interfaces (other)	3
Number of HW-interfaces (parallel)	0
Number of HW-interfaces (RS-232)	1
Number of HW-interfaces (RS-422)	0
Number of HW-interfaces (RS-485)	1
Number of HW-interfaces (USB)	2
Number of HW-interfaces (wireless)	0
Number of interfaces (PROFINET)	0
Interference immunity	According to EN 61000-6-2
Processor	ARM Cortex-A9 800 MHz
Supply voltage at AC, 50 Hz - max	0 VAC
Supply voltage at AC, 50 Hz - min	0 VAC
Supply voltage at AC, 60 Hz - max	0 VAC
Supply voltage at AC, 60 Hz - min	0 VAC
Supply voltage at DC - max	30 VDC
Supply voltage at DC - min	19.2 VDC
Interfaces	USB 2.0 host (not galvanically isolated) RS485 (not galvanically isolated, 9-pin SUB-D plug, UNC) CAN (not galvanically isolated, 9-pin SUB-D plug, UNC) RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC) 10/100 Mbps Ethernet connection USB 2.0 device (not galvanically isolated)
Voltage dips	≤ 10 ms from rated voltage (24 V DC) 5 ms from undervoltage (19.2 V DC)
Width of the front	212.2 mm
Resolution	640 x 480 px
Display size	115 x 86 mm 4:3
Backup time	10 years, typ. (time at zero voltage)
Front height	156.2 mm
Number of buttons (programmable function)	0
Number of buttons with LED	0
Number of grey-scales/blue-scales of display	0
Operating system	Windows Embedded Compact 7 Pro
Software	GALILEO, Visualization software, Engineering XSOFT-CODESYS-3, PLC-Programming software, Engineering XSOFT-CODESYS-2, PLC-Programming software, Engineering XSOFT-CODESYS, Visualization software, Engineering
Display contrast ratio	500:1
Number of slots	1 (for SD-Card)
Display type	Laminated safety glass, anti-glare in aluminum frame TFT Color display, TFT
Number of colors of the display	65536
RoHs conformity	Yes
Touch technology	Single-touch display Infrared touch Laminated safety glass, non-reflective, Infrared touch protective screen
Number of HW-interfaces (serial TTY)	0
Number of online/runtime languages	100
Number of password levels	200
Number of pixels (horizontal)	640
Number of pixels (vertical)	480
Number of system buttons	1
Screen size (diagonal)	5.7 in
Permissible voltage	19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %) 35 V DC (for a duration of < 100 ms) 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) 19.2 - 30 V DC, absolute with ripple
Rated operational voltage	24 V DC (power-supply - safety extra low voltage)
Communication interface	PROFIBUS-DP, not galvanically isolated, 9 pole SUB-D socket, UNC
Radio interference class	Class A (EN 55011)
