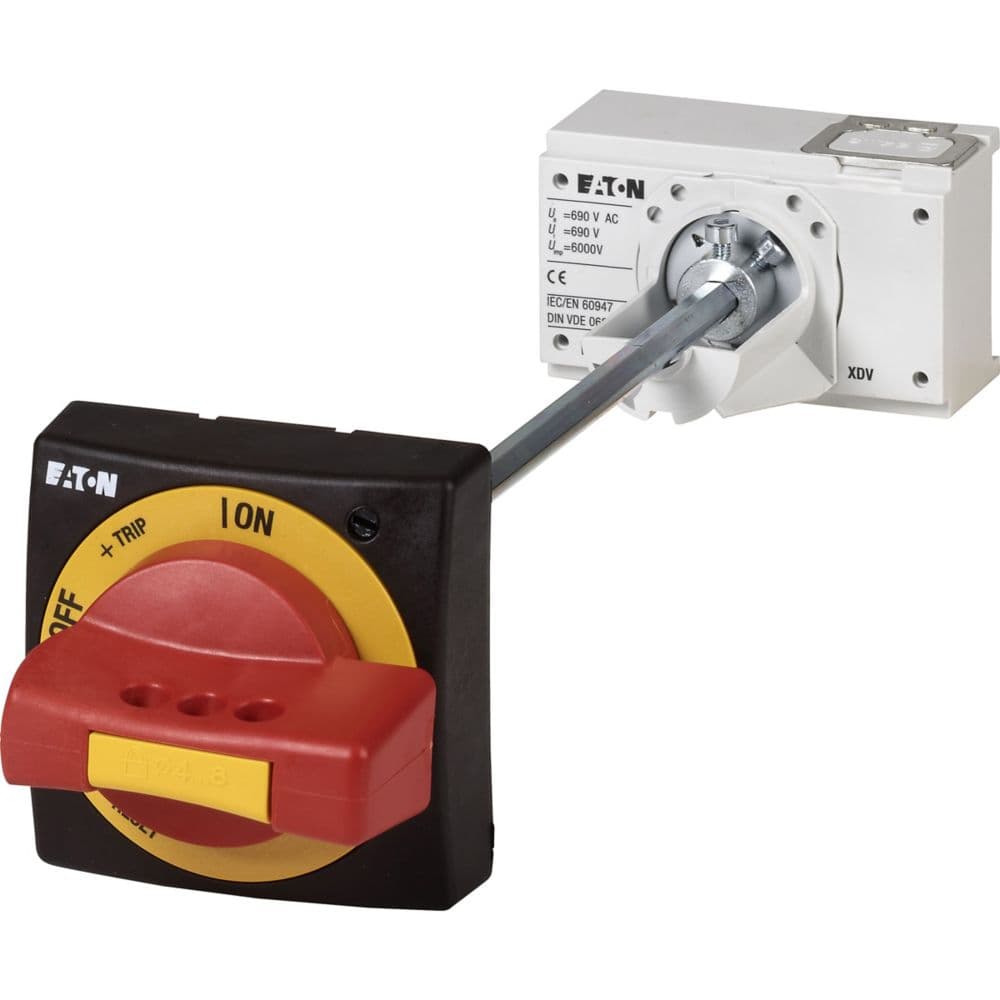

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 266632

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresExternal warning plate/designation label can be clipped on.For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.Kit for use as a main switch
Product NameEaton Moeller series NZM operating element
Catalog Number266632
Model CodeNZM1-XHBR
EAN4015082666323
Product Length/Depth190 mm
Product Height90 mm
Product Width90 mm
Product Weight0.786 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsUL (File No. E140305) CE marking UL (Category Control Number DIHS) IEC60947 CSA (Class No. 1437-01) CSA (File No. 22086) UL listed UL489 CSA-C22.2 No. 5-09 CSA certified
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266632.html
Suitable forEmergency stop Switch disconnector Power circuit breaker
Used withN(S)1(-4) PN1(-4) NZM1(-4)
FeaturesLockable With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1
TypeAccessoryMain switch assembly kit
Fitted with:NZM...-XV4 extension shaft Black and yellow lightning symbol External warning plate/marking plate in German/English Extension shaft Door coupling rotary handle with rotary drive Padlock
FrameNZM1
