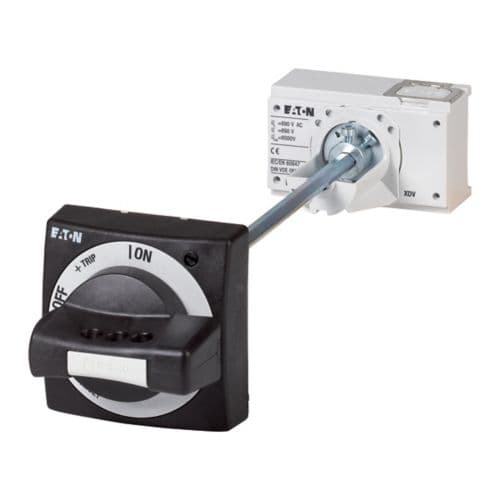

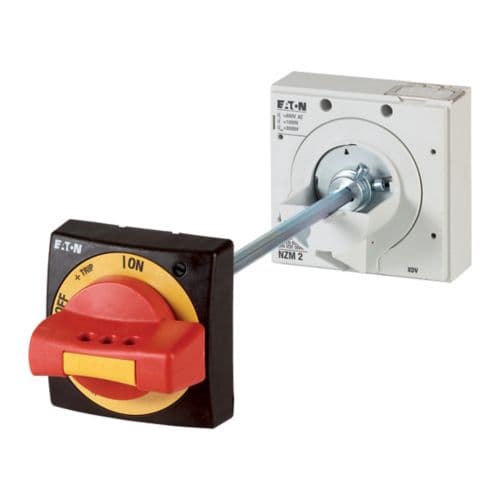

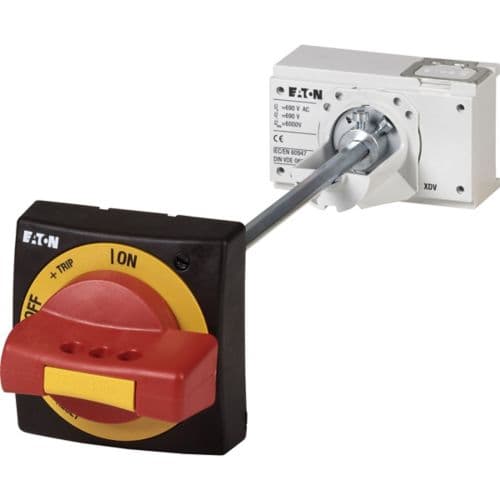

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 266634

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresExternal warning plate/designation label can be clipped on.For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.Kit for use as a main switch
Product NameEaton Moeller series NZM operating element
Catalog Number266634
Model CodeNZM3-XHBR
EAN4015082666347
Product Length/Depth230 mm
Product Height110 mm
Product Width140 mm
Product Weight1.658 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsUL listed CSA (Class No. 1437-01) CSA-C22.2 No. 5-09 UL (File No. E140305) CE marking IEC60947 CSA certified CSA (File No. 22086) UL489 UL (Category Control Number DIHS)
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266634.html
Suitable forEmergency stop Power circuit breaker Switch disconnector
Used withNZM3(-4) N(S)3(-4) PN3(-4)
FeaturesLockable With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1
TypeAccessoryMain switch assembly kit
Fitted with:Black and yellow lightning symbol External warning plate/marking plate in German/English Extension shaft NZM...-XV4 extension shaft Door coupling rotary handle with rotary drive Padlock
FrameNZM3
