Eaton

Eaton Distribution parts

Name: Eaton Distribution parts
Brand: Eaton
SKU: 279196

رقم القطعة: 279196

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

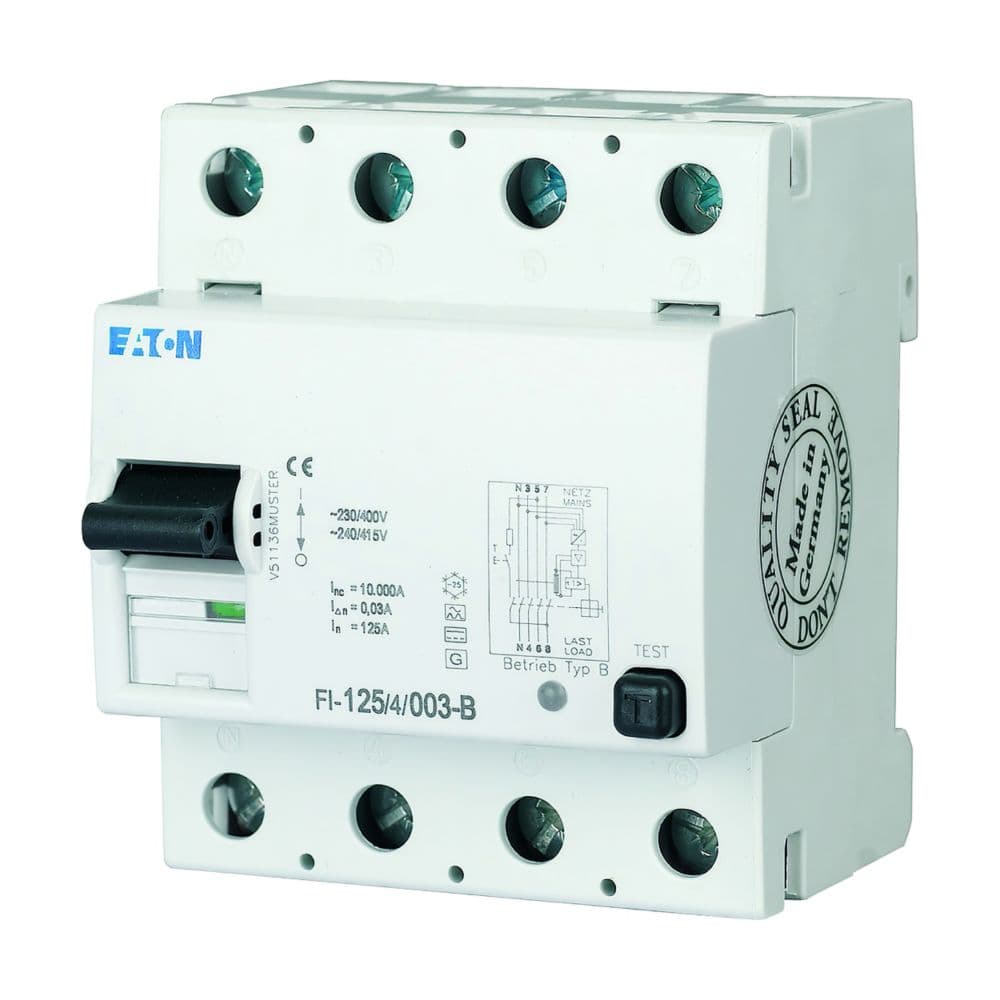

Eaton Distribution parts

المواصفات

Ambient operating temperature - max	55 °C
Ambient operating temperature - min	-25 °C
RAL-number	7035
Special features	Maximum operating temperature is 55 °C: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °C
Product Name	Eaton Distribution parts
Catalog Number	279196
Model Code	FI-25/4/003
EAN	4015082791964
Product Length/Depth	76 mm
Product Height	80 mm
Product Width	70 mm
Product Weight	0.318 kg
Certifications	IEC/EN 61008
Source URL	https://www.eaton.com/gb/en-gb/skuPage.279196.html
Features	Additional equipment possible Residual current circuit breaker
Type	FIResidual current circuit breakersType AC
Degree of protection	IP20
Built-in depth	69.5 mm
Color	Gray
Width in number of modular spacings	4
Mounting method	DIN rail Top-hat rail IEC/EN 60715
Fitted with:	Interlocking device
Number of poles	Four-pole
Amperage Rating	25 A
Rated operational voltage (Ue) - max	400 V
Voltage rating	230 V AC / 400 V AC
Rated operational current for specified heat dissipation (In)	25 A
Frequency rating	50 Hz
Pollution degree	2
Rated insulation voltage (Ui)	440 V
Frame	45 mm
Rated impulse withstand voltage (Uimp)	4 kV
Voltage type	AC
Connectable conductor cross section (multi-wired) - max	16 mm²
Connectable conductor cross section (multi-wired) - min	1.5 mm²
Connectable conductor cross section (solid-core) - max	35 mm²
Connectable conductor cross section (solid-core) - min	1.5 mm²
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	3.1 W
Static heat dissipation, non-current-dependent	0 W
Heat dissipation capacity	0 W
Terminal protection	Protection against electric shock to IEC 536
Enclosure width	80 mm
Surge current capacity	0.25 kA
Fault current rating	30 mA
Impulse withstand current	Partly surge-proof 250 A
Leakage current type	AC
Sensitivity type	AC current sensitive
Rated short-time withstand current (Icw)	10 kA
Busbar material thickness	0.8 mm - 2 mm
Terminals (top and bottom)	Twin-purpose terminals
Rated fault current - max	0.03 A
Rated fault current - min	0.03 A
Tripping time	Non-delayed
Rated short-circuit strength	10 kA
