Eaton

Eaton Distribution parts

Name: Eaton Distribution parts
Brand: Eaton
SKU: 279221

رقم القطعة: 279221

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

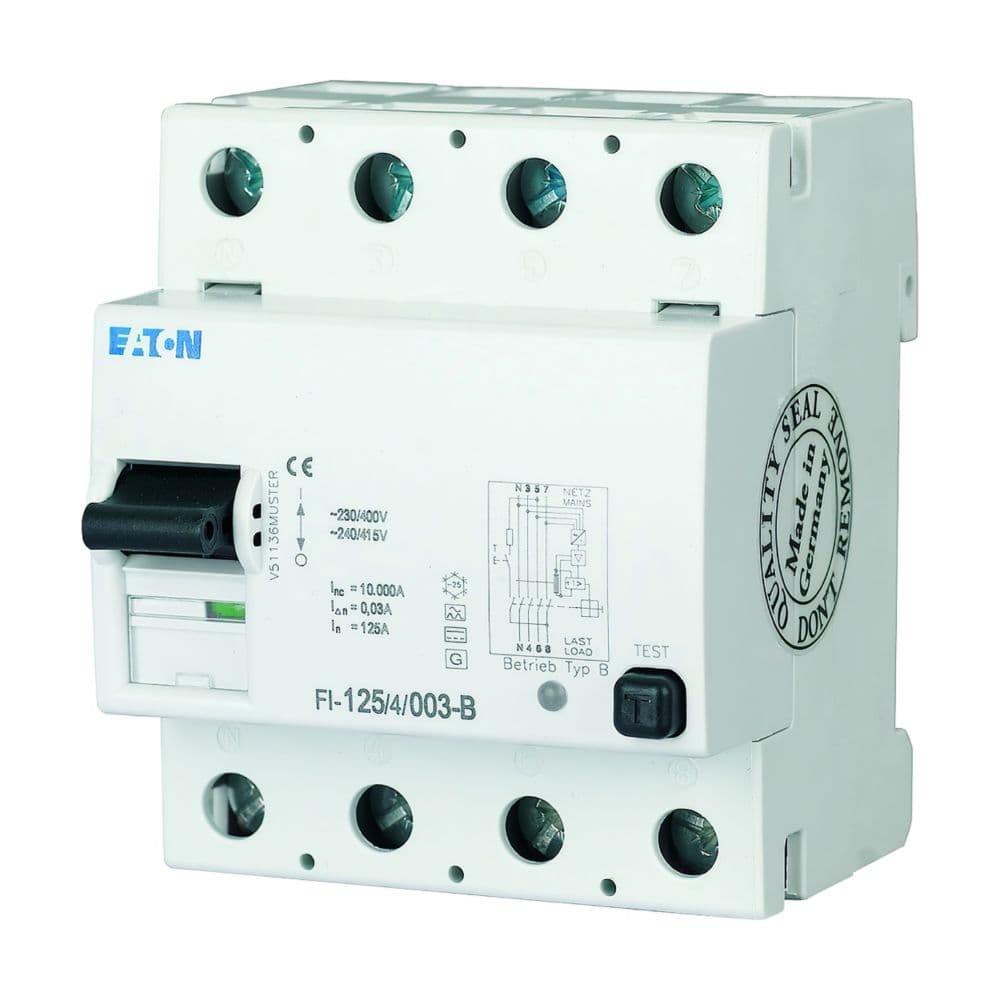

Eaton Distribution parts

المواصفات

Ambient operating temperature - max	60 °C
Ambient operating temperature - min	-25 °C
Climatic proofing	According to IEC/EN 61008
RAL-number	7035
Special features	Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.8% for every 1 °C
Product Name	Eaton Distribution parts
Catalog Number	279221
Model Code	FI-63/4/003-A
EAN	4015082792213
Product Length/Depth	76 mm
Product Height	80 mm
Product Width	70 mm
Product Weight	0.351 kg
Certifications	IEC/EN 61008
Source URL	https://www.eaton.com/gb/en-gb/skuPage.279221.html
Features	Residual current circuit breaker Additional equipment possible
Type	FIResidual current circuit breakersType A
Degree of protection	IP20 IP40
Built-in depth	69.5 mm
Color	Gray
Width in number of modular spacings	4
Mounting method	Top-hat rail IEC/EN 60715 DIN rail
Fitted with:	Interlocking device
Number of poles	Four-pole
Amperage Rating	63 A
Rated operational voltage (Ue) - max	400 V
Voltage rating	230 V AC / 400 V AC
Terminal capacity (solid wire)	1.5 mm² - 35 mm²
Terminal capacity (stranded cable)	16 mm² (2x)
Rated operational current for specified heat dissipation (In)	63 A
Frequency rating	50 Hz
Pollution degree	2
Rated insulation voltage (Ui)	440 V
Frame	45 mm
Rated impulse withstand voltage (Uimp)	6 kV 4 kV
Lifespan, mechanical	20000 operations
Voltage type	AC
Lifespan, electrical	4000 operations
Connectable conductor cross section (multi-wired) - max	16 mm²
Connectable conductor cross section (multi-wired) - min	1.5 mm²
Connectable conductor cross section (solid-core) - max	35 mm²
Connectable conductor cross section (solid-core) - min	1.5 mm²
Voltage rating - max	440 VAC
Mounting width	70 mm
Heat dissipation per pole, current-dependent	0 W
Equipment heat dissipation, current-dependent	13.4 W
Static heat dissipation, non-current-dependent	0 W
Heat dissipation capacity	0 W
Terminal protection	Protection against electric shock to IEC 536
Enclosure width	80 mm
Voltage rating - min	184 VAC
Surge current capacity	0.25 kA
Fault current rating	30 mA
Rated switching capacity	10 kA
Impulse withstand current	Partly surge-proof 250 A
Leakage current type	A
Sensitivity type	DC and pulsed current AC and pulsating DC current sensitive
Rated short-time withstand current (Icw)	10 kA
Busbar material thickness	0.8 mm - 2 mm
Terminals (top and bottom)	Twin-purpose terminals
Rated fault current - max	0.03 A
Rated fault current - min	0.03 A
Tripping time	Non-delayed
Rated short-circuit strength	10 kA
Admissible back-up fuse	63 A gL (for In = 16 A - 63 A) 80 A gL (for In = 80 A) 100 A gL (for In = 100 A)
Rated non-tripping current	0.5 x I∆n
Rated fault switching capacity	1000 A (for In = 100 A) 630 A (for In = 63 A) 500 A (for In = 16 A - 40 A) 800 A (for In = 80 A)
