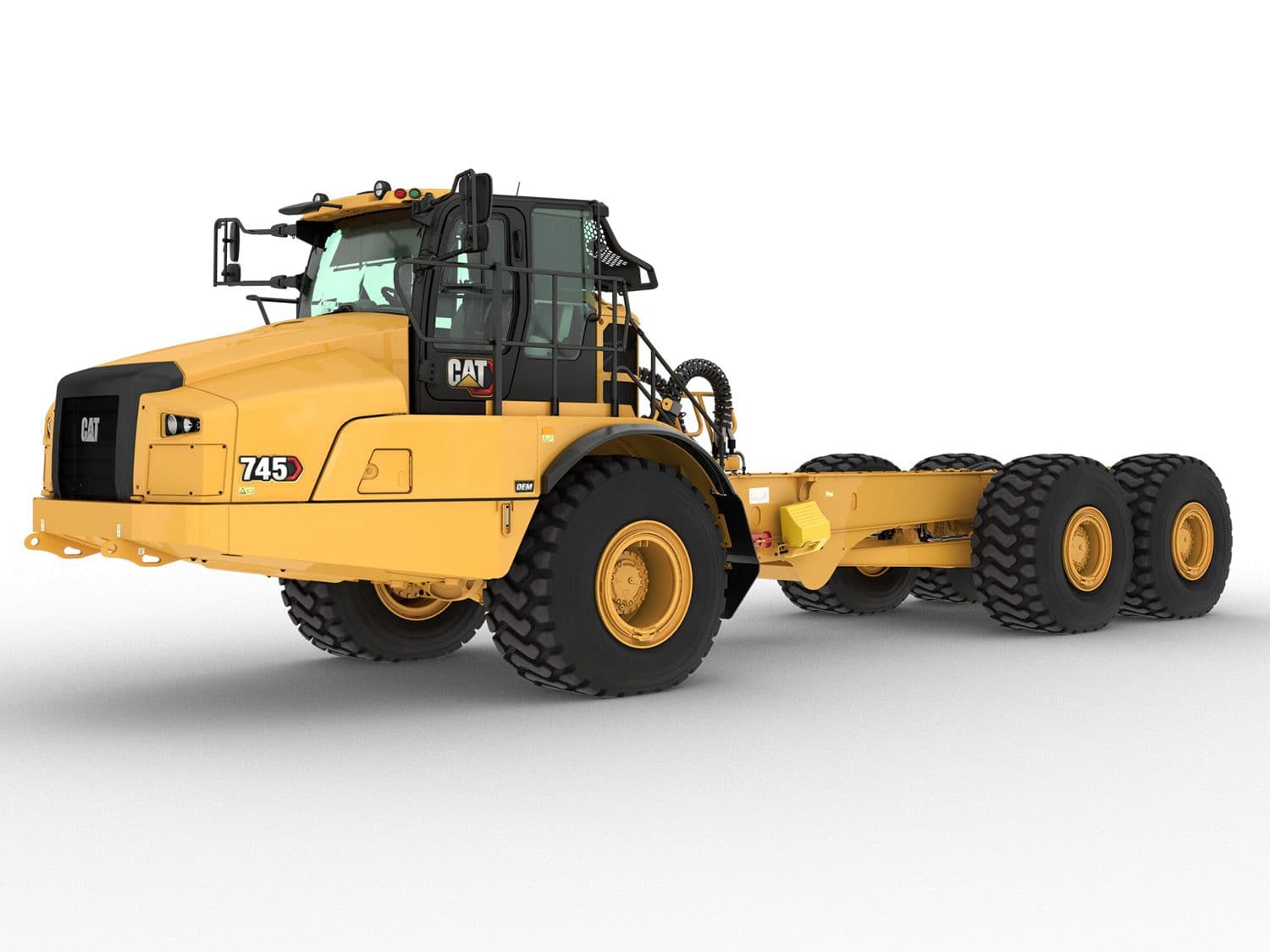

745 Bare Chassis Articulated Truck
رقم القطعة: CAT-114720
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
745 Bare Chassis Articulated Truck
المواصفات
| Standard Wheel Base | 4590 mm |
|---|---|
| Long Wheel Base | 5801 mm |
| Engine Model | Cat® C18 |
| Rated Payload | 41 t |
| Gross Power - SAE J1995:2014 | 381 kW |
| Net Power - SAE J1349:2011 | 370 kW |
| Bore | 145 mm |
| Stroke | 183 mm |
| Displacement | 18.1 l |
| Peak Engine Torque Gross (SAE J1995) | 2618 N·m |
| Peak Engine Torque Speed | 1200 r/min |
| Peak Engine Torque Net (SAE J1349) | 2558 N·m |
| No Engine De-rating Required Below | 3050 m |
| Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final | Engine specifications shown are for highly regulated countries. Can be equipped with the C18 engine for lesser regulated countries. |
| Lock to Lock | 4.8 seconds at 60 rpm |
| Forward - 1 | 6.1 km/h |
| Forward - 2 | 8.1 km/h |
| Forward - 3 | 11.2 km/h |
| Turning Dimensions - Steer Angle - Left/Right | 45° |
| Forward - 4 | 14.1 km/h |
| Turning Dimensions - Aisle Width | 5917 mm |
| Turning Dimensions - Clearance Radius | 9082 mm |
| Forward - 5 | 18.7 km/h |
| Turning Dimensions - SAE Turning Radius | 8625 mm |
| Turning Dimensions - Inside Radius | 4413 mm |
| Forward - 6 | 22.9 km/h |
| Note | Dimensions are for machines equipped with 29.5 R25 tires. |
| Forward - 7 | 31.5 km/h |
| Reverse - 1 | 6.4 km/h |
| Forward - 8 | 37.9 km/h |
| Fuel Tank | 550 l |
| Forward - 9 | 54.8 km/h |
| Cooling System | 90 l |
| Reverse - 2 | 14.6 km/h |
| Brake Cooling Tank | 67 l |
| Interior Cab | 72 dB(A) |
| DEF Tank | 25 l |
| Engine Crankcase | 52 l |
| Steering/Hoist Hydraulic System | 140 l |
| Final Drives/Differential | 125 l |
| Transmission - OTG | 75 l |
| Final Drive - Each | 5 l |
| Brakes | ISO 3450:2011 |
| Axles - Each | 60 l |
| Cab - FOPS | ISO 3449:2005 Level II |
| Cab - ROPS | ISO 3471:2008 |
| Steering | ISO 5010:2019 |
| Model | 745 Bare Chassis |
| Product Page | https://www.cat.com/en_US/products/new/equipment/articulated-trucks/articulated-truck-bare-chassis/114720.html |
| Caterpillar Category | Articulated Truck Bare Chassis |
| Caterpillar Category Path | Products > Equipment > Articulated Trucks > Articulated Truck Bare Chassis > 745 Bare Chassis |
| Caterpillar Product Family | equipment |
| Caterpillar Product Page ID | 114720 |
| Datasheet URL | https://s7d2.scene7.com/is/content/Caterpillar/CM20211214-0c0e1-13320 |
منتجات مشابهة
معدات ثقيلة وآليات
Caterpillar
730 Bare Chassis Articulated Truck
اطلب عرض سعر
Caterpillar
735 Bare Chassis Articulated Truck
اطلب عرض سعر
Caterpillar
740 Bare Chassis Articulated Truck
اطلب عرض سعر
Caterpillar
735 Articulated Truck
اطلب عرض سعر
Caterpillar

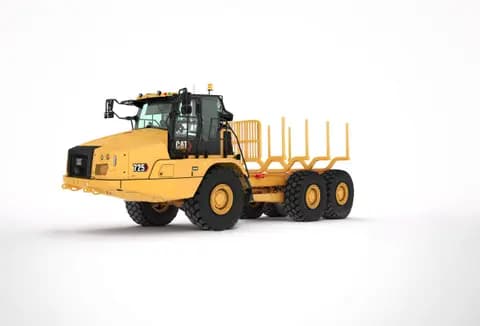

725 Articulated Truck Bare Chassis
