Caterpillar

Cat® 340 Hydraulic Excavator

Name: Cat® 340 Hydraulic Excavator
Brand: Caterpillar
SKU: CAT-127103

رقم القطعة: CAT-127103

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

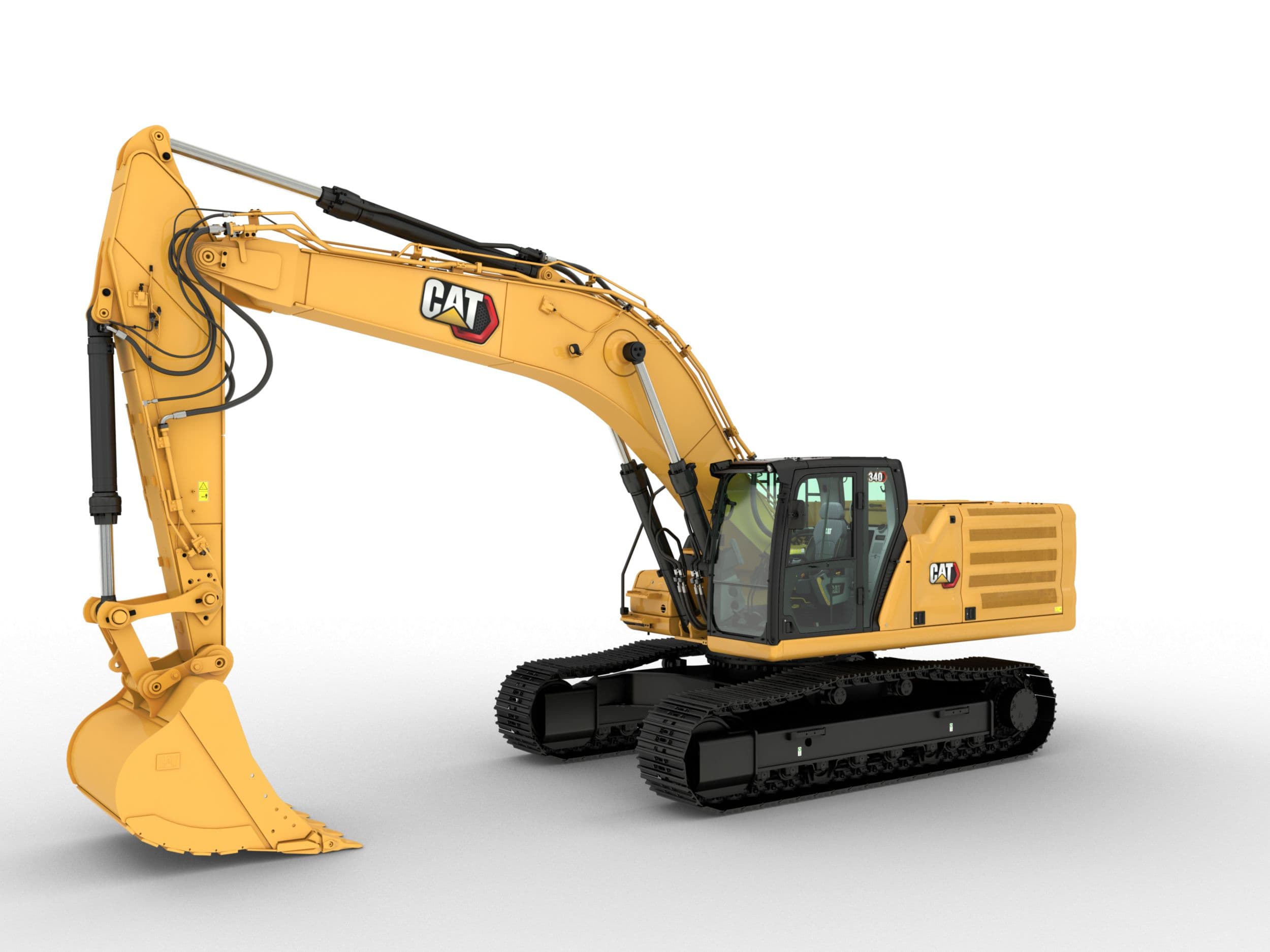

Cat® 340 Hydraulic Excavator

المواصفات

Engine Model	Cat C9.3B
Bore	115 mm
Stroke	149 mm
Displacement	9.3 l
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.000 kg (2.205lb.) of refrigerant, which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 0.790 kg (1.742 lb.) of refrigerant, which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
Cooling System	40 l
DEF Tank	80 l
Final Drive - Each	8 l
Model	340
Product Page	https://www.cat.com/en_US/products/new/equipment/excavators/large-excavators/127103.html
Caterpillar Category	Large Excavators
Caterpillar Category Path	Products > Equipment > Excavators > Large Excavators > 340
Caterpillar Product Family	equipment
Caterpillar Product Page ID	127103
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20241204-e2eb6-864e4
Fuel Tank Capacity	600 l
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Operating Weight	37700 kg
Hydraulic Tank	161 l
Engine Oil	32 l
Ground Clearance	510 mm
Tail Swing Radius	3530 mm
Net Power - ISO 9249	258.3 kW
Maximum Reach at Ground Level	11760 mm
Net Power - ISO 9249 (DIN)	351 hp (metric)
Engine Power - ISO 14396	259 kW
Engine Power - ISO 14396 (DIN)	352 hp (metric)
Biodiesel Capability	Up to B20¹
Maximum Digging Depth	8210 mm
Boom	Reach 6.5 m (21'4")
Stick	Reach 3.9 m (12'10")
Bucket	HD 2.36 m³ (3.08 yd³)
Maximum Cutting Height	10740 mm
Maximum Loading Height	7470 mm
Minimum Loading Height	1890 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	8080 mm
Maximum Vertical Wall Digging Depth	6420 mm
Bucket Digging Force - ISO	210 kN
Stick Digging Force - ISO	145 kN
Main System - Maximum Flow	560 L/min
Maximum Pressure - Equipment	35000 kPa
Maximum Pressure - Travel	35000 kPa
Maximum Pressure - Swing	29400 kPa
Maximum Swing Torque	143 kN·m
Swing Mechanism — Note (1)	*For CE-marked machine default value may be set lower
Hydraulic System - Including Tank	373 l
Shipping Height - Top of Cab	3180 mm
Handrail Height	3180 mm
Shipping Length	11180 mm
Counterweight Clearance	1260 mm
Track Length	5030 mm
Track Gauge	2740 mm
Maximum Pressure - Equipment - Lift Mode	38000 kPa
Swing Drive - Each	18 l
Track Length to Center of Rollers	4040 mm
Transport Width - 850 mm (33”) Shoes	3590 mm
