Caterpillar

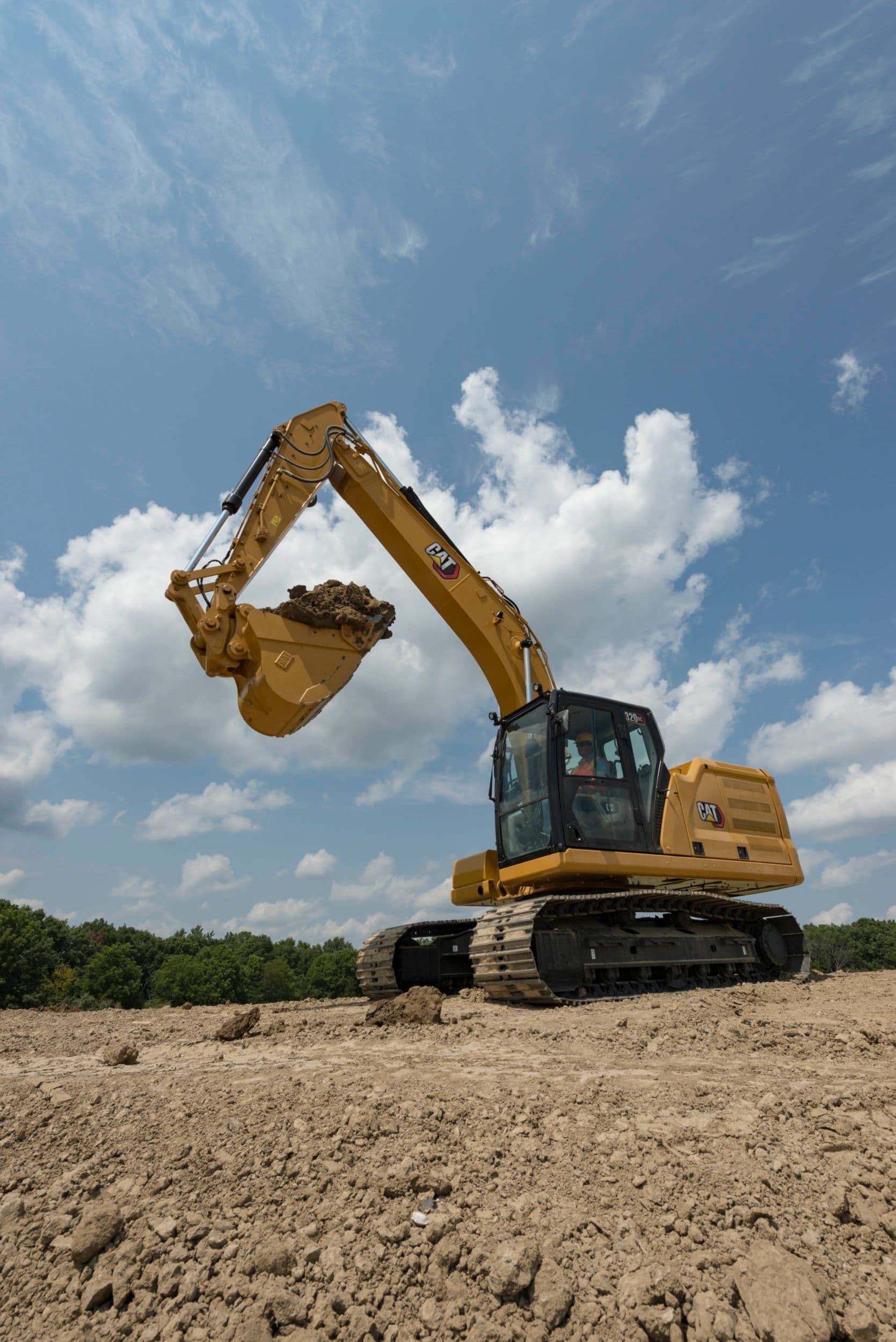

320 GC Hydraulic Excavator

Name: 320 GC Hydraulic Excavator
Brand: Caterpillar
SKU: CAT-126504

رقم القطعة: CAT-126504

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

320 GC Hydraulic Excavator

المواصفات

Engine Model	Cat® C4.4
Bore	105 mm
Stroke	127 mm
Displacement	4.4 l
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. **Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 0.85 kg (1.9 lb) of refrigerant which has a CO2 equivalent of 1.216 metric tonnes (1.340 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 0.75 kg (1.7 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
Note	Long undercarriage, Reach boom, R2.9 (9'6") stick, General Duty (GD) 1 m³ (1.31 yd³) bucket, 700 mm (28 in) triple grouser shoes and 4200 kg (9,300 lb) counterweight.
Cooling System	25 l
DEF Tank	39 l
Final Drive - Each	4 l
Model	320 GC
Product Page	https://www.cat.com/en_US/products/new/equipment/excavators/medium-excavators/126504.html
Caterpillar Category	Medium Excavators
Caterpillar Category Path	Products > Equipment > Excavators > Medium Excavators > 320 GC
Caterpillar Product Family	equipment
Caterpillar Product Page ID	126504
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20241126-0f4f5-37728
Transport Width	3170 mm
Fuel Tank Capacity	345 l
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards
Operating Weight	22000 kg
Recyclability	97%
Hydraulic Tank	115 l
Engine Oil	15 l
Ground Clearance	470 mm
Tail Swing Radius	2830 mm
Net Power - ISO 9249	109 kW
Maximum Reach at Ground Level	9860 mm
Net Power - ISO 9249 (DIN)	148 hp (metric)
Engine Power - ISO 14396	110.1 kW
Engine Power - ISO 14396 (DIN)	150 hp (metric)
Biodiesel Capability	Up to B20¹
Maximum Digging Depth	6720 mm
Boom	Reach 5.7 m (18.8)
Stick	Reach 2.9 m (9'6")
Bucket	GD 1 m³ (1.31 yd³)
Maximum Cutting Height	9450 mm
Maximum Loading Height	6490 mm
Minimum Loading Height	2170 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	6550 mm
Maximum Vertical Wall Digging Depth	5690 mm
Bucket Digging Force - ISO	129 kN
Stick Digging Force - ISO	99 kN
Main System - Maximum Flow	442 l/min (117 gal/min)
Maximum Pressure - Equipment	35000 kPa
Maximum Pressure - Travel	34300 kPa
Maximum Pressure - Swing	25000 kPa
Swing Speed	11.6 r/min
Maximum Swing Torque	74.4 kN·m
Swing Mechanism — Note (1)	*For CE-marked machine default value may be set lower.
Hydraulic System - Including Tank	234 l
Shipping Height - Top of Cab	2960 mm
Handrail Height	2950 mm
Shipping Length	9530 mm
Counterweight Clearance	1050 mm
Track Length	4450 mm
Length to Center of Rollers	3650 mm
Track Gauge	2380 mm
Swing Drive	12 l
Dimensions — Boom	Reach 5.7 m (18'8")
