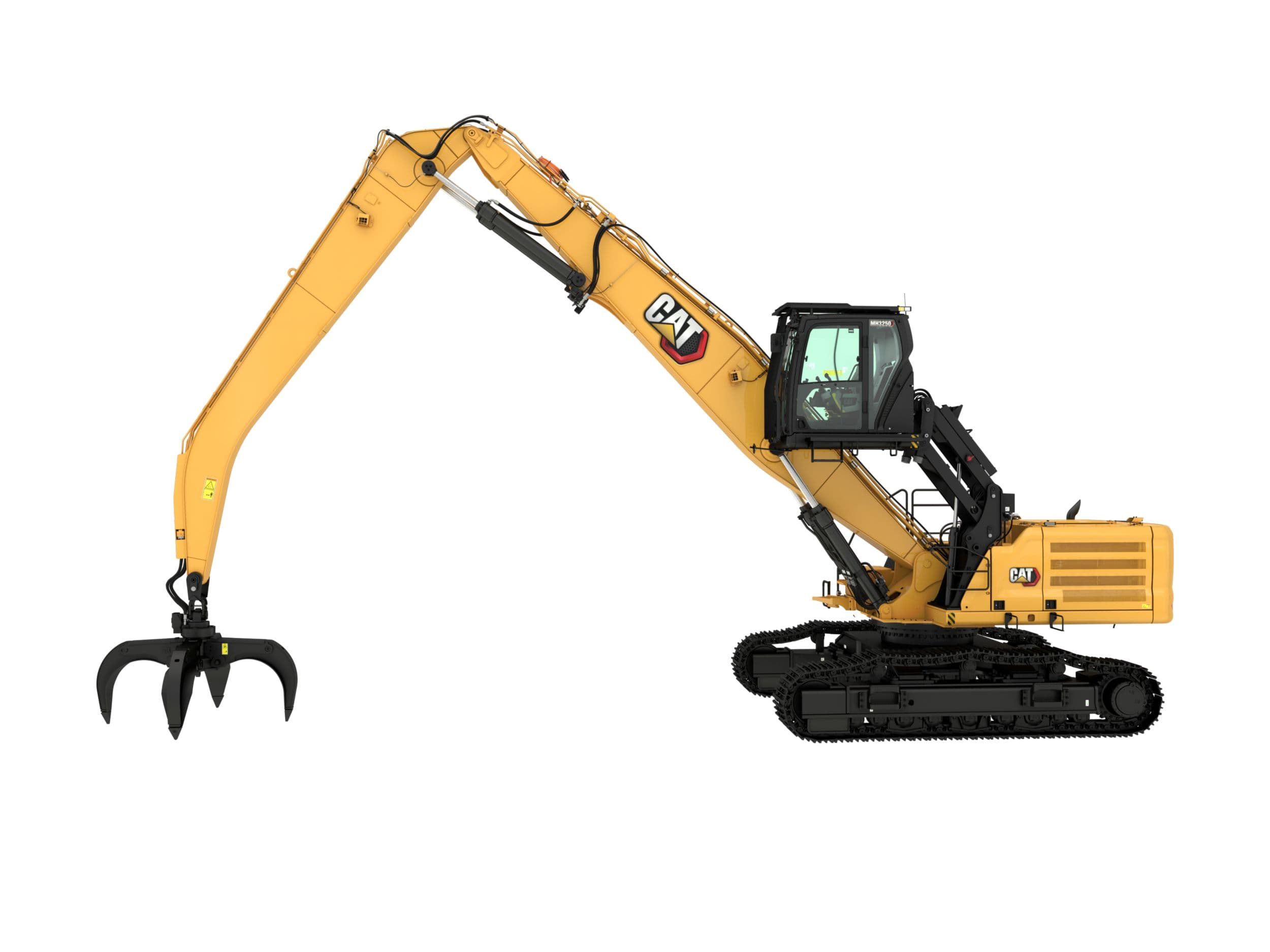

MH3250 Track Material Handler

Name: MH3250 Track Material Handler
Brand: Caterpillar
SKU: CAT-126825

رقم القطعة: CAT-126825

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

MH3250 Track Material Handler

المواصفات

Engine Model	Cat® C9.3B
Bore	115 mm
Stroke	149 mm
Displacement	9.3 l
Note (1)	Net power advertised is the power available at the flywheel when engine is equipped with fan, air cleaner, exhaust gas aftertreatment, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. **Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Cooling System	40 l
Final Drive - Each	15 l
Model	MH3250
Product Page	https://www.cat.com/en_US/products/new/equipment/material-handlers/track-material-handlers/126825.html
Caterpillar Category	Track Material Handlers
Caterpillar Category Path	Products > Equipment > Material Handlers > Track Material Handlers > MH3250
Caterpillar Product Family	equipment
Caterpillar Product Page ID	126825
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20250307-bee28-a2e8f
Fuel Tank Capacity	600 l
Maximum Travel Speed	3.4 km/h
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Operating Weight	48850 kg
Recyclability	97%
Hydraulic Tank	161 l
Engine Oil	32 l
Diesel Exhaust Fluid (DEF) Tank	80 l
Weights — Note (1)	Operating weight includes Material Handler (MH) Boom, 7.6 m (24'11") industrial stick, 6.8 mt (14,990 lb) counterweight, 600 mm (24") triple grouser shoes, full fuel tank, 75 kg (165 lb) operator, grapple 3000 kg (6,610 lb).
Maximum Reach	16010 mm
Ground Clearance	700 mm
Tail Swing Radius	3530 mm
Gradeability	35°/70%
Net Power - ISO 9249	232 kW
Net Power - ISO 9249 (DIN)	315 hp (metric)
Engine Power - ISO 14396	234 kW
Engine Power - ISO 14396 (DIN)	318 hp (metric)
Biodiesel Capability	Up to B20¹
Boom	MH 9.2 m (30'2")
Stick	Industrial 7.6 m (24'11")
Maximum Pressure - Travel	35000 kPa
Maximum Pressure - Swing	32000 kPa
Swing Speed	8 r/min
Swing Mechanism — Note (1)	*For CE-marked machine default value may be set lower.
Hydraulic System - Including Tank	373 l
Counterweight Clearance	1410 mm
Track Length	5350 mm
Track Length to Center of Rollers	4340 mm
Swing Torque	142 kN·m
Maximum Drawbar Pull	246 kN
Air Conditioning System — Note (1)	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.09 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.559 metric tonnes (1.718 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.09 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
Maximum Height	16850 mm
Minimum Swing Radius-Front	3870 mm
Maximum Depth	7090 mm
Boom Pin Height	11450 mm
Maximum Pressure - Implements	35000 kPa
Cab Height-Lowered	3500 mm
Cab Height-Lowered with OPG	3570 mm
Cab Height-Raised	6020 mm
Cab Height-Raised with OPG	6160 mm
Shipping Length (without stick)	12700 mm
Machine Length (with boom/stick)	12610 mm
Upper Frame Width (includes walkways and handrails)	3820 mm
Track Gauge-Retracted	3220 mm
Track Gauge- Extended	3720 mm
Undercarriage Width-Retracted, 600 mm (24”) shoes	4010 mm
Undercarriage Width-Extended	4510 mm
