Caterpillar

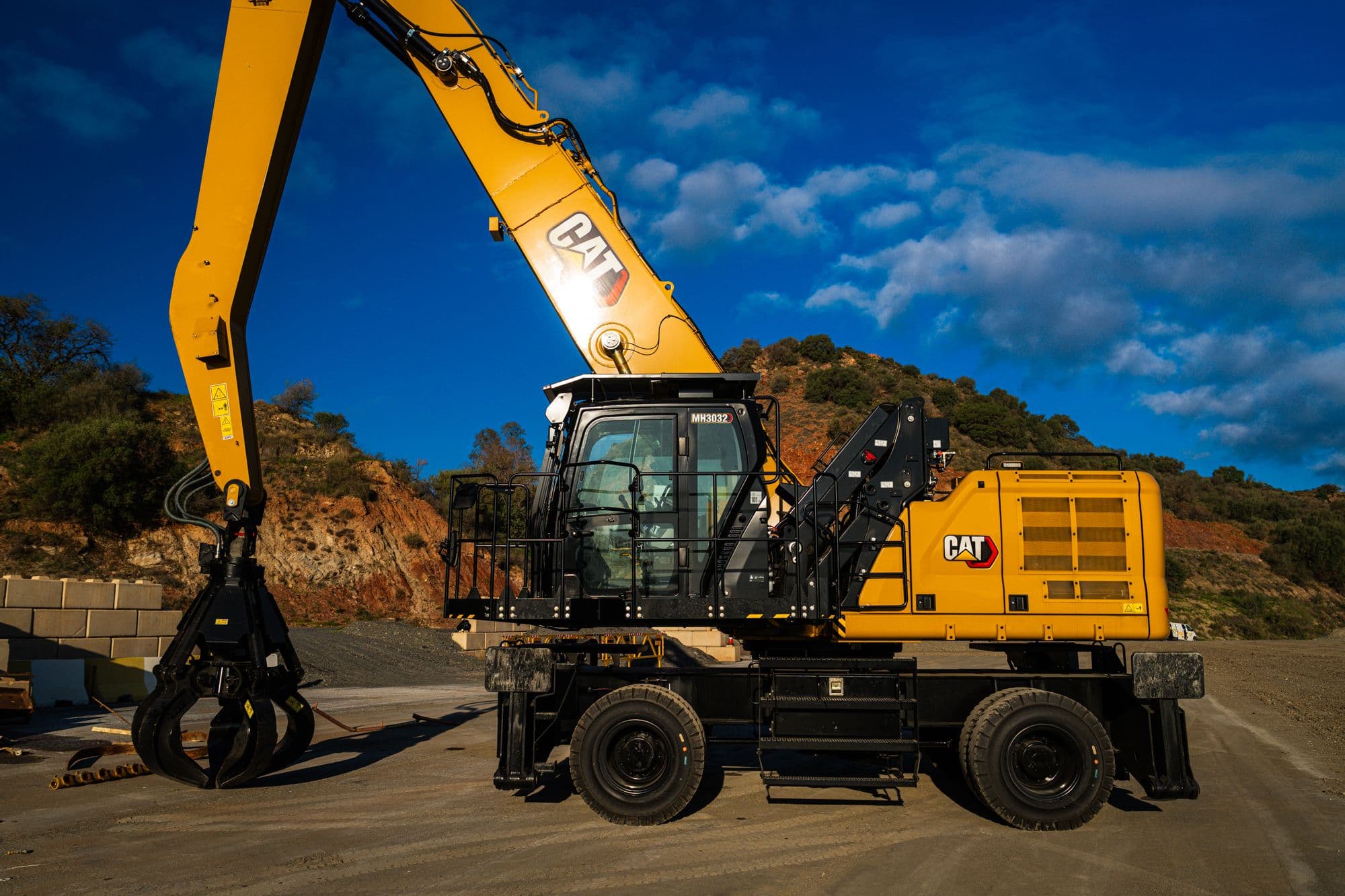

MH3032 Wheel Material Handler

Name: MH3032 Wheel Material Handler
Brand: Caterpillar
SKU: CAT-121500

رقم القطعة: CAT-121500

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

MH3032 Wheel Material Handler

المواصفات

Engine Model	Cat® C7.1
Bore	105 mm
Stroke	135 mm
Displacement	7 l
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. **Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Note	Operating weight includes full fuel tank, 75 kg (165 lb) operator and a 2000 kg (4,410 lb) grapple. Weight varies depending on configuration.
Cooling System	25 l
Final Drive - Each	2.2 l
Model	MH3032
Product Page	https://www.cat.com/en_US/products/new/equipment/material-handlers/wheel-material-handlers/121500.html
Caterpillar Category	Wheel Material Handlers
Caterpillar Category Path	Products > Equipment > Material Handlers > Wheel Material Handlers > MH3032
Caterpillar Product Family	equipment
Caterpillar Product Page ID	121500
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20250129-6aa72-d6dc2
Fuel Tank Capacity	474 l
Maximum Travel Speed	18 km/h
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V emission standards.
Operating Weight	36400 kg
Recyclability	94%
Hydraulic Tank	147 l
Engine Oil	25 l
Diesel Exhaust Fluid (DEF) Tank	41 l
Maximum Reach	14080 mm
Drawbar Pull	145 kN
Ground Clearance	249 mm
Tail Swing Radius	3000 mm
Net Power - ISO 9249	150 kW
Net Power - ISO 9249 (DIN)	204 hp (metric)
Engine Power - ISO 14396 (DIN)	205 hp (metric)
Biodiesel Capability	Up to B20¹
Boom	MH 8.5 m (27'11")
Stick	6.4 m (21'0") Drop Nose
Maximum Pressure - Travel	35000 kPa
Maximum Pressure - Swing	28400 kPa
Swing Speed	7 r/min
Maximum Swing Torque	82 kN·m
Hydraulic System - Including Tank	310 l
Shipping Length	11860 mm
Counterweight Clearance	1465 mm
Undercarriage Length	5781 mm
Wheel Base	3200 mm
Air Conditioning System — Note (1)	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.2 kg (2.6 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.05 kg (2.31 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
Maximum Height	15470 mm
Maximum Depth	4990 mm
Boom Pin Height	10750 mm
Maximum Pressure - Implements	35000 kPa
Cab Height-Lowered with OPG	3550 mm
Cab Height-Raised	6095 mm
Cab Height-Raised with OPG	6145 mm
Engine Power - Maximum - ISO 14396	151 kW
Minimum Dump Height	4670 mm
Maximum Gradeability	45%
Rear Axle - Housing (Differential)	19.5 l
Powershift Transmission	3 l
Machine Length	5785 mm
Cab Height- Lowered	3500 mm
Shipping Width	3000 mm
