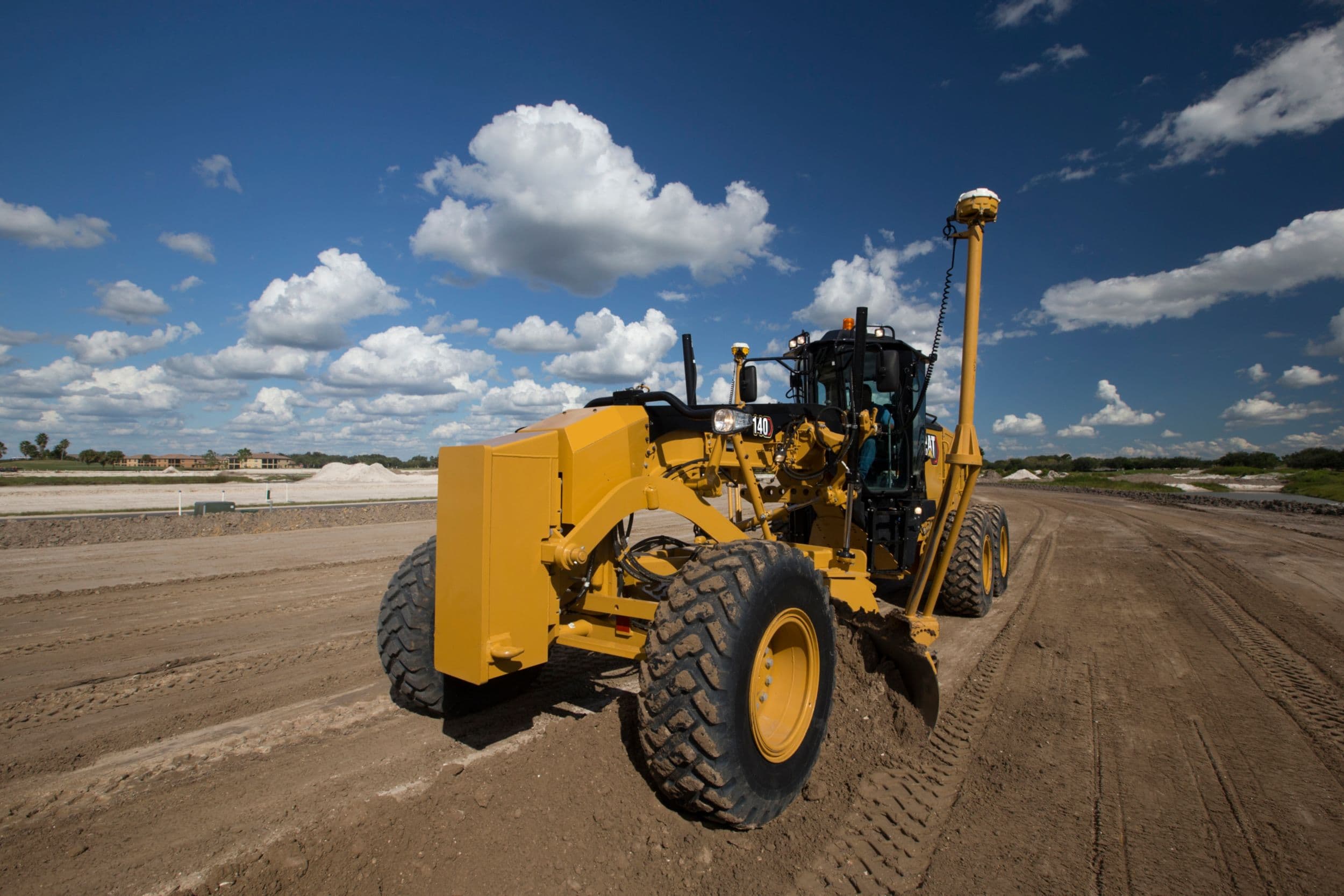

160 Motor Grader

Caterpillar

160 Motor Grader

رقم القطعة: CAT-125740

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

160 Motor Grader

المواصفات

Engine ModelCat® C9.3
Bore115 mm
Stroke149 mm
Displacement9.3 l
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.994 tons).
Cooling System57 l
TransmissionAPECS, Direct Drive, Powershift
Model160 / 160 AWD JOY
Product Pagehttps://www.cat.com/en_US/products/new/equipment/motor-graders/motor-graders/125740.html
Caterpillar CategoryMotor Graders
Caterpillar Category PathProducts > Equipment > Motor Graders > Motor Graders > 160 160 AWD JOY
Caterpillar Product Familyequipment
Caterpillar Product Page ID125740
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20250331-c0a3c-7236b
EmissionsU.S. EPA Tier 4 Final/EU Stage V
Engine Oil30 l
Number of Cylinders6
Operating Weight - Typically Equipped20660 kg
Torque Rise39%
Blade Width4.2 m
Maximum Torque - VHP Plus1355 N·m
Arc Radius413 mm
Maximum Depth of Cut750 mm
Throat Clearance166 mm
Maximum Lift Above Ground452 mm
Derating Altitude3050 m
Cutting Edge Width152 mm
End Bit - Width152 mm
Blade Pull* - Base GVW11762 kg
Net Power Range (Tier 4)165 kW
Cutting Edge Thickness16 mm
Blade Pull* - Maximum GVW15541 kg
End Bit - Thickness16 mm
Fuel Capacity394 l
Moldboard - Blade Width4.2 m
Moldboard - Height610 mm
Hydraulic System - Tank64 l
Hydraulic System - Total100 l
Circle Centershift - Left695 mm
Moldboard - Thickness22 mm
Transmission - Differential - Final Drives70 l
Circle Centershift - Right728 mm
Tandem Housing - Each87 l
Blade Down Pressure - Base GVW7713 kg
Blade Tip Range - Backward5
Blade Down Pressure - Maximum GVW13294 kg
Front Wheel Spindle Bearing Housing0.5 l
Maximum Shoulder Reach Outside of Tires - Right2278 mm
Circle Drive Housing7 l
Moldboard Sideshift - Right660 mm
Forward/Reverse Gears8 Forward/6 Reverse
Height - Top of Cab3308 mm
Moldboard Sideshift - Left510 mm
Brakes - ParkingMultiple Oil Disc
Length - Counterweight to Ripper10136 mm
Maximum Shoulder Reach Outside of Tires - Left2090 mm
Brakes - SecondaryDual Circuit Control
Brakes - ServiceMultiple Oil Disc
Blade Tip Range - Forward40
Ground Clearance - Rear Axle339 mm
Maximum Blade Position Angle90
Front Axle - Wheel Lean - Left/Right18
Front Frame Structure - Height321 mm
Top Speed - Forward47.4 km/h
Front Axle - Total Oscillation per Side32
Front Frame Structure - Width305 mm
Top Speed - Reverse37.4 km/h
Front Axle - Height to Center596 mm
Turning Radius - Outside Front Tires7.8 m
Steering Range - Left/Right50°
Front-Top/Bottom Plate - Thickness22 mm
Articulation Angle - Left/Right20°
Front-Top/Bottom Plate - Width305 mm
Drawbar - Height152 mm
Diesel Exhaust Fluid22 l
Brakes - Service - Surface Area23000 cm²
Drawbar - Width76.2 mm
Circle - Diameter1553 mm
Drawbar - Thickness12.7 mm
Circle - Blade Beam Thickness40 mm
Circle - Height160 mm
Ripping Depth - Maximum426 mm
Ripper Shank Holder Spacing533 mm
Ripper Shank Holders5
Penetration Force9440 kg
Machine Length Increase, Beam Raised1031 mm
Pry-Out Force12924 kg
Mid, V-Type - Working Width1184 mm
Rear - Scarifying Depth, Maximum426 mm
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing116 mm
Mid, V-Type - Scarifier Shank Holders11
Mid, V-Type - Scarifier Shank Holder Spacing116 mm
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum467 mm
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders5 or 11
Mid, V-Type - Scarifying Depth, Maximum292 mm
Front, V-Type, 5 or 11 Tooth - Working Width1031 mm
Front, V-Type - Working Width1205 mm
Rear - Scarifier Shank Holders9
Rear - Working Width2133 mm
Rear - Scarifier Shank Holder Spacing267 mm
