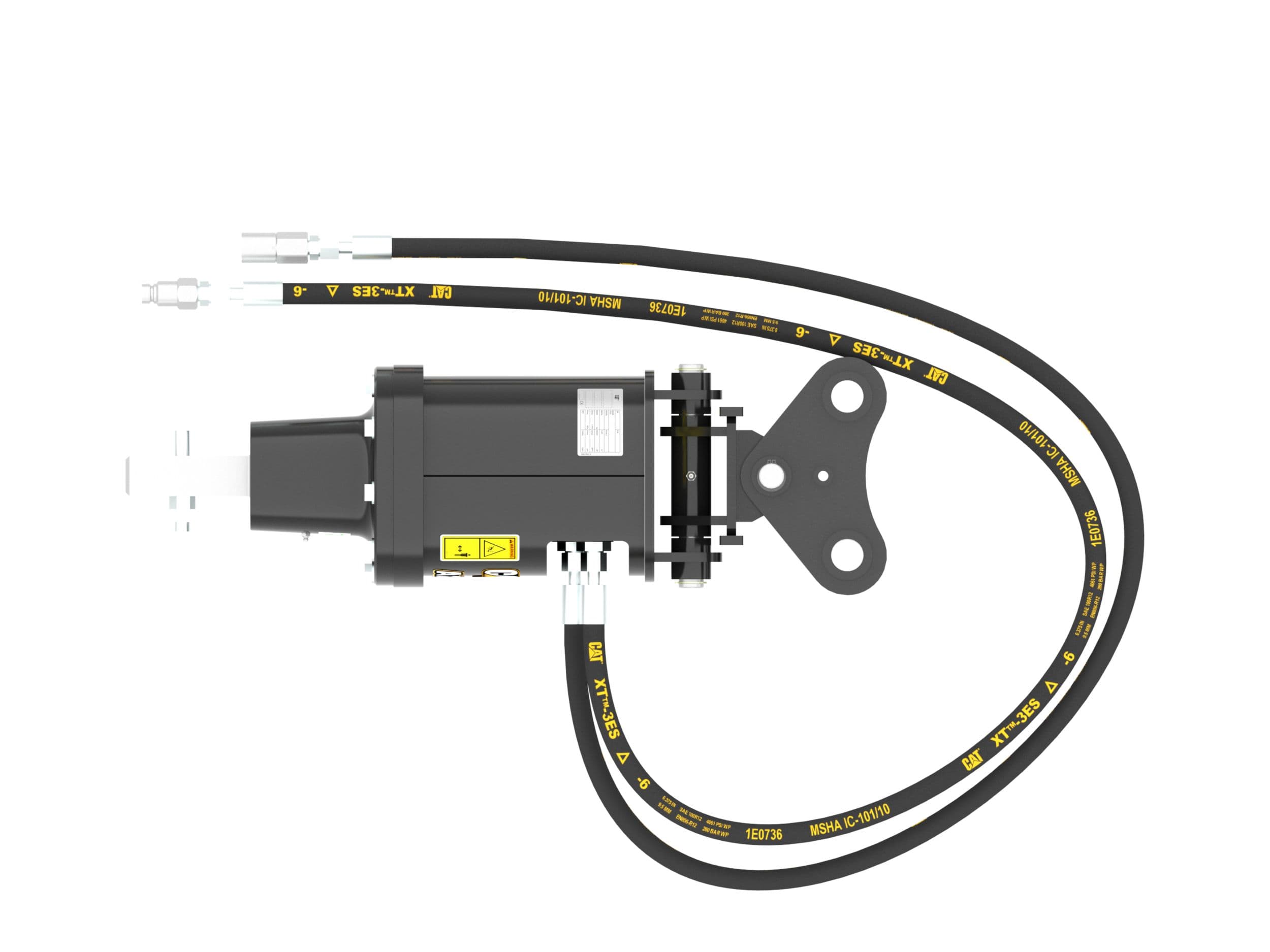

A23 Auger For 3 Ton Mini Excavators

Caterpillar

A23 Auger For 3 Ton Mini Excavators

رقم القطعة: CAT-1000033201

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

A23 Auger For 3 Ton Mini Excavators

المواصفات

ModelA23, 3 Ton Mini Excavators
Product Pagehttps://www.cat.com/en_US/products/new/attachments/augers/augers/1000033201.html
Caterpillar CategoryAugers
Caterpillar Category PathProducts > Attachments > Augers > Augers > A23, 3 Ton Mini Excavators
Caterpillar Product Familyattachments
Caterpillar Product Page ID1000033201
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20240927-84d8a-131f8
Overall Height958 mm
Weight120 kg
Optimal Hydraulic Flow42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure145-235 bar (2100-3400 psi)
Required HydraulicsStandard Flow
Motor Displacement629 cm³
Drive MethodGerotor Motor - Direct Drive
Bit Speed at Maximum Flow127 rpm
Drive Shaft Torque at Maximum Pressure2304 N·m
Swing Range (L/R)76 degrees
Mounting Bracket Design3 Ton Mini Excavator Pin On
Overall Width - With Bracket300 mm
Overall Length - With Bracket282 mm
Housing Diameter280 mm
Swing Range (fore/aft)70 degrees
Hex Output Shaft Size51 mm
