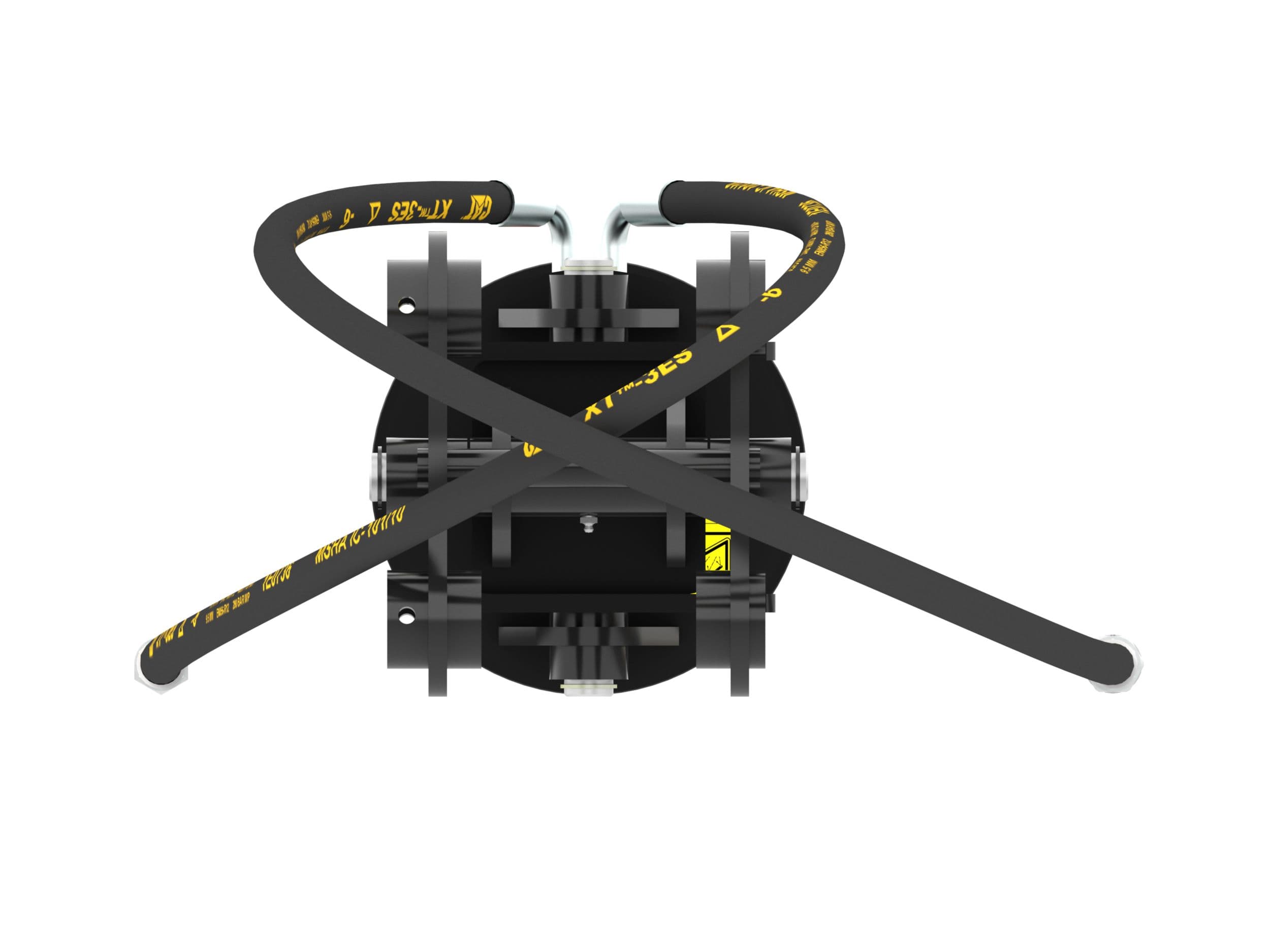

A41 Auger For 3 Ton Mini Excavators

Name: A41 Auger For 3 Ton Mini Excavators
Brand: Caterpillar
SKU: CAT-17722265

رقم القطعة: CAT-17722265

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

A41 Auger For 3 Ton Mini Excavators

Model	A41, 3 Ton Mini Excavators
Product Page	https://www.cat.com/en_US/products/new/attachments/augers/augers/17722265.html
Caterpillar Category	Augers
Caterpillar Category Path	Products > Attachments > Augers > Augers > A41, 3 Ton Mini Excavators
Caterpillar Product Family	attachments
Caterpillar Product Page ID	17722265
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20240927-84d8a-131f8
Overall Height	875 mm
Weight	92 kg
Optimal Hydraulic Flow	42-83 L/min (11-22 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi)
Required Hydraulics	Standard Flow
Motor Displacement	250 cm³
Drive Method	Gerotor Motor - Single Planetary Reduction
Bit Speed at Maximum Flow	71 rpm
Drive Shaft Torque at Maximum Pressure	4120 N·m
Swing Range (L/R)	76 degrees
Mounting Bracket Design	3 Ton Mini Excavator Pin On
Overall Width - With Bracket	300 mm
Overall Length - With Bracket	282 mm
Housing Diameter	280 mm
Swing Range (fore/aft)	72 degrees
Hex Output Shaft Size	51 mm
