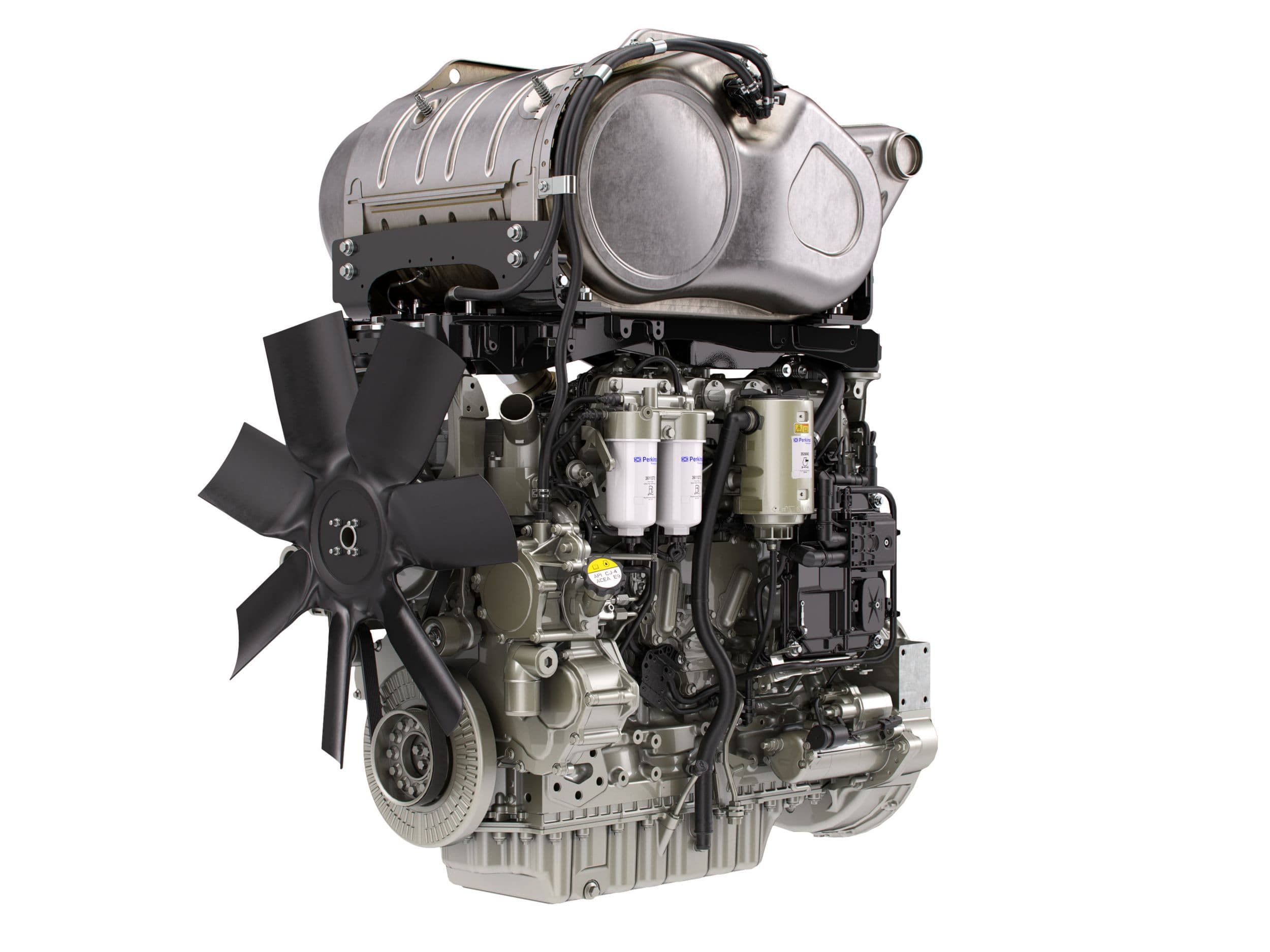

1206J-E70TTA Industrial Diesel Engine

Perkins

1206J-E70TTA Industrial Diesel Engine

رقم القطعة: 1000024078

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

1206J-E70TTA Industrial Diesel Engine

المواصفات

Model1206J-E70TTA
Series1200 Series
CategoryIndustrial
Power Rating / Maximum Power239 kW (320 hp)
Power Rating / Maximum Torque1282 Nm @ 1400 rpm (935 lb-ft @ 1400 rpm)
Power Rating / Rated Speed2200 rpm
Power Rating / Minimum Power151 kW (202 hp)
Emission Standards / EmissionsEU Stage V, U.S. EPA & CARB Tier 4 Final
General / Number of Cylinders6 inline
General / Cycle4 stroke
General / Bore105 mm (4.1 in)
General / Stroke135 mm (5.3 in)
General / Displacement7 l (427.7 in³)
General / Compression Ratio16.5:1
General / AspirationTurbocharged aftercooled
General / Combustion SystemDirect injection
General / Rotation from Flywheel EndAnti-clockwise
General / Cooling SystemLiquid
Engine Dimensions / Length1047 mm (41.2 in)
Engine Dimensions / Width798 mm (31.4 in)
Engine Dimensions / Height912 mm (35.9 in)
Engine Dimensions / Dry Weight752 kg (1658 lb)
General / AftertreatmentDOC+DPF+SCR
