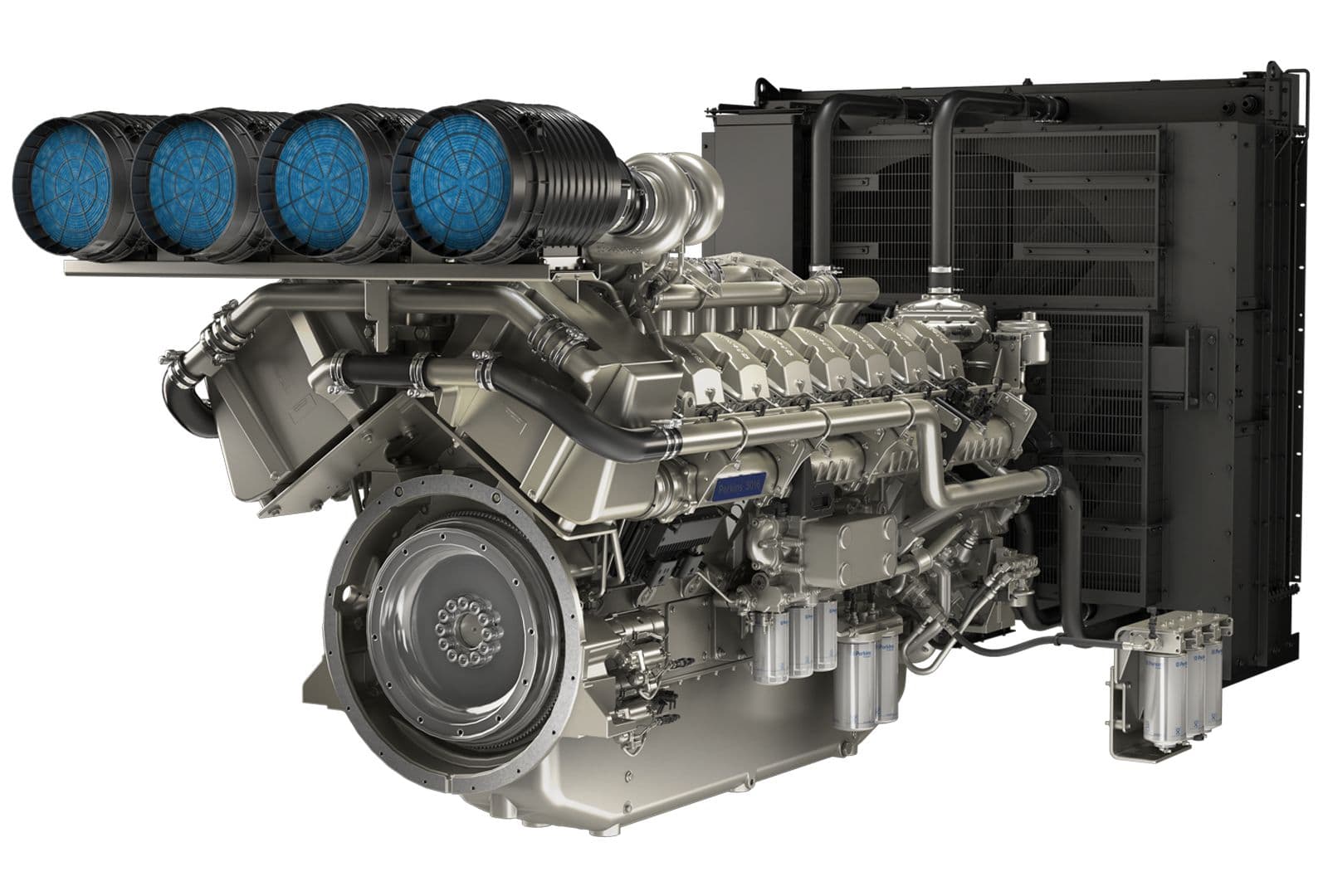

5016A-E61TRG Electro Unit

Name: 5016A-E61TRG Electro Unit
Brand: Perkins
SKU: 129660

رقم القطعة: 129660

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

5016A-E61TRG Electro Unit

Model	5016A-E61TRG
Series	5000 Series
Category	Electric Power Generation
Emission Standards / Emissions	Fuel Optimised
General / Number of Cylinders	16
General / Bore	160 mm (6.3 in)
General / Stroke	190 mm (7.5 in)
General / Displacement	61.1 l (3728.6 in³)
General / Compression Ratio	13.8:1
General / Aspiration	Turbocharged and air-to-water chargecooled
General / Combustion System	Direct injection
General / Rotation from Flywheel End	Anti-clockwise
General / Cooling System	Liquid
Total Power Range / Gross Mechanical Output	1249-2216 kW
Total Power Range / Typical Electrical Output	1400-2500 kVA (1120-2000 kWe)
Total Power Range / Rated Speed	1500 rpm
50 Hz Typical Electrical Output / Prime	1750-2250 kVA (1400-1800 kWe)
50 Hz Typical Electrical Output / Standby	1925-2500 kVA (1540-2000 kWe)
General / Aftertreatment	None
General / Typical Alternator Efficiency	95%
General / Switchable	No
General / Total Lubricating Oil Capacity	213 l (56.3 gal (US))
General / Total Coolant Capacity	95 l (25.1 gal (US))
Electro Unit Dimensions / Width	3675 mm (144.7 in)
Electro Unit Dimensions / Dry Weight	2076 mm (81.7 in)
Electro Unit Dimensions / Height	1260 mm (49.6 in)
Electro Unit Dimensions / Wet Weight	6416 kg (14147 lb)
