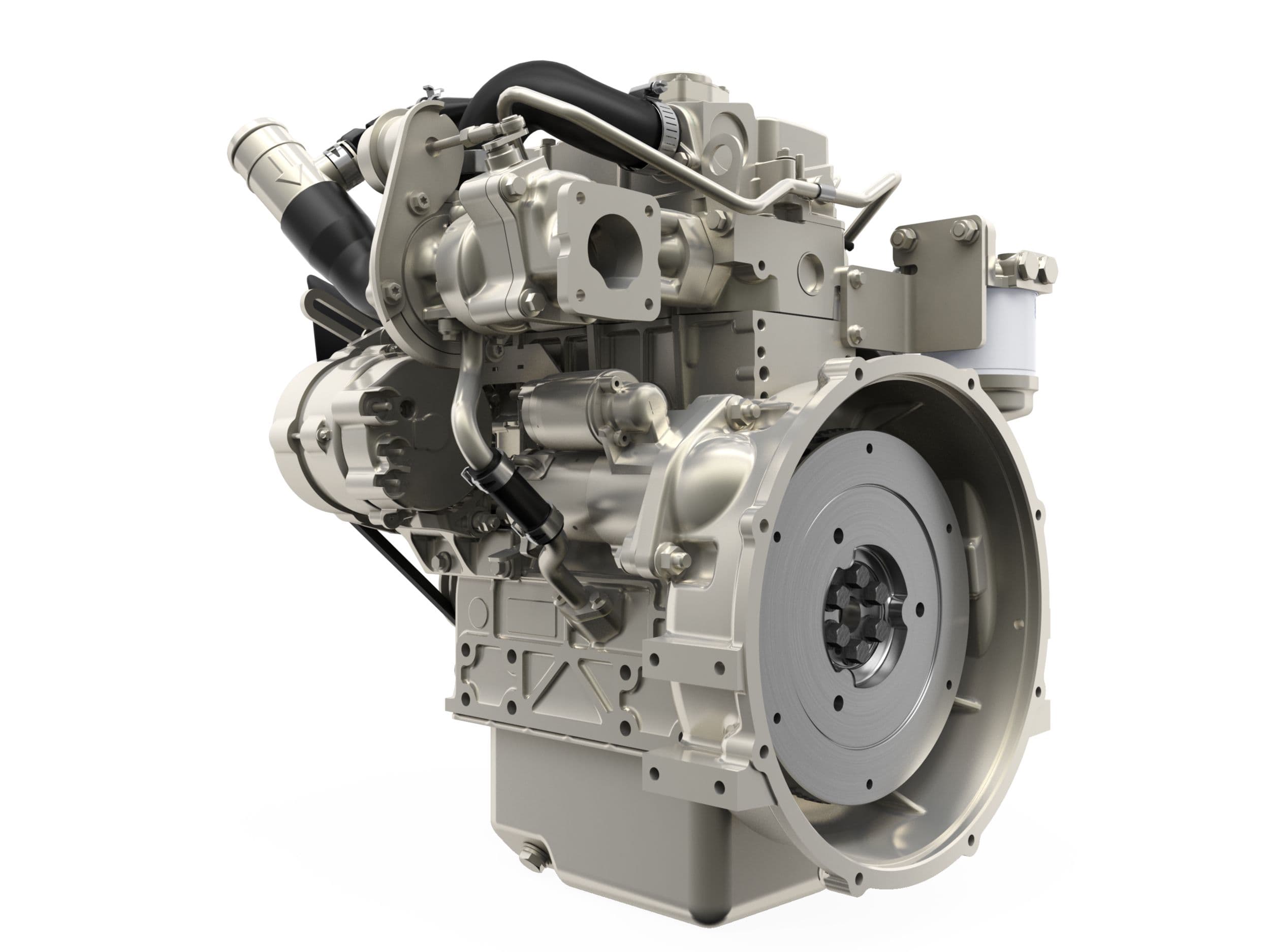

403F-11T Industrial Diesel Engine

Perkins

403F-11T Industrial Diesel Engine

رقم القطعة: 129460

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

403F-11T Industrial Diesel Engine

المواصفات

Model403F-11T
Series400 Series
CategoryIndustrial
Power Rating / Maximum Power17.8 kW (23.8 hp)
Power Rating / Maximum Torque82.3 Nm @ 1600 rpm (60.7 lb-ft @ 1600 rpm)
Power Rating / Rated Speed2800 rpm
Power Rating / Minimum Power17.8 kW (23.8 hp)
Emission Standards / EmissionsU.S. EPA Tier 4 Final
General / Number of Cylinders3 inline
General / Cycle4 stroke
General / Bore77 mm (3 in)
General / Stroke81 mm (3.2 in)
General / Displacement1.1 l (67 in³)
General / Compression Ratio22.1:1
General / AspirationTurbocharged
General / Combustion SystemIndirect injection
General / Rotation from Flywheel EndAnti-clockwise
General / Cooling SystemLiquid
Engine Dimensions / Length500 mm (19.7 in)
Engine Dimensions / Width513 mm (20.2 in)
Engine Dimensions / Height588 mm (23.1 in)
Engine Dimensions / Dry Weight108 kg (240 lb)
General / Aftertreatment-
General / Total Lubricating Oil Capacity4.4 l (1.16 gal (US))
