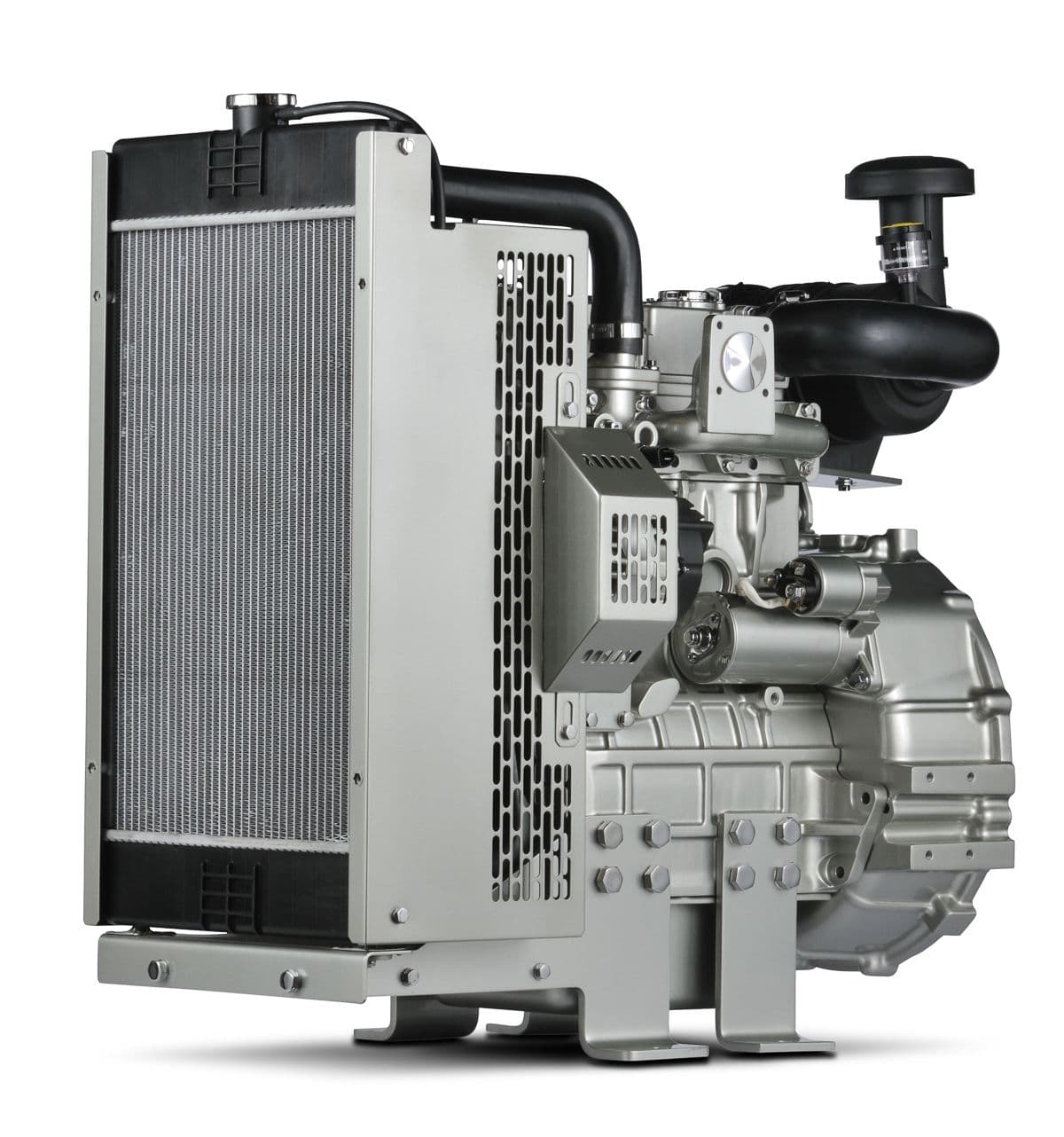

403J-11 Industrial Open Power Unit

Perkins

403J-11 Industrial Open Power Unit

رقم القطعة: 129700

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

403J-11 Industrial Open Power Unit

المواصفات

Model403J-11
Series400 Series
CategoryIndustrial
Power Rating / Maximum Power18.4 kW (24.6 hp)
Power Rating / Maximum Torque66.8 Nm @ 2100 rpm (49.2 lb-ft @ 2100 rpm)
Power Rating / Rated Speed2800 rpm
Power Rating / Minimum Power14.7 kW (19.7 hp)
Emission Standards / EmissionsEU Stage V
General / Number of Cylinders3 inline
General / Cycle4 stroke
General / Bore77 mm (3 in)
General / Stroke81 mm (3.2 in)
General / Displacement1.1 l (67 in³)
General / Compression Ratio23.0:1
General / AspirationNaturally aspirated
General / Combustion SystemIndirect injection
General / Rotation from Flywheel EndAnti-clockwise
General / Cooling SystemLiquid
Engine Dimensions / Length777 mm (30.6 in)
Engine Dimensions / Width438 mm (17.2 in)
Engine Dimensions / Height729 mm (28.7 in)
Engine Dimensions / Dry Weight129 kg (284.4 lb)
General / Aftertreatment-
