John Deere

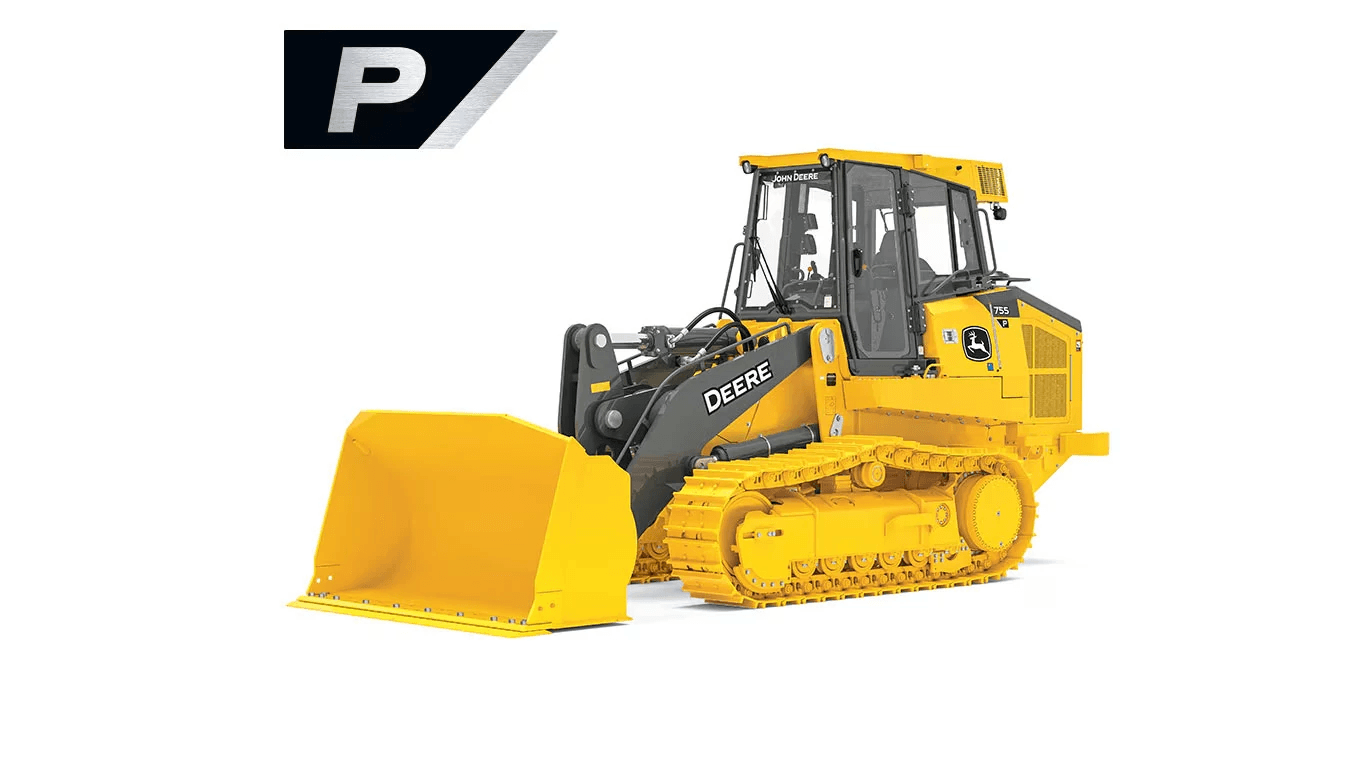

755 P-Tier Crawler Loader

Name: 755 P-Tier Crawler Loader
Brand: John Deere
SKU: JOHNDEERE-98B0T

رقم القطعة: JOHNDEERE-98B0T

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

755 P-Tier Crawler Loader

المواصفات

Displacement	6.8 L (414 cu. in.)
Engine Oil With Filter	24.6 L (6.5 gal.)
Model	755 P-Tier
Base Code	98B0T
Division	loaders
Product Family	crawler-loaders
SAE Net Rated Power	145 kW (194 hp) at 1,800 rpm
Net Peak Torque	942 Nm (695 ft.-lb.) at 1,400 rpm
System Relief Pressure	45 850 kPa (6,650 psi)
Forward and Reverse	10 km/h (6.2 mph)
Maximum (optional)	10 km/h (6.2 mph)
Maximum Flow at Unloaded High Idle	256 L/m (68 gpm)
Track Gauge	1880 mm (74 in.)
Grouser Width	560 mm (22 in.)
Track Length on Ground	2588 mm (102 in.)
Track Pitch	203 mm (8 in.)
Fuel Tank With Lockable Cap	326 L (86.0 gal.)
Cooling System With Recovery Tank	32 L (8.5 gal.)
Retrieval Hitch	67 kg (147 lb.)
Full-Length Rock Guards	218 kg (480 lb.)
Differential Pressure	1896 kPa (275 psi)
Diesel Exhaust Fluid (DEF) Reservoir	8.5 L (2.2 gal.)
Final-Drive Trash Guards	70 kg (155 lb.)
(8 ft.	6 in.) (33,867 lb.)
P Ripping Width	1880 mm (6 ft. 2 in.)
Retractable seat belt,	76 mm (3 in.) (conforms to SAE J386)
Pump Flow	246 L/m (65 gpm)
Hydraulic Reservoir and Filter	103.0 L (27.2 gal.)
General Purpose	2591 mm (130 in.) 2.5 m (3.2 cu. yd.) 1544 kg (3,404 lb.) 197 kN (44,287 lbf) 15 362 kg N/A
A Overall Height	3330 mm (10 ft. 11 in.)
reverse speed ratios of	100%, 115%, or 130% of forward ground speed; decelerator pedal controls ground speed to stop
Lift Cylinders	140 mm (5.5 in.) 80 mm (3.1 in.) 854 mm (33.6 in.)
Bucket-Dump Cylinder	180 mm (7.0 in.) 115 mm (4.5 in.) 551 mm (21.7 in.)
510-mm (20 in.) Grouser Width	26 294 cm (4,076 sq. in.)
560-mm (22 in.) Grouser Width	28 985 cm (4,493 sq. in.)
Multipurpose	2591 mm (130 in.) 2.0 m (2.6 cu. yd.) 1830 kg (4,035 lb.) 197 kN (44,287 lbf) 14 901 kg 11 110 kg
Transmission Reservoir With Filter	66.6 L (17.6 gal.)
Inner Final Drive (each)	8.0 L (2.1 gal.)
Outer Planetary (each)	15.6 L (4.1 gal.)
Base Weight	20 492 kg (45,178 lb.)
Lift-Cylinder Guards	25 kg (55 lb.)
Clam-Cylinder Protection for Multi-	50 kg (110 lb.)
B Tread Depth With Double-Bar Grouser	42.5 mm (1.7 in.)
C Length to Front of Track	5157 mm (16 ft. 11 in.)
E Track Gauge	1880 mm (6 ft. 2 in.)
F Ground Clearance (excludes grouser	432 mm (17 in.)
G Dumping Height at	45 deg. 2950 mm (116 in.) G Dumping Height at 45 deg. (bucket) 2959 mm (116.5 in.)
H Reach at	45 deg. 1100 mm (43 in.) G Dumping Height at 45 deg. (blade) 3662 mm (144 in.)
I Maximum Digging Depth Below Grade	167 mm (6.6 in.) H Reach at 45 deg. (bucket) 1009 mm (39.7 in.)
J Maximum Operating Height	5592 mm (220 in.) H Reach at 45 deg. (blade) 406 mm (16 in.)
K Maximum Height of Hinge Pin	4080 mm (160.6 in.) I Maximum Digging Depth Below Grade 226 mm (8.9 in.)
L Height of Hinge Pin, Transport	457 mm (18 in.) J Maximum Operating Height (open) 5447 mm (215.5 in.)
M Width of Bucket	2591 mm (102 in.) J Maximum Operating Height (closed) 6223 mm (245 in.)
N Width of Opening	1239 mm (48.8 in.)
Ripper Weight	884 kg (1,950 lb.)
O Ground Clearance Below Toolbar	166 mm (6.5 in.)
Q Toolbar Width	2118 mm (83.4 in.)
R Lifting Height	800 mm (31.5 in.)
S Ripping Depth	254 mm (10 in.)
T Additional Overall Length, Raised	608 mm (24 in.)
T Additional Overall Length, Lowered	604 mm (23.8 in.)
U Distance Between Teeth	940 mm (3 ft. 1 in.)
V Approach Angle, Ripper Raised	17 deg.
and a	79-kg (175 lb.) operator. For complete details, contact your John Deere dealer.
