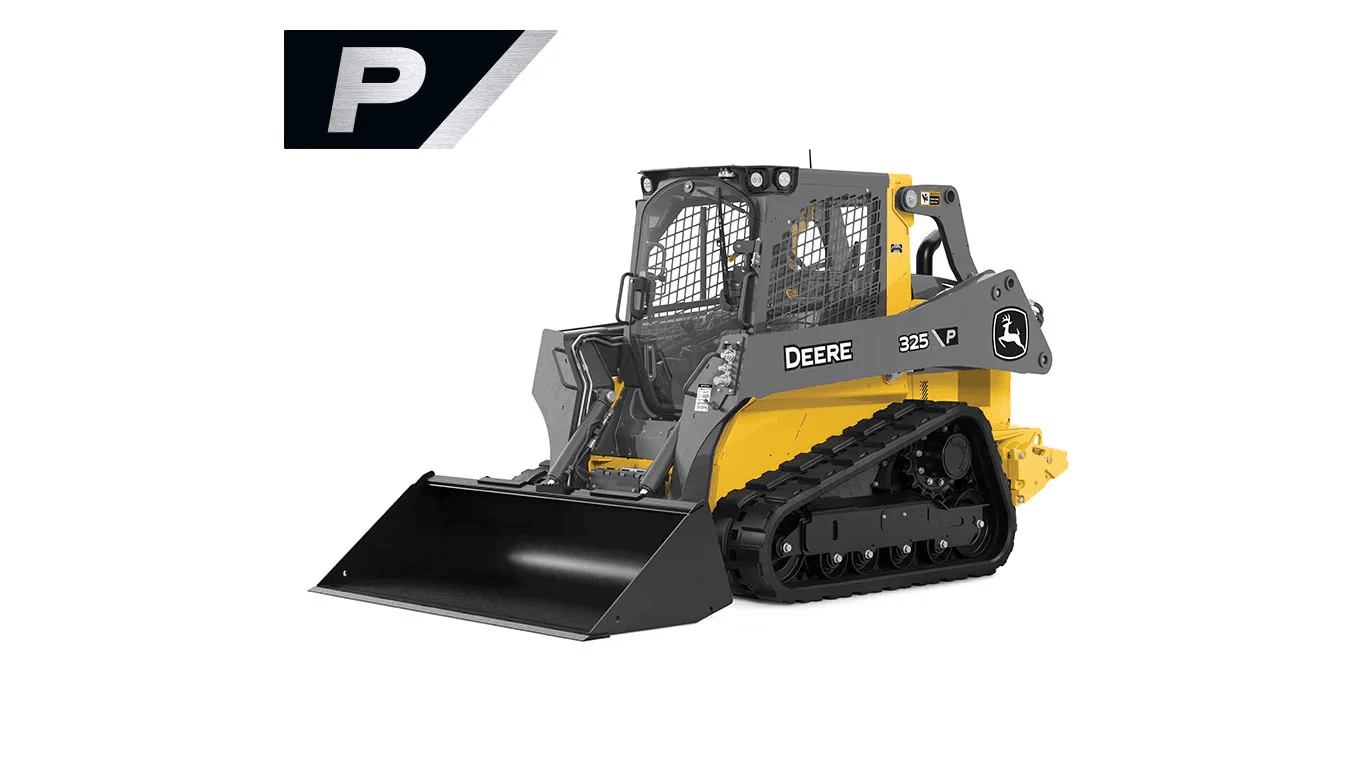

325 P-Tier Compact Track Loader

John Deere

325 P-Tier Compact Track Loader

رقم القطعة: JOHNDEERE-00Z0T

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

325 P-Tier Compact Track Loader

المواصفات

Displacement3.3 L (203 cu. in.) 3.3 L (203 cu. in.)
Fuel Tank79 L (21 gal.)
Model325 P-Tier
Base Code00Z0T
Divisionloaders
Product Familycompact-track-loaders
High47.4 kW (63.6 hp)
Standard320 mm (12.6 in.)
Optional400 mm (15.8 in.)
Boom,2384 kg (5,250 lb.)
Bucket,3973 kg (8,750 lb.)
Net Power (SAE J1349 / ISO 9249)52.5 kW (70 hp) at 2,500 rpm 52.7 kW (71 hp) at 2,500 rpm
Peak Torque280 Nm (207 lb.-ft.) at 1,800 rpm 284 Nm (209 lb.-ft.) at 1,800 rpm
Rated Engine Speed2,500 rpm 2,500 rpm
Torque Rise34% at 1,800 rpm 36% at 1,800 rpm
2 Speed, High13.2 km/h (8.2 mph)
System Pressure at Couplers23 787 kPa (3,450 psi)
A Length Without Bucket2.85 m (112.3 in.) (9 ft. 4 in.)
B Length With Foundry Bucket3.46 m (136.3 in.) (11 ft. 4 in.) 325 P-TIER COMPACT
D Height to Top of ROPS2.06 m (81.1 in.) (6 ft. 9 in.)
E Height to Hinge Pin3.20 m (126.1 in.) (10 ft. 6 in.)
F Dump Height With Foundry Bucket2.59 m (102.1 in.) (8 ft. 6 in.)
With Foundry Bucket0.75 m (29.7 in.)
With Construction Bucket0.94 m (37 in.) (3 ft. 1 in.)
Tipping Load3360 kg (7,400 lb.)
2 Speed, Low8.4 km/h (5.2 mph)
Total With High-Flow Option120 L/m (32 gpm)
based on a unit with standard equipment, full fuel tank, and79-kg (175 lb.) operator. For complete details, contact your John Deere dealer.
With Standard320-mm (12.6 in.) Track 39.3 kPa (5.7 psi)
With Optional400-mm (15.8 in.) Track 32.4 kPa (4.7 psi)
I Angle of Departure30.5 deg.
J Front Turn Radius With Foundry Bucket2.03 m (80 in.) (6 ft. 8 in.)
K Dump Angle (full lift height)41 deg. L
L Bucket Rollback (ground level)32 deg.
At 35% Tipping Load1176 kg (2,590 lb.)
At 50% Tipping Load1680 kg (3,700 lb.)
Rated Maximum Gross Power (ISO 14396)54.9 kW (74 hp) at 2,500 rpm 55.0 kW (74 hp) at 2,500 rpm
H Ground Clearance0.24 m (9.3 in.)
