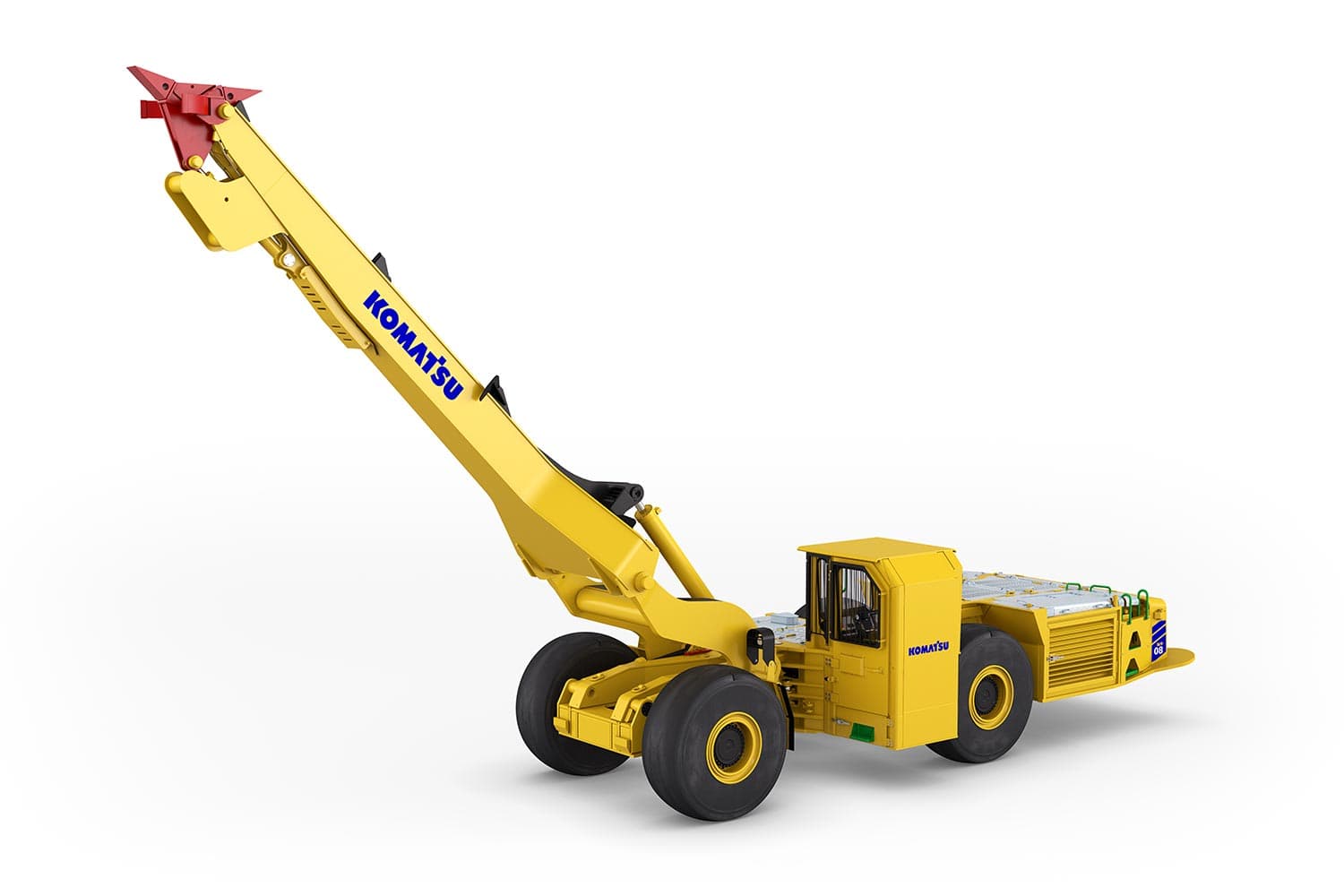

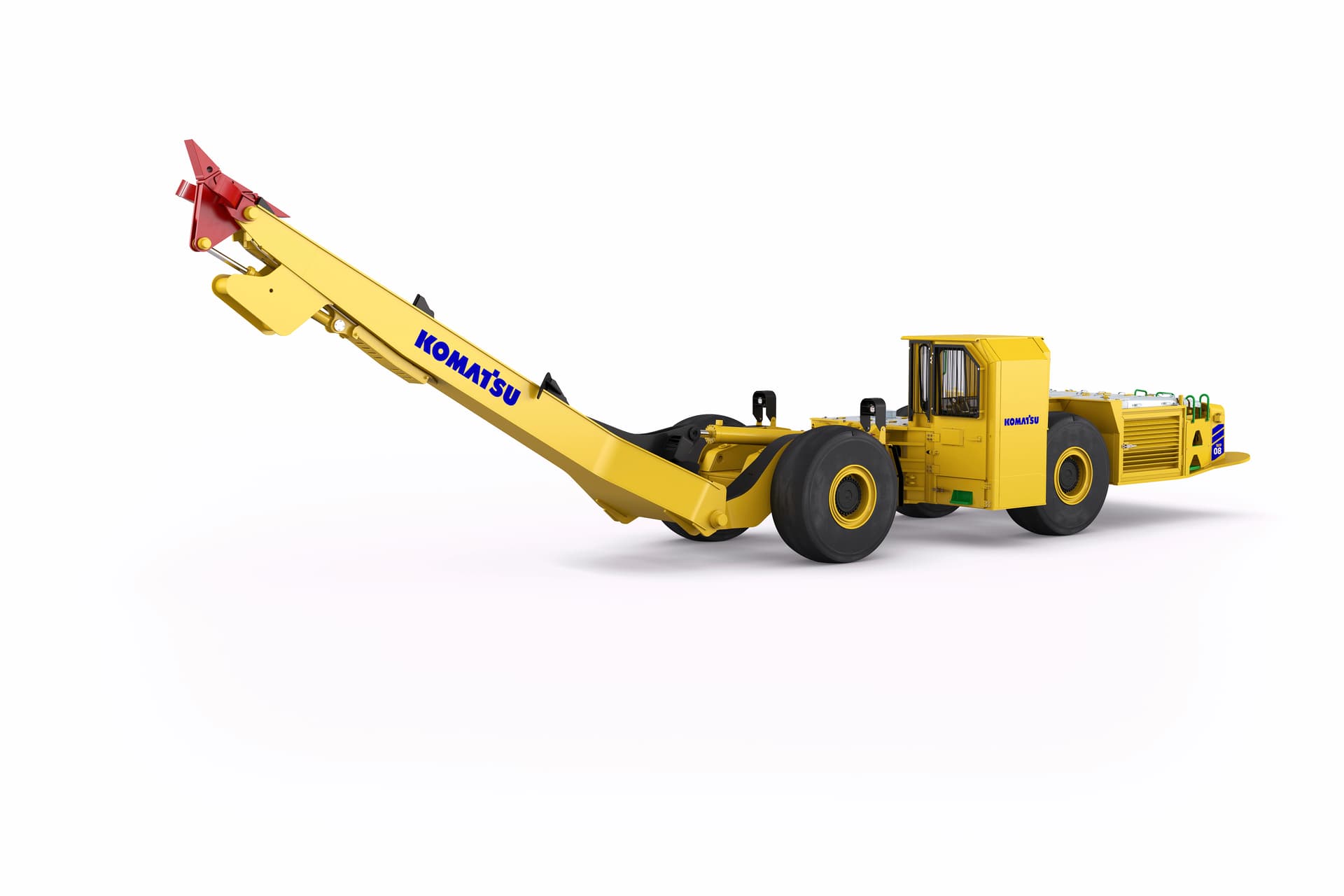

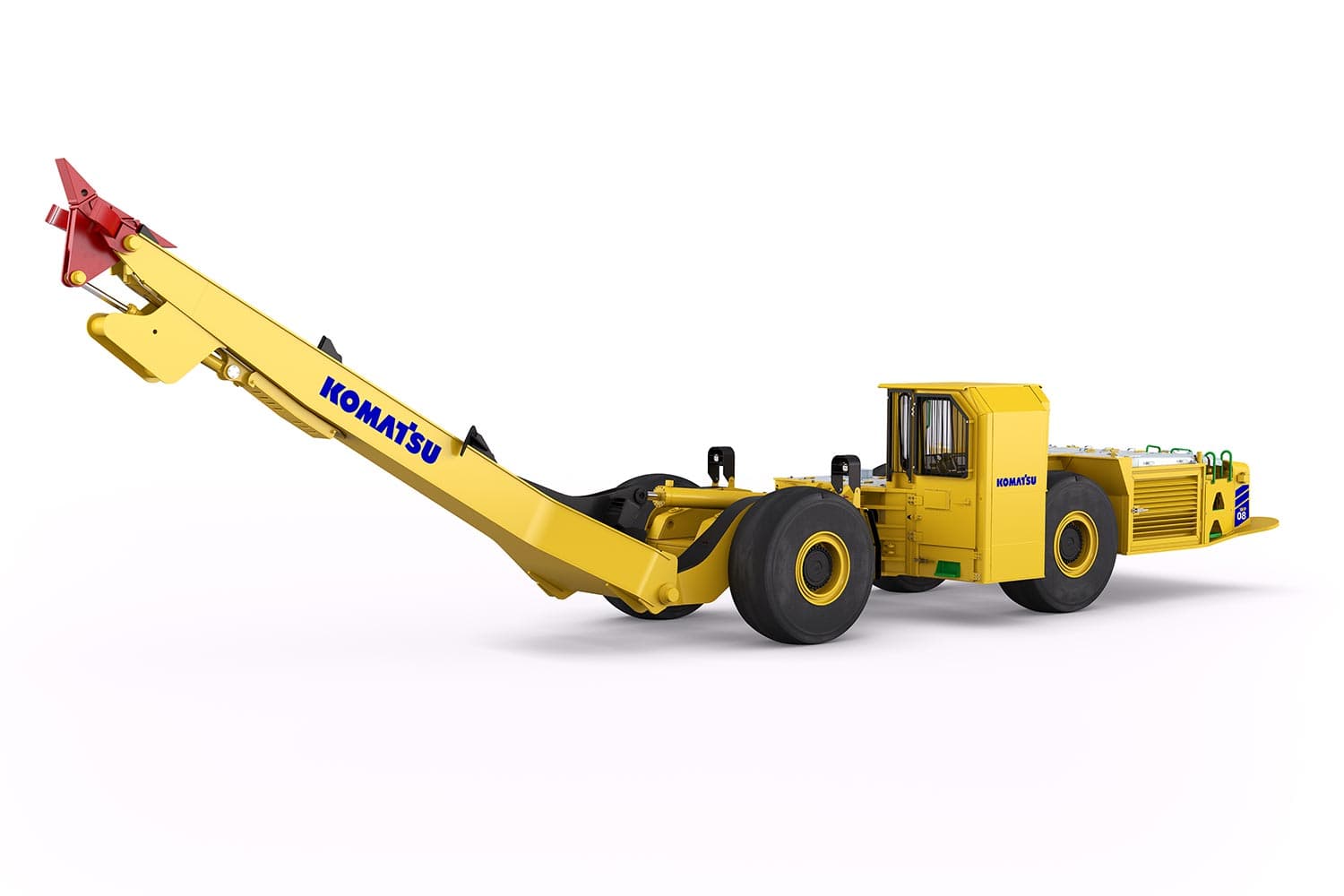

WP08
رقم القطعة: KOMATSU-WP08
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WP08
المواصفات
| Controls | Symbols, critical alarms and warning lights on display. Audible and visible alarms. |
|---|---|
| Operating weight (kg) | 33 660 |
| Operating weight (lbs) | 74,208 |
| Engine model | Deutz TCD 6.1 L06 |
| Cooling Type | Liquid-cooled |
| Batteries | 2x12V, 95Ah |
| Alternator | 28VDC, 100A |
| Steering control | Electric joystick controlled |
| Transmission | Hydrostatic drivetrain |
| Fuel tank capacity (L) | 300 |
| Fuel tank capacity (US gal) | 79.3 |
| Scaling height (in) | 256/296 |
| Scaling height (mm) | 6 512/7 507 |
| Engine rated power (standard)(HP) | 241 |
| Engine rated power (standard)(kW) | 180 |
| Starter | 4 kW, 24V heavy duty |
| Driving and working lights | 2 forward, 2 rear, 1 side, 3 working - LED type |
| Boom hoisting time (s) | 9.0 |
| Boom lowering time (s) | 8.0 |
| Scaling arm raising time (s) | 8.0 |
| Scaling arm lowering time (s) | 7.0 |
| Front and rear frames | Welded steel construction |
| Material | S 355J2 / S690 |
| Rear axle oscillation angle | 10 degrees |
| Tires | 23.50 - 25 L3 (As applications vary, local tire supplier should be consulted for appropriate tire.) |
| Front and rear | Kessler D91 |
| Differential, front | Open |
| Differential, rear | Open |
| Brakes | Multi-disc spring brake SAHR, hydraulic actuated, externally cooled |
| Engine output (HP) | 241 @ 2,300 rpm |
| Engine output (kW) | 180 @ 2 300 rpm |
| Certification | EPA Tier 4/EU Stage V |
| Exhaust system | DPF/SCR |
| Turning time: right (s) | 2.8 |
| Front axle (kg) | 16 660 |
| Turning time: left (s) | 2.8 |
| Front axle (lbs) | 36,729 |
| Rear axle (kg) | 17 000 |
| Rear axle (lbs) | 37,479 |
| Machine boom hoist cylinder | Two single stage, double acting cylinders |
| Steer cylinder | Two single stage, double acting cylinders |
| Hydraulic tank volume (US gal) | 143 |
| Hydraulic tank volume (L) | 540 |
| Details of hydraulics system | Hydrostatic drive with variable displacement EP piston pumps and motors. Working hydraulics with variable displacement piston pump with load sensing closed center circuit design for optimal efficiency, steering has priority over working hydraulics. |
| Boom controls | Electric joystick controlled |
| Scaling tool cylinder | One single stage, double acting cylinder |
| Scaling boom hoist cylinder | One single stage, double acting cylinder |
| Instrument panel | Digital 12'' touch display, illuminated buttons, camera display |
| Brake system | Service brakes are spring-applied, hydraulically released, wet multi-disc brakes on all four wheel ends. The SAHR brakes also function as emergency and parking brakes. |
| Scaling height (roof)(mm) | 2 000-6 512 (6 m scaling) or 2 000-7 507 (8 m scaling) |
| Scaling height (roof)(in) | 79-256 (6 m scaling) or 79-296 (8 m scaling) |
| Scaling height (wall)(mm) | 500-6 250 (6 m scaling) or 500-7 250 (8 m scaling) |
| Scaling height (wall)(in) | 20-246 (6 m scaling) or 20-285 (8 m scaling) |
| Max. scaling force (kN) | 100 |
| Typical compressive strength up to (Mpa) | 50 |
