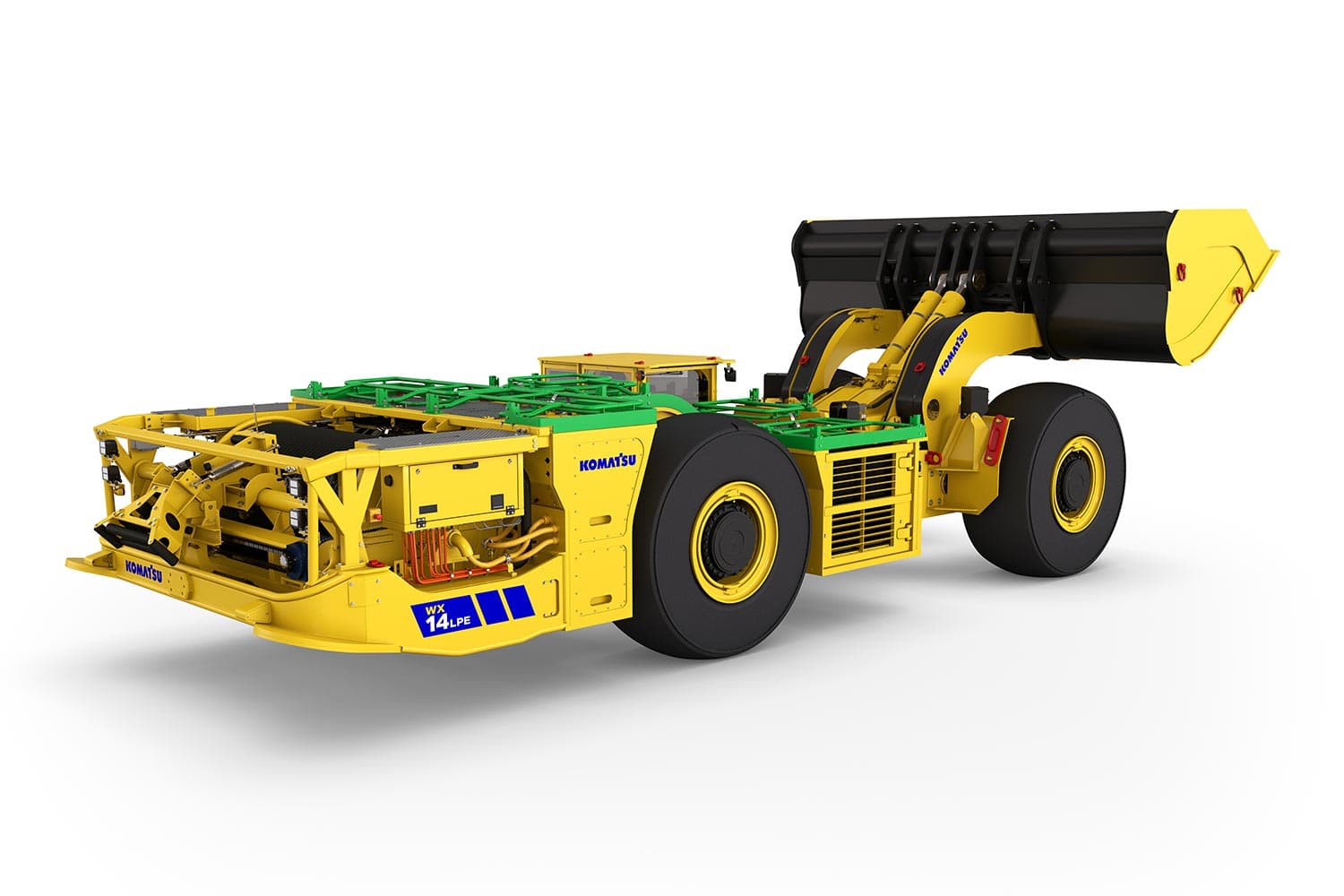

WX14LPE
رقم القطعة: KOMATSU-WX14LPE
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WX14LPE
المواصفات
| Operating weight (kg) | 46 916 |
|---|---|
| Operating weight (lbs) | 103432 |
| Steering control | Two single stage, double acting cylinders |
| Tractive effort (lbf) | 71939 |
| Transmission | Electric drive |
| Tramming capacity (kg) | 14 000 |
| Tramming capacity (lbs) | 30865 |
| Bucket volume (m³) | 9.7 |
| Bucket volume (yd³) | 12.69 |
| Cable length (ft) | 1083 |
| Cable length (m) | 330 |
| Cable diameter (in) | 2.04 |
| Cable diameter (mm) | 51.8 |
| Total loaded weight (lbs) | 134297 |
| Total loaded weight (kg) | 60 916 |
| Front and rear frames | Welded steel construction, modular design |
| Front axle weight without load (lbs) | 46936 |
| Material | S 355J2 / S690 |
| Front axle weight without load (kg) | 21 290 |
| Rear axle oscillation angle | +/- 8 degrees |
| Rear axle weight without load (lbs) | 56496 |
| Tires | 26.5R29 * |
| Rear axle weight without load (kg) | 25 626 |
| Front and rear | D106 |
| Front axle weight with load (lbs) | 89940 |
| Differential, front | Open |
| Front axle weight with load (kg) | 40 796 |
| Differential, rear | Open |
| Rear axle weight with load (kg) | 20 210 |
| Brakes | Externally cooled, multi-disc, springapplied hydraulic release (SAHR) brakes |
| Rear axle weight with load (lbs) | 44555 |
| High voltage (V) | 1000 |
| Axles | Kessler |
| Powertain footnote | *As applications vary, local tire supplier should be consulted for appropriate tire. |
| Turning time: right (s) | 3 |
| Turning time: left (s) | 3 |
| Grade unloaded (%) | 0, 5, 10, 12.5, 14.3, 20 |
| Direct electric drive unloaded (km/h) | 16, 6.9, 4.9, 4, 3.6, 2.8 |
| Direct electric drive unloaded (mph) | 9.94, 4.29, 3.04, 2.49, 2.49, 2.24, 1.74 |
| Grade loaded (%) | 0, 5, 10, 12.5, 14.3, 20 |
| Steer cylinder | Two single stage, double acting cylinders |
| Direct electric drive loaded (km/h) | 16, 10, 6.3, 5.4, 4.7, 3.6 |
| Hydraulic tank volume (US gal) | 159 |
| Direct electric drive loaded (mph) | 9.94, 6.21, 3.91, 3.36, 2.92, 2.24 |
| Hydraulic tank volume (L) | 600 |
| Continuous power traction motor (kW) | 172 |
| Continuous power traction motor (HP) | 231 |
| Peak power traction motor (HP) | 603 |
| Peak power traction motor (kW) | 450 |
| Continuous power auxillary motor (kW) | 145 |
| Instrument panel | Digital 12'' or 0.3 m touch display Illuminated buttons Camera display |
| Continuous power auxillary motor (HP) | 194 |
| Peak power auxillary motor (kW) | 200 |
| Peak power auxillary motor (HP) | 268 |
| System design | Working hydraulics with variable displacement piston pump with load sensing closed center circuit design for optimal efficiency, steering has priority over working hydraulics. |
| Bucket/boom control | One single stage, double acting cylinder with rod guard |
| Bucket dump cylinder | One single stage, double acting cylinder with rod guard |
| Boom hoist cylinder | Two single stage, double acting cylinders |
| Hydraulic breakout force lift (lbf) | 44962 |
| Hydraulic breakout force lift (kN) | 200 |
| Hydraulic breakout force tilt (lbf) | 44962 |
| Hydraulic breakout force tilt (kN) | 200 |
| Tractive effort (kN) | 320 |
| Maximum admissible gradient (%) | 28 |
| Standard bucket volume (m³) | 9.6 |
| Standard bucket volume (yd³) | 12.56 |
| Dump time (s) | 5.2 |
| Raising time (s) | 6.8 |
| Lowering time (s) | 4.6 |
