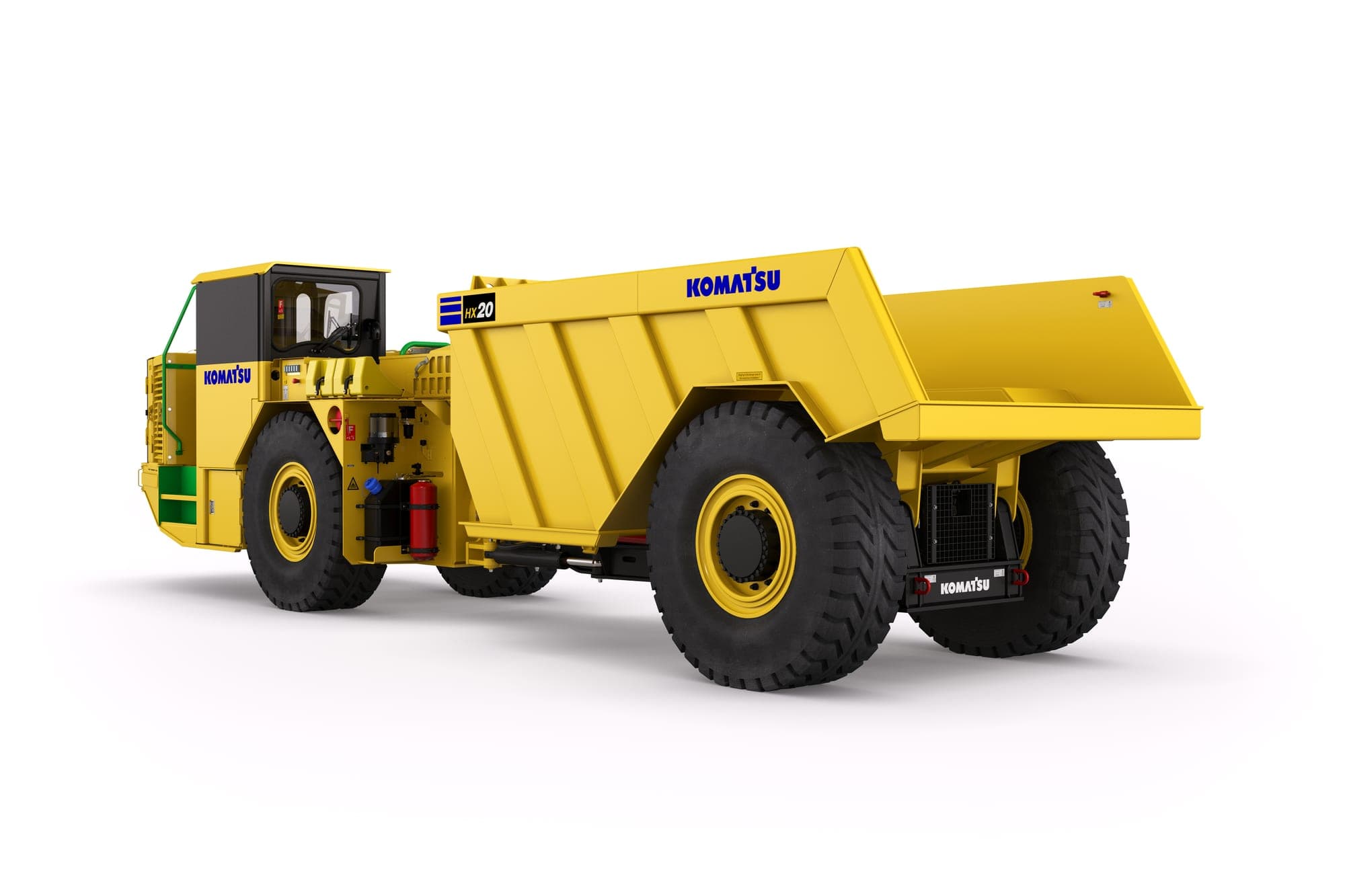

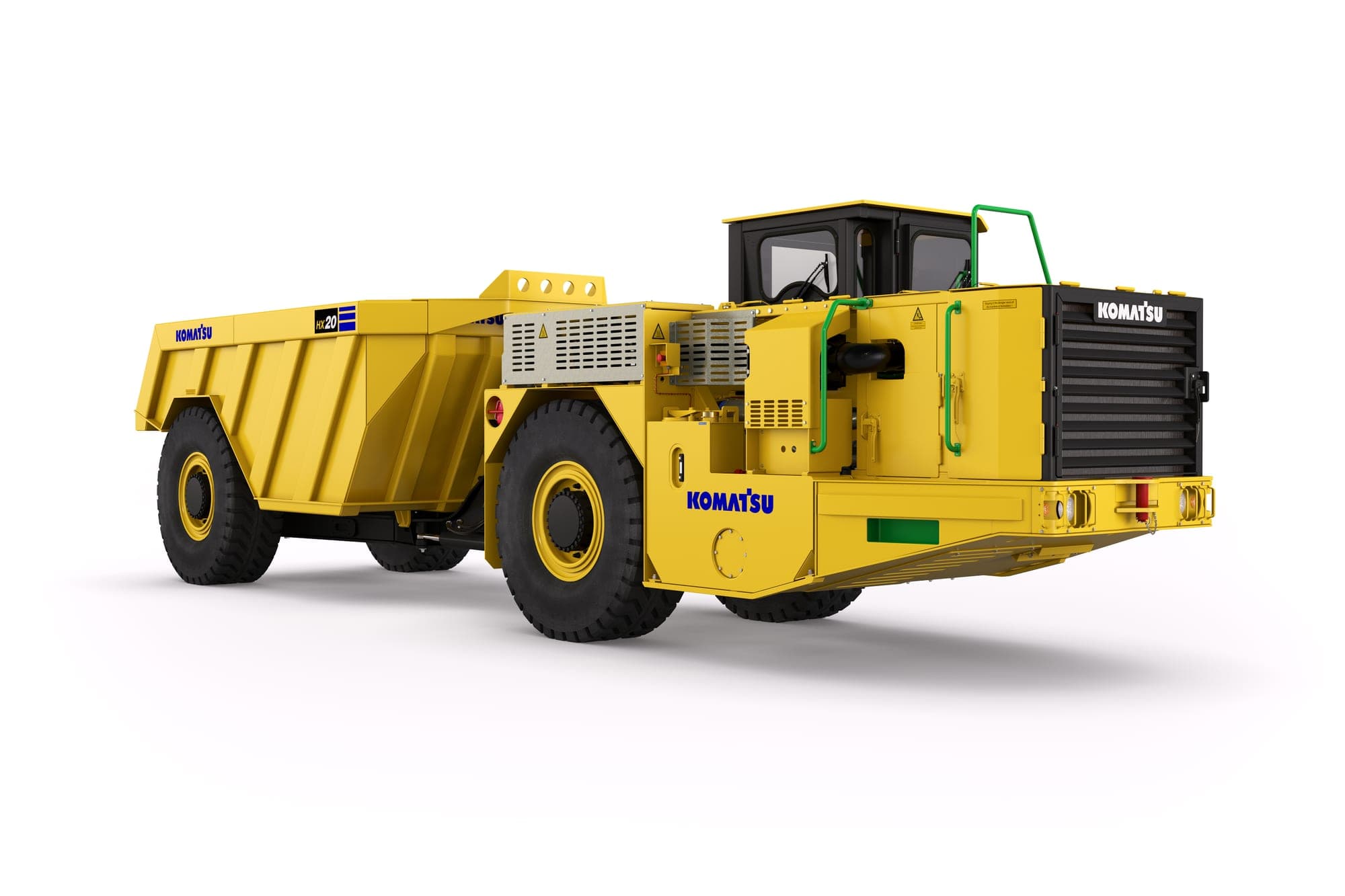

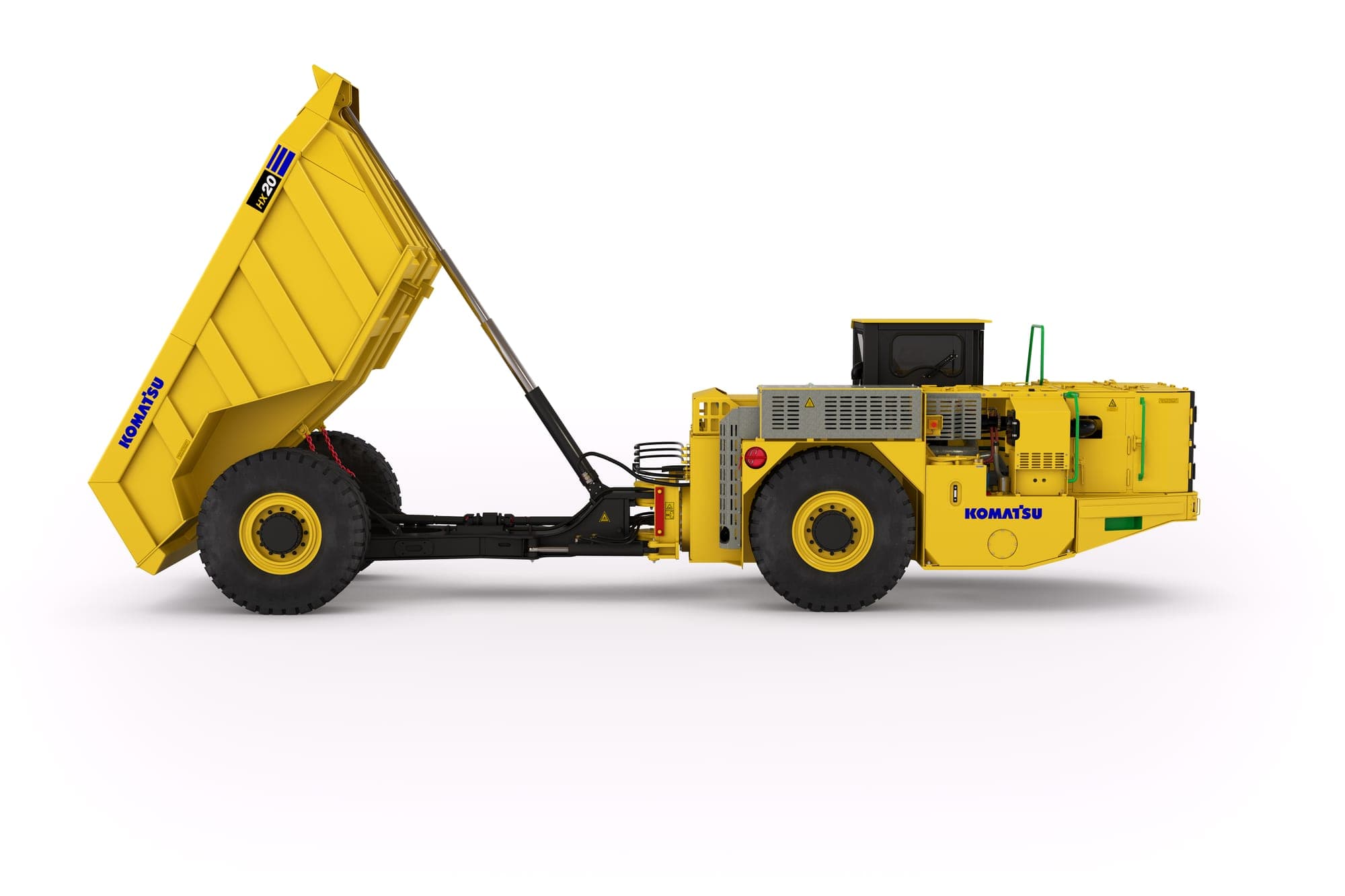

HX20
رقم القطعة: KOMATSU-HX20
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
HX20
المواصفات
| Operating weight (kg) | 18 955 |
|---|---|
| Operating weight (lbs) | 41,701 |
| Voltage | 24V |
| Cooling Type | Liquid |
| Batteries | 2 x 12 V/140Ah |
| Alternator | 55A |
| Transmission | Dana R32000 |
| Fuel tank capacity (L) | 280 |
| Fuel tank capacity (US gal) | 74 |
| Total loaded weight (lbs) | 85,701 |
| Total loaded weight (kg) | 38 955 |
| Front and rear frames | Welded steel box construction |
| Material | S690, S355 |
| Tires | 16.00 - 25 |
| Front and rear | Kessler D81 |
| Differential, rear | Open |
| Brakes | Spring apply, hydraulic release on wheel ends |
| Turning time: right (s) | 3.5 |
| Front axle (kg) | 20 150 |
| Turning time: left (s) | 3.5 |
| Front axle (lbs) | 44,330 |
| Rear axle (kg) | 18 850 |
| Rear axle (lbs) | 41,371 |
| Steer cylinder | Two cylinders, double acting, single stage |
| Brake system | Service brakes are enclosed spring applied, hydraulically released, liquid cooled multidisk on all four wheel ends. The service brakes also function as emergency and park brakes. Brakes will apply upon loss of hydraulic pressure or electric power |
| Payload capacity (kg) | 20 000 |
| Payload capacity (lbs) | 44,000 |
| Engine (standard) | Cummins QSB6.7 |
| Output (standard)(kW) | 194 kW @ 2 300 rpm |
| Output (standard)(HP) | 260 HP @ 2,300 rpm |
| Front axle (kg) (Weights) | 14 850 |
| Engine (optional) | Cummins QSB6.7 |
| Front axle (lbs) (Weights) | 32,670 |
| Output (optional)(HP) | 284 HP @ 2,300 rpm |
| Rear axle (kg) (Weights) | 4 105 |
| Output (optional)(kW) | 209 kW @ 2 300 rpm |
| Rear axle (lbs) (Weights) | 9,031 |
| Air filtration | Dry air filter |
| Powertrain exhaust system | Diesel particulate filter |
| Converter | Dana CL8000 with lockup |
| Shifting | Electric |
| Speeds | 4 forward / 4 rear |
| Differentials | Open |
| Hoist cylinder | One cylinder, single acting, four stage |
| 1st gear (kph) | Unloaded: 5 (0% grade), 4.9 (5% grade), 4.8 (10% grade), 4.8 (12.5% grade), 4.8 (14.3% grade), 4.8 (20% grade). Loaded: 4.9 (0% grade), 4.8 (5% grade), 4.8 (10% grade), 4.8 (12.5% grade), 4.7 (14.3% grade), 4.7 (20% grade). |
| 2nd gear (kph) | Unloaded: 10.1 (0% grade), 10 (5% grade), 9.9 (10% grade), 9.9 (12.5% grade), 9.8 (14.3% grade), 4.8 (20% grade). Loaded: 10.1 (0% grade), 9.8 (5% grade), 9.6 (10% grade), 12.5 (8.3% grade), 6.6 (14.3% grade), 4.7 (20% grade). |
| Raising motion time (s) | 7 |
| Lowering motion time (s) | 8 |
| 3rd gear (kph) | Unloaded: 17.5 (0% grade), 17.1 (5% grade), 16.8 (10% grade), 16.2 (12.5% grade), 15.3 (14.3% grade), 10.1 (20% grade). Loaded: 17.4 (0% grade), 16.6 (5% grade), 8.7 (10% grade). |
| Haulage capacity (kg) | 20 000 |
| Haulage capacity (lbs) | 44,000 |
| User interface for control system | Multicolor touch display |
| Engine certification (standard) | EPA Tier 3 / EU Stage IIIA |
| Engine certification (optional) | EPA Tier 4F / EU Stage V |
| Number of flashing beacons | 1 |
| Number of front lights | 2 |
| Number of rear lights | 2 |
| 4th gear (kph) | Unloaded: 29.9 (0% grade), 29.8 (5% grade), 18.4 (10% grade). Loaded: 27.2 (0% grade). |
| Volume, nominal heaped (m^3) | 7.5 - 12.5 |
| Volume, nominal heaped (yd^3) | 9.8 - 16.3 |
| Height, laden (at cabin) (in) | 101 |
| Dump box capacity (m^3) | 10 |
| Height, laden (at cabin) (mm) | 2 555 |
| Dump box capacity (yd^3) | 13 |
| Number of brake lights | 2 |
| Number of turn signals | 4 |
| Hydraulic (L) | 230 |
