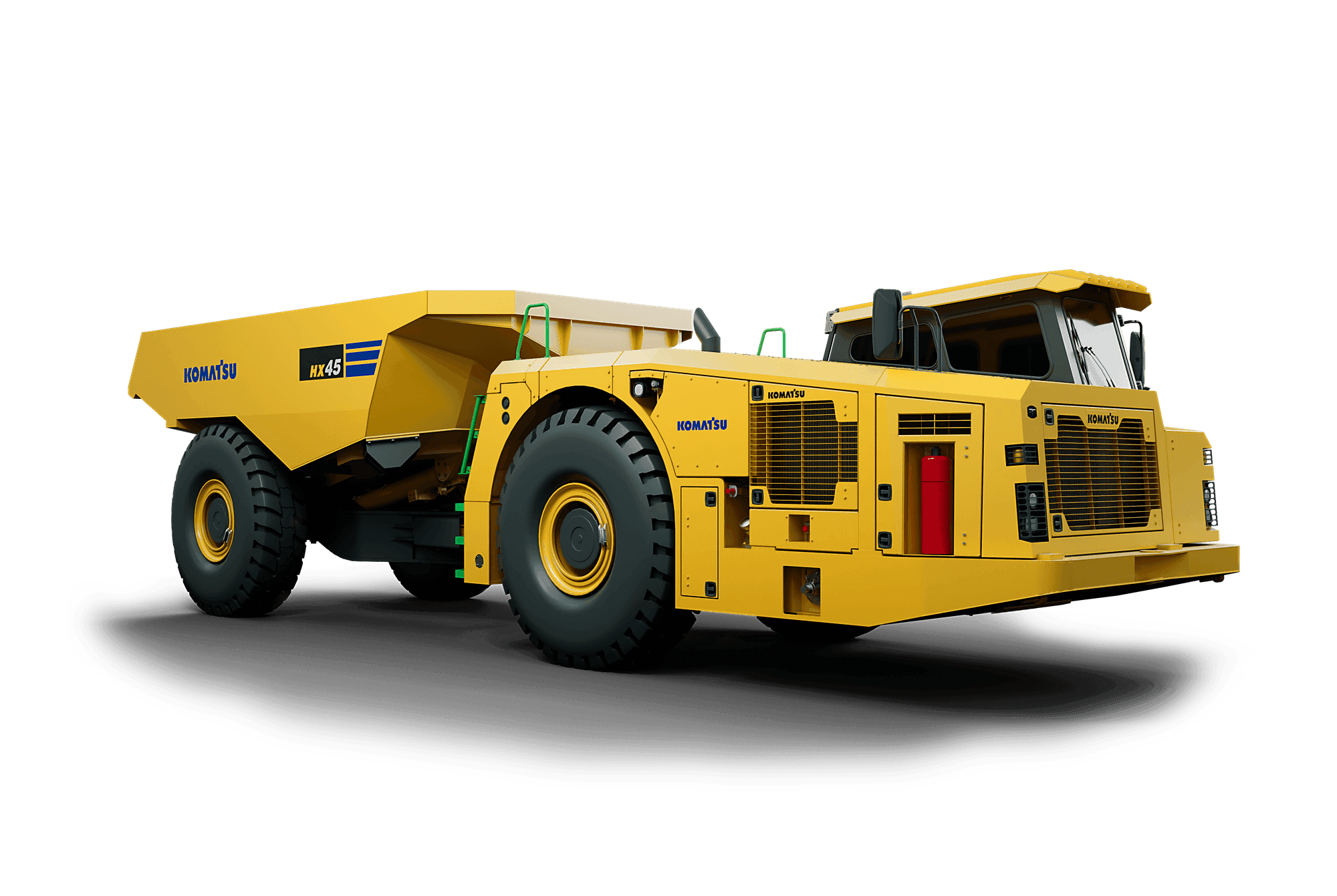

HX45
رقم القطعة: KOMATSU-HX45
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
HX45
المواصفات
| Operating weight (kg) | 37 900 |
|---|---|
| Operating weight (lbs) | 83,380 |
| Voltage | 24V |
| Cooling Type | Liquid |
| Batteries | 2 x 12V/180Ah |
| Alternator | 150A |
| Transmission | Dana 8000 |
| Fuel tank capacity (L) | 750 |
| Fuel tank capacity (US gal) | 198 |
| Tramming capacity (kg) | 45 000 |
| Tramming capacity (lbs) | 99000 |
| Total loaded weight (lbs) | 182,380 |
| Total loaded weight (kg) | 82 900 |
| Front and rear frames | Welded steel box construction |
| Material | S690, S355 |
| Tires | 29.5R25 lugged tires |
| Front and rear | Kessler D106 |
| Differential, front | Open |
| Differential, rear | Open |
| Brakes | Spring apply, hydraulic release on wheel ends |
| Turning time: right (s) | 3 |
| Front axle (kg) | 39 000 |
| Turning time: left (s) | 3 |
| Front axle (lbs) | 85,800 |
| Rear axle (kg) | 43 900 |
| Rear axle (lbs) | 96,580 |
| Brake system | Service brakes are enclosed spring applied, hydraulically released, liquid cooled multidisk on all four wheel ends. The service brakes also function as emergency and park brakes. Brakes will apply upon loss of hydraulic pressure or electric power |
| Engine (standard) | Mercedes OM473 |
| Oscillation angle (deg) | +/- 8 |
| Output (standard)(kW) | 460 kW @ 1 600 rpm |
| Output (standard)(HP) | 617 HP @ 1,600 rpm |
| Front axle (kg) (Weights) | 27 200 |
| Engine (optional) | Mercedes OM473 |
| Front axle (lbs) (Weights) | 59,840 |
| Output (optional)(HP) | 617 HP @ 1,600 rpm |
| Rear axle (kg) (Weights) | 10 700 |
| Output (optional)(kW) | 460 kW @ 1 600 rpm |
| Rear axle (lbs) (Weights) | 23,540 |
| Powertrain exhaust system | Diesel oxidation catalyst (DOC) Tier 3 |
| Converter | Dana CL8000 with lockup |
| Shifting | Electric |
| Speeds | 7 forward/2 rear |
| 1st gear (mph) | Unloaded: 3.17 (0% grade), 3.17 (5% grade), 3.17 (10% grade), 3.11 (12.5% grade), 3.11 (14.3% grade), 3.11 (20% grade). Lockup loaded: 3.17 (0% grade), 3.17 (5% grade), 3.17 (10% grade), 3.11 (12.5% grade), 3.11 (14.3% grade), 3.11 (20% grade). |
| Hoist cylinder | Two cylinders, double acting, single stage |
| 1st gear (kph) | Unloaded: 5.1 (0% grade), 5.1 (5% grade), 5.1 (10% grade), 5 (12.5% grade), 5 (14.3% grade), 5 (20% grade). Lockup loaded: 5.1 (0% grade), 5.1 (5% grade), 5.1 (10% grade), 5 (12.5% grade), 5 (14.3% grade), 5 (20% grade). |
| 2nd gear (kph) | Unloaded: 6.7 (0% grade), 6.7 (5% grade), 6.6 (10% grade), 6.6 (12.5% grade), 6.6 (14.3% grade), 6.6 (20% grade). Lockup loaded: 6.7 (0% grade), 6.7 (5% grade), 6.6 (10% grade), 6.6 (12.5% grade), 6.6 (14.3% grade), 6.6 (20% grade). |
| Raising motion time (s) | 15 |
| 2nd gear (mph) | Unloaded: 4.16 (0% grade), 4.16 (5% grade), 4.10 (10% grade), 4.10 (12.5% grade), 4.10 (14.3% grade), 4.10 (20% grade). Lockup loaded: 4.16 (0% grade), 4.16 (5% grade), 4.10 (10% grade), 4.10 (12.5% grade), 4.10 (14.3% grade), 4.10 (20% grade). |
| Lowering motion time (s) | 13 |
| 3rd gear (mph) | Unloaded: 5.65 (0% grade), 5.65 (5% grade), 5.65 (10% grade), 5.59 (12.5% grade), 5.59 (14.3% grade), 5.59 (20% grade). Lockup loaded: 5.65 (0% grade), 5.65 (5% grade), 5.65 (10% grade), 5.59 (12.5% grade), 5.59 (14.3% grade), 5.59 (20% grade). |
| 3rd gear (kph) | Unloaded: 9.1 (0% grade), 9.1 (5% grade), 9.1 (10% grade), 9 (12.5% grade), 9 (14.3% grade), 9 (20% grade). Lockup loaded: 9.1 (0% grade), 9.1 (5% grade), 9.1 (10% grade), 9 (12.5% grade), 9 (14.3% grade), 9 (20% grade). |
| Haulage capacity (kg) | 45 000 |
| Haulage capacity (lbs) | 99,000 |
| User interface for control system | Multicolor touch display |
| Engine certification (standard) | EPA Tier 3 / EU Stage IIIA |
| Engine certification (optional) | EPA Tier 4F / EU Stage V |
| Standard box volume (m^3) | 21 |
| Number of flashing beacons | 1 |
| Standard box volume (yd^3) | 27.5 |
| Number of front lights | 5 |
| Dimensions (in) | 430 x 121 x 109 |
| Number of rear lights | 2 + 2 optional |
| Dimensions (mm) | 10 935 x 3 062 x 2 775 |
| 4th gear (kph) | Unloaded: 12 (0% grade), 11.9 (5% grade), 11.9 (10% grade), 11.9 (12.5% grade), 11.8 (14.3% grade), 11.7 (20% grade). Lockup loaded: 12 (0% grade), 11.9 (5% grade), 11.9 (10% grade), 11.9 (12.5% grade), 11.8 (14.3% grade), 11.7 (20% grade). |
| 4th gear (mph) | Unloaded: 7.46 (0% grade), 7.39 (5% grade), 7.39 (10% grade), 7.39 (12.5% grade), 7.33 (14.3% grade), 7.27 (20% grade). Lockup loaded: 7.46 (0% grade), 7.39 (5% grade), 7.39 (10% grade), 7.39 (12.5% grade), 7.33 (14.3% grade), 7.27 (20% grade). |
| Dump box capacity (m^3) | 21 |
| Dump box capacity (yd^3) | 27.5 |
| Frame oscillation angle | +/- 8° |
| Number of brake lights | 3 |
| Number of turn signals | 4 |
| Hydraulic (L) | 325 |
| Number of side lights | 4 |
| 5th gear (kph) | Unloaded: 16 (0% grade), 15.9 (5% grade), 15.8 (10% grade), 15.7 (12.5% grade), 15.7 (14.3% grade), 13.1 (20% grade). Lockup loaded: 16 (0% grade), 15.9 (5% grade), 15.8 (10% grade), 15.7 (12.5% grade), 15.7 (14.3% grade), 13.1 (20% grade). |
| 5th gear (mph) | Unloaded: 9.94 (0% grade), 9.89 (5% grade), 9.82 (10% grade), 9.75 (12.5% grade), 9.75 (14.3% grade), 8.14 (20% grade). Lockup loaded: 9.94 (0% grade), 9.89 (5% grade), 9.82 (10% grade), 9.75 (12.5% grade), 9.75 (14.3% grade), 8.14 (20% grade). |
| 6th gear (kph) | Unloaded: 21.1 (0% grade), 20.9 (5% grade), 20.7 (10% grade), 18.6 (12.5% grade), 17.6 (14.3% grade), - (20% grade). Lockup loaded: 21.1 (0% grade), 20.9 (5% grade), 20.7 (10% grade), 18.6 (12.5% grade), 17.6 (14.3% grade), - (20% grade). |
| 6th gear (mph) | Unloaded: 13.12 (0% grade), 12.99 (5% grade), 12.87 (10% grade), 11.55 (12.5% grade), 10.95 (14.3% grade), - (20% grade). Lockup loaded: 13.12 (0% grade), 12.99 (5% grade), 12.87 (10% grade), 11.55 (12.5% grade), 10.95 (14.3% grade), - (20% grade). |
| 7th gear (kph) | Unloaded: 28.7 (0% grade), 28.3 (5% grade), 23.7 (10% grade), - (12.5% grade), - (14.3% grade), - (20% grade). Lockup loaded: 28.7 (0% grade), 28.3 (5% grade), 23.7 (10% grade), - (12.5% grade), - (14.3% grade), - (20% grade). |
| 7th gear (mph) | Unloaded: 17.83 (0% grade), 17.60 (5% grade), 14.74 (10% grade), - (12.5% grade), - (14.3% grade), - (20% grade). Lockup loaded: 17.83 (0% grade), 17.60 (5% grade), 14.74 (10% grade), - (12.5% grade), - (14.3% grade), - (20% grade). |
