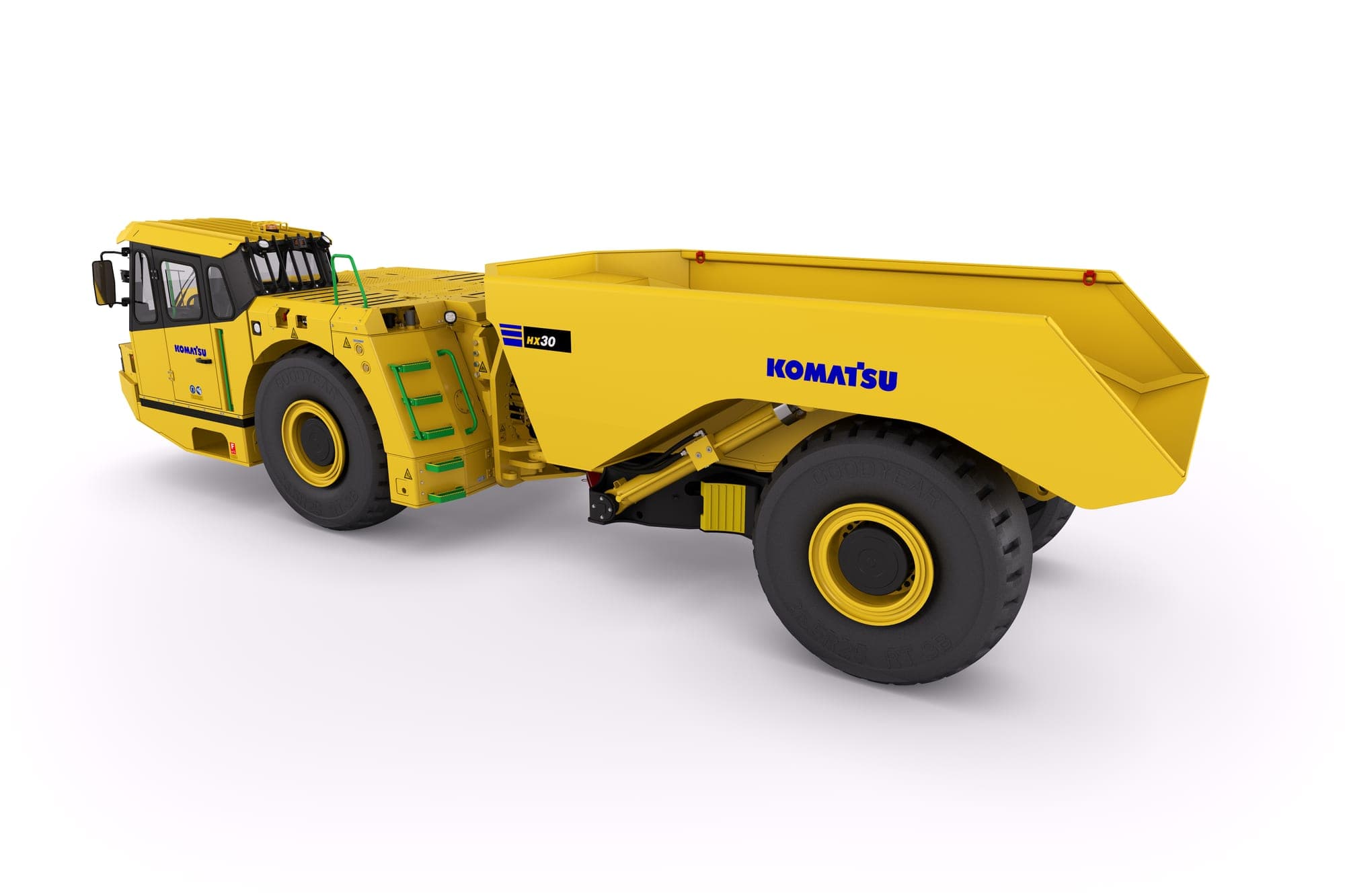

HX30
رقم القطعة: KOMATSU-HX30
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
HX30
المواصفات
| Operating weight (kg) | 30 400 |
|---|---|
| Operating weight (lbs) | 66,880 |
| Voltage | 24 V |
| Cooling Type | Liquid |
| Batteries | 2 x 12V/185Ah |
| Alternator | 110A |
| Transmission | Dana 6000 |
| Fuel tank capacity (L) | 475 |
| Fuel tank capacity (US gal) | 125 |
| Total loaded weight (lbs) | 132,880 |
| Total loaded weight (kg) | 60 400 |
| Front and rear frames | Welded steel box construction |
| Material | S690, S355 |
| Tires | 26.5R25 |
| Front and rear | Kessler D102 |
| Differential, front | Open |
| Differential, rear | Open |
| Brakes | Spring apply, hydraulic release on wheel ends |
| Turning time: right (s) | 3.5 |
| Front axle (kg) | 28 600 |
| Turning time: left (s) | 3.5 |
| Front axle (lbs) | 62,920 |
| Rear axle (kg) | 31 800 |
| Rear axle (lbs) | 69,960 |
| Payload capacity (kg) | 30 000 |
| Payload capacity (lbs) | 66,000 |
| Engine (standard) | Mercedes OM471 |
| Output (standard)(kW) | 320 kW @ 1 700 rpm |
| Output (standard)(HP) | 429 HP @ 1,700 rpm |
| Front axle (kg) (Weights) | 22 800 |
| Engine (optional) | Mercedes OM471 |
| Front axle (lbs) (Weights) | 50,160 |
| Output (optional)(HP) | 429 HP @ 1,700 rpm |
| Rear axle (kg) (Weights) | 7 600 |
| Output (optional)(kW) | 320 kW @ 1 700 rpm |
| Rear axle (lbs) (Weights) | 16,720 |
| Air filtration | Dry air filter |
| Powertrain exhaust system | Diesel oxidation catalyst, silencer |
| Converter | Dana CL8000 with lockup |
| Shifting | Electric |
| Speeds | 4 forward / 4 rear |
| 1st gear (kph) | Unloaded: 5.6 (0% grade), 5.6 (5% grade), 5.5 (10% grade), 5.5 (12.5% grade), 5.5 (14.3% grade), 5.5 (20% grade). Loaded: 5.6 (0% grade), 5.6 (5% grade), 5.5 (10% grade), 5.5 (12.5% grade), 5.5 (14.3% grade), 5.5 (20% grade). |
| 2nd gear (kph) | Unloaded: 10 (0% grade), 9.9 (5% grade), 9.9 (10% grade), 9.9 (12.5% grade), 9.8 (14.3% grade), 9.8 (20% grade). Loaded: 10 (0% grade), 9.8 (5% grade), 9.8 (10% grade), 9.1 (12.5% grade), 8.2 (14.3% grade). |
| Raising motion time (s) | 13 |
| Lowering motion time (s) | 13 |
| 3rd gear (kph) | Unloaded: 17.5 (0% grade), 17.4 (5% grade), 17.2 (10% grade), 17.1 (12.5% grade), 15.8 (14.3% grade). Loaded: 17.4 (0% grade), 17.1 (5% grade). |
| Haulage capacity (kg) | 30 000 |
| Haulage capacity (lbs) | 66,000 |
| User interface for control system | Multicolor touch display |
| Engine certification (standard) | EPA Tier 3 / EU Stage IIIA |
| Engine certification (optional) | EPA Tier 4F / EU Stage V |
| Number of flashing beacons | 1 |
| Number of front lights | 5 |
| Number of rear lights | 2 + 2 optional |
| 4th gear (kph) | Unloaded: 31.6 (0% grade), 31.2 (5% grade), 24.7 (10% grade). Loaded: 31.4 (0% grade). |
| Volume, nominal heaped (m^3) | 15 - 18 |
| Volume, nominal heaped (yd^3) | 19.6 - 23.5 |
| Height, laden (at cabin) (in) | 102 |
| Dump box capacity (m^3) | 15 |
| Height, laden (at cabin) (mm) | 2 600 |
| Dump box capacity (yd^3) | 19.6 |
| Number of brake lights | 3 |
| Number of turn signals | 4 |
| Number of side lights | 4 |
