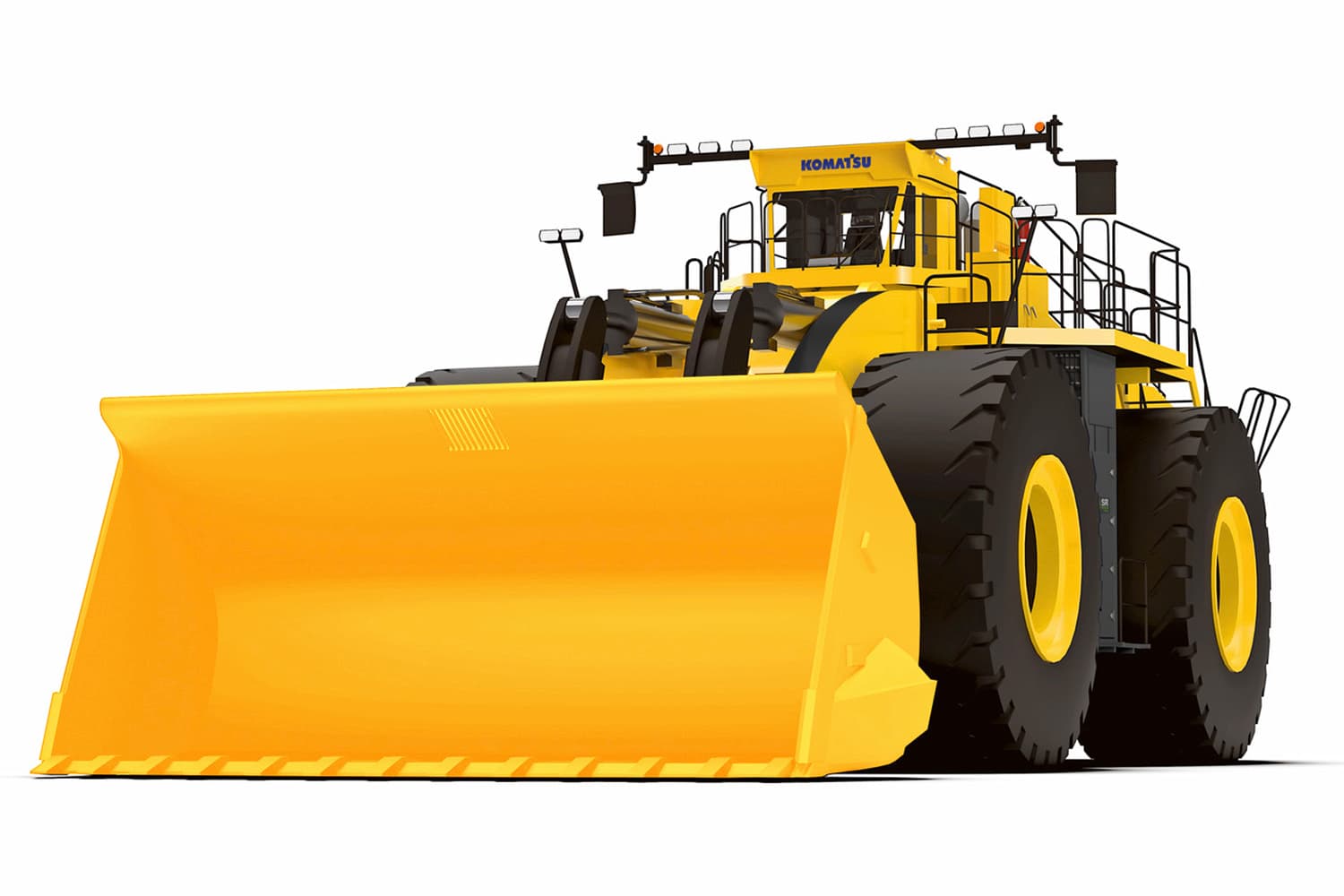

WE2350
رقم القطعة: KOMATSU-WE2350
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
رافعات التحميل ذات العجلات (اللودر) WE2350 جرافات التعدين السطحي ذات العجلات
المواصفات
| Horsepower (HP) | 2,300 |
|---|---|
| Horsepower (kW) | 1 715 |
| Rated power (kW) | 1,491 (2,300 HP) @ 1,800 rpm |
| Rated power (HP) | 1,715 (2,300 HP) @ 1,800 rpm |
| Operating weight (kg) | 266 259 |
| Operating weight (lbs) | 587,000 |
| Bucket capacity (m^3) | 40.52 |
| Bucket capacity (yd^3) | 53 |
| Parking brake | Spring applied, air release traction motor speed disc brakes |
| Tires | 70/70-57 |
| Exhaust system | Dual, low restriction mufflers with vertical, mid-hood discharge |
| Articulation angle (degrees) | R - 42, L - 41 |
| Operating payload of standard lift (kg) | 72 574 |
| Operating payload of standard lift (lbs) | 160,000 |
| Straight standard lift (kg) | 184 300 |
| Operating weight standard (kg) | 266 622 |
| Operating weight standard (lbs) | 587,800 |
| Straight standard lift (lbs) | 406,300 |
| Full 42 degree turn standard (kg) | 172 100 |
| Bucket capacity high lift (yd^3) | 50 |
| Full 42 degree turn standard (lbs) | 397,400 |
| Bucket capacity high (m^3) | 38.23 |
| Breakout force standard (kN) | 1,173 |
| Operating payload of high lift (kg) | 68 039 |
| Breakout force standard (lbs) | 263,702 |
| Operating payload of high lift (lbs) | 150,000 |
| Bucket capacity super high lift (lbs) | 70 |
| Straight high lift (kg) | 164 200 |
| Bucket capacity super high lift (kg) | 53.5 |
| Straight high lift (lbs) | 362,000 |
| Operating payload super high lift (lbs) | 120,000 |
| Operating payload super high lift (kg) | 54 431 |
| Straight super high lift (lbs) | 283,848 |
| Breakout force high (lbs) | 289,900 |
| Operating weight high (kg) | 272 065 |
| Straight super high lift (kg) | 128 751 |
| Operating weight high (lbs) | 599,800 |
| Breakout force high (kN) | 1,290 |
| Full 42 degree turn super high lift (lbs) | 240,049 |
| Full 42 degree turn super high lift (kg) | 108 884 |
| Breakout super high lift (kN) | 980 |
| Breakout force super high lift (lbs) | 220,142 |
| Operating weight super high lift (kg) | 276 045 |
| Operating weight super high lift (lbs) | 608,576 |
| Full 42 degree turn high (kg) | 153 300 |
| Full 42 degree turn high (lbs) | 397,400 |
| Truck match (ton) | 320 - 400+ |
| Truck match (tonne) | 290 - 363+ |
| Standard (lbs) | 160,000 |
| Standard (kg) | 72 574 |
| High lift (lbs) | 150,000 |
| High lift (kg) | 68 039 |
| Super high lift (kg) | 54 431 |
| Super high lift (lbs) | 120,000 |
| Engine (kW) | 1 715 |
| Engine (HP) | 2,300 |
| Model Tier 1,2 (V) | 16V series 4000;16 cylinders |
| Model Tier 4 (V) | 12V series 4000;12 cylinders |
| Diesel power type | 4-cycle turbocharged |
| Cummins Diesel engine | Tier 1, Tier 2, Tier 4 |
| Cummins Model | QSK 60 16 cylinders |
| Cummins Type | 4-cycle turbocharged |
| Cummins Rated power (kW) | 1,715 kW (2,300 HP @ 1,800 rpm |
| Standard iso rated capacity (lbs) | 160,000 |
| Standard iso rated capacity (kg) | 72 547 |
| High lift iso rated capacity (kg) | 68 039 |
| High lift iso rated capacity (lbs) | 150,000 |
| Super high lift iso rated capacity (lbs) | 120,000 |
| Super high lift iso rated capacity (kg) | 54 431 |
| Travel speed type | Forward and reverse 0 - 19.31 kph (0 - 12 mph) |
| Rims | 60 x 57 with 6 in. flange |
| Dump (seconds) | 3 |
| Float (s) | 6 |
| Hoist (seconds) | 17 |
| High lift (ft, in) | 64,0 |
| High lift (m) | 19.52 |
| Standard lift (m) | 19.43 |
| Standard lift (ft, in) | 63,9 |
| Primary | Electric dynamic braking system is controlled from the accelerator pedal and can bring the loader to a full stop without application of mechanical brakes. |
