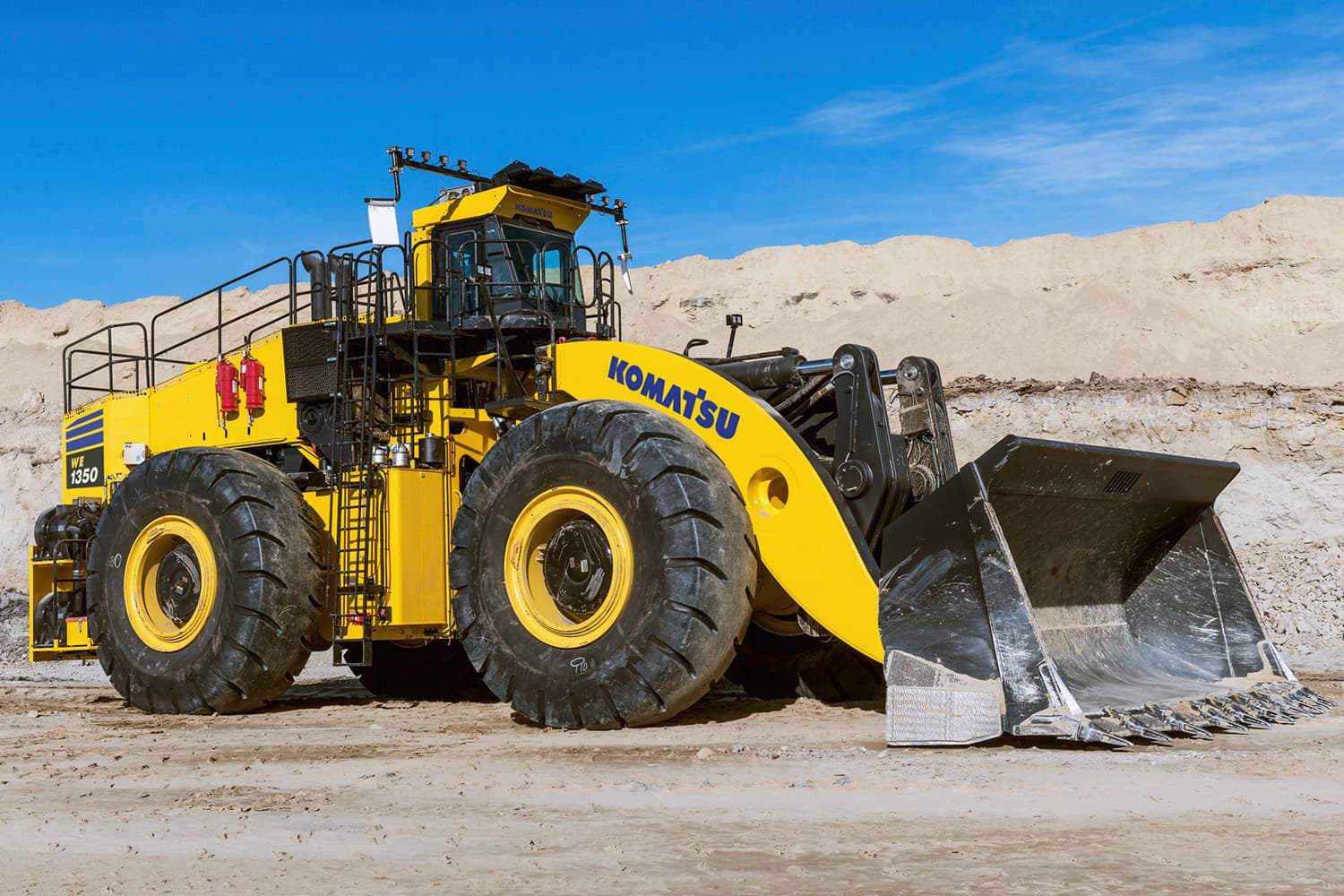

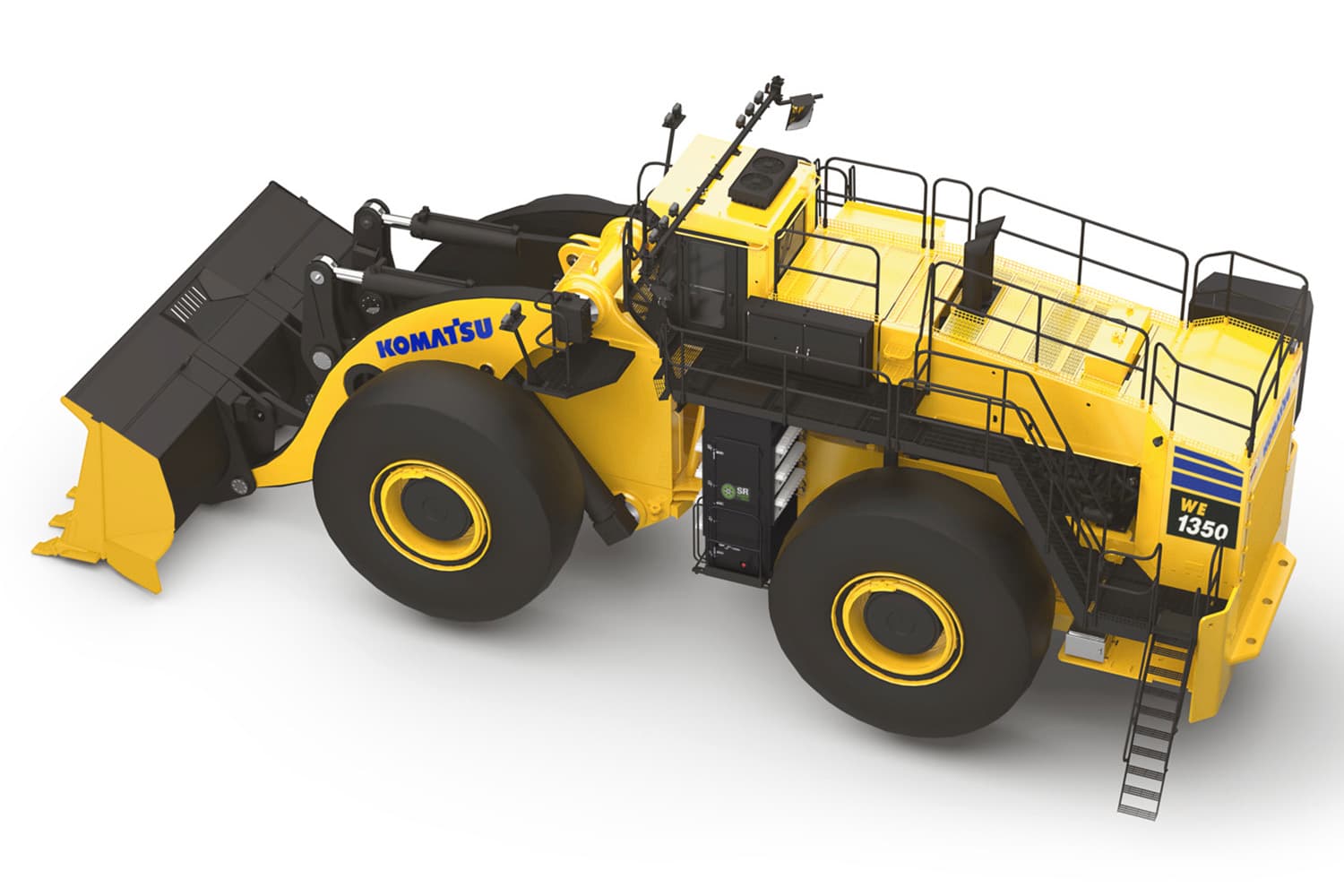

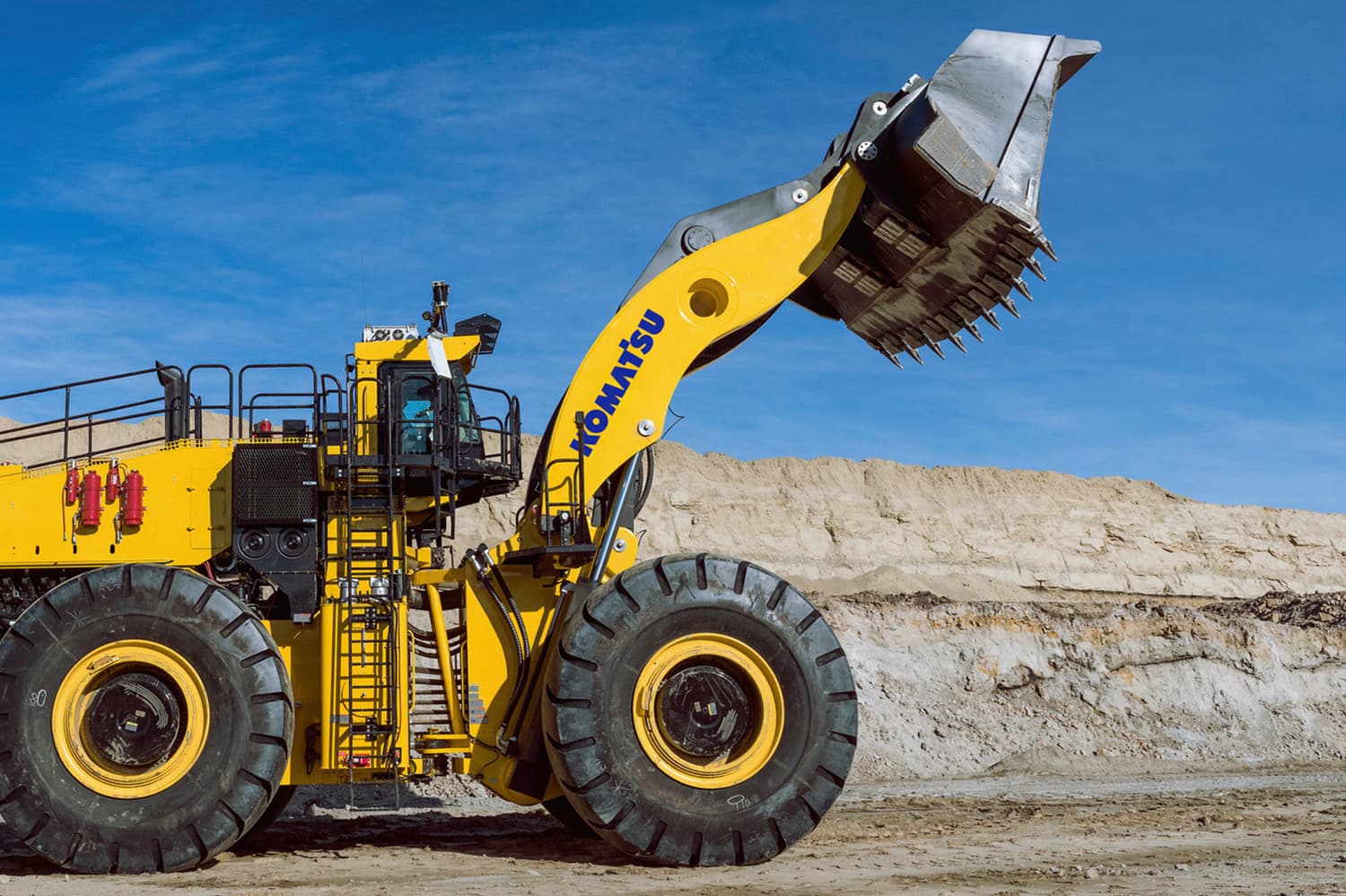

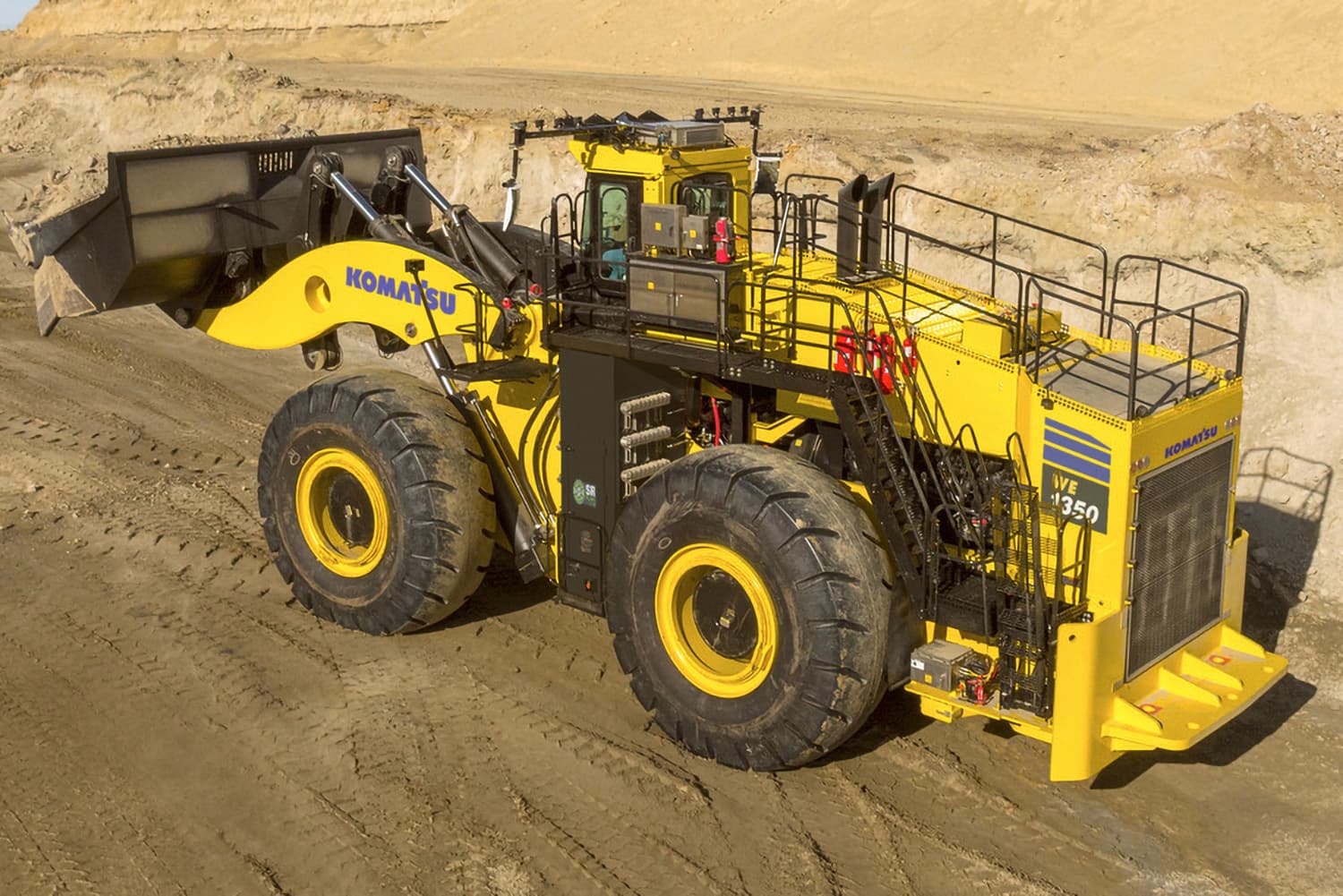

WE1350
رقم القطعة: KOMATSU-WE1350
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
WE1350
المواصفات
| Horsepower (HP) | 1,676 |
|---|---|
| Horsepower (kW) | 1 250 |
| Rated power (kW) | 1 193 kW @ 1 800 rpm |
| Operating weight (kg) | 194 228 |
| Operating weight (lbs) | 428,000 |
| Bucket capacity (m^3) | 22.94 |
| Bucket capacity (yd^3) | 30 |
| Fuel (L) | 3 501 |
| Fuel (US gal) | 925 |
| Tires | 50/80-57 L-4 |
| Articulation angle (degrees) | 40 |
| Hydraulic (L) | 1 419 |
| Operating payload of standard lift (kg) | 40 823 |
| Operating payload of standard lift (lbs) | 90,000 |
| Straight standard lift (kg) | 108 776 |
| Operating weight standard (kg) | 194 228 |
| Operating weight standard (lbs) | 428,200 |
| Straight standard lift (lbs) | 239,809 |
| Full 45 degree turn standard (kg) | 98 849 |
| Bucket capacity high lift (yd^3) | 28 |
| Bucket capacity high (m^3) | 21.41 |
| Full 45 degree turn standard (lbs) | 217,925 |
| Breakout force standard (kN) | 978 |
| Operating payload of high lift (kg) | 38 102 |
| Breakout force standard (lbs) | 219,772 |
| Operating payload of high lift (lbs) | 90,000 |
| Straight high lift (kg) | 100 068 |
| Straight high lift (lbs) | 239,809 |
| Full 45 degree turn high (kg) | 90 936 |
| Full 45 degree turn high (lbs) | 217,925 |
| Breakout force high (lbs) | 225,687 |
| Operating weight high (kg) | 196 496 |
| Operating weight high (lbs) | 433,200 |
| Breakout force high (kN) | 1,004 |
| Cummins (L) | 216 |
| Cummins (gal) | 57 |
| Detroit (L) | 330 |
| Detroit (gal) | 87 |
| Engine Cooling (gal) | 101 |
| Engine Cooling (L) | 382 |
| Gearbox (gal) | 7 |
| Gearbox (L) | 27 |
| Truck match (ton) | 200-260 |
| Hydraulic (gal) | 375 |
| Truck match (tonne) | 181-236 |
| Planetaries each (L) | 136 |
| Standard (lbs) | 90,000 |
| Planetaries each (gal) | 36 |
| Standard (kg) | 40 823 |
| SR converter cooling (gal) | 31 |
| High lift (lbs) | 84,000 |
| SR converter cooling (L) | 117 |
| High lift (kg) | 38 102 |
| Pumps details | Maximum flow rate at 1,800 rpm |
| Main Piston (4) (gpm) | 371 |
| Main Piston (4) (L/min) | 1 404 |
| Engine (kW) | 1 249 |
| Steering piston (gpm) | 89 |
| Engine (HP) | 1,676 |
| Steering piston (L/min) | 342 |
| Model Tier 1,2 (V) | 12V Series 4000, 12 cylinders |
| Fan/blower drive tandem piston (gpm) | 45/45 |
| Fan/blower drive tandem piston (L/min) | 171/171 |
| Accessory piston (gpm) | 21 |
| Accessory piston (L/min) | 81 |
| Cummins Model | QSK 50, 16 cylinders |
| Cooling system circulating pump vane (gpm) | 108 |
| Cummins Type | 4-cycle turbocharged |
| Cooling system circulating pump vane (L/min) | 409 |
| Cummins Rated power (kW) | 1 193 kW @ 1 800 rpm |
| HPD drive box | Pressurized, cooled, and filtered lubrication; ratio 1:1 |
| Standard iso rated capacity (lbs) | 90,000 |
| Cylinders | Double-acting, single-stage (diameter and stroke), (standard and high fit) |
| Standard iso rated capacity (kg) | 40 823 |
| Cylinders hoist (in) | 13.5 x 74.5 |
| Cylinders hoist (mm) | 343 x 1 892 |
| Cylinders bucket (in) | 10 x 41.5 |
| Cylinders bucket (mm) | 254 x 1 054 |
| Cylinders steering (in) | 7.5 x 30 |
| Travel speed type | Forward and reverse 0 - 19.31 kph (0 - 12 mph) |
| Cylinders steering (mm) | 190 x 762 |
| Rims | 36 x 57 with 6 in flange |
| Hoist (in) | 13.5 x 74.5 |
| Dump (seconds) | 3 |
| Hoist (mm) | 343 x 1 892 |
| Float (s) | 5 |
| Bucket (mm) | 254 x 1054 |
| Hoist (seconds) | 11.8 |
| Bucket (in) | 10 x 41.5 |
| High lift (ft, in) | 45 ft, 2 in |
| Steering (in) | 7.5 x 30 |
| High lift (m) | 13.76 |
| Steering (mm) | 190 x 762 |
| Standard lift (m) | 13.5 |
| Valves main (3) (L/min) | 700 |
| Standard lift (ft, in) | 44 ft, 4 in |
| Valves main (3) (gpm) | 185 |
| Primary | Operator cab air supply and self-cleaning replaceable filter technology. Minimum Efficiency Reporting Value (MERV) 15 efficiency level per ASHRAE 52.2-2012, 5,000 hour filter life achievable, low maintenance. |
| Valves steering (1) (gpm) | 90 |
| Valves steering (1) (L/min) | 341 |
| Pump pressure (psi) | 4,000 (main valve), 3,400 (steering valve) |
| Pump pressure (kPa) | 27 980 (main valve), 23 443 (steering valve) |
| KESS (kW) | 820 |
| KESS (HP) | 1,100 |
| Primary brake system type | Electric dynamic braking system is controlled from the accelerator pedal and can bring the loader to a full stop without application of mechanical brakes. |
| Secondary brake system type | Air modulated traction motor speed disc brakes. Single disc and caliper on each traction motor (4). Emergency fail safe brakes are spring applied in the event of air pressure loss. |
| Parking brake system type | Spring applied, air release traction motor speed disc brakes. |
| MTU detroit diesel engine | Tier one |
| Detroit Model | 12V Series 4000 12 cylinders |
| Detroit Type | 4-cycle turbocharged |
| Rated power Detroit | 1,600 HP @ 1,800 rpm |
| Independent power module mounting system | Consisting of the engine coupled to the SR generator, is cradled within the rear frame by a three-point isolation system. |
| Radiator/oil cooler module | Replaceable tube type, side-by-side split flow. Thermostatically controlled, variable speed hydraulic motor-driven, radiator-mounted fan. Auxiliary oil cooler available for high ambient conditions. |
| Exhaust system type | Dual, low restriction mufflers with vertical, mid-hood discharge |
| Cummins Diesel engine tier type | Tier 2 |
| Cummins Rated power (HP) | 1,600 HP @ 1,800 rpm |
| Standard, ISO-rated capacity (lbs.) | 90,000 |
| Standard, ISO-rated capacity (kg) | 40 823 |
| SR hybrid drive switched reluctance (SR) | Technology propulsion system |
| High lift, ISO-rated capacity (lbs.) | 84,000 |
| Digital microprocessor type | Controlled traction drive |
| SR hybrid drive advantages include | No commutator, brushes or rotor windings on SR motors or generator. SR KESS - Kinetic Energy Storage System. Parts commonality - power conversion modules identical for motor and generator. |
| High lift, ISO-rated capacity (kg) | 38 102 |
| Generator specifics | G100 SR generator |
| Buckets type | Rock and coal bucket configurations available. Buckets sized to material density. |
| Traction motors type | B40A SR motor and SR all wheel drive (independent SR motor for each wheel) |
| Planetary gearing model 51A2 | In-line gear train mounted within the rim of the tire, transmitting power from the traction motor through the tire/rim assembly. A four-stage planetary drive unit in each position. Total reduction 140.8:1 |
| LINCS II | Microprocessor based modular design Vehicle Control Unit (VCU) with monitoring and diagnostics including integrated data logging and storage. LINCS II uses a dash mounted full color, touch screen display as the operator interface. Out-of-range conditions will cause an audible alarm along with a message screen that is color coded to indicate severity. In addition, the touch-screen display provides repair technicians with operational data and fault messages. |
| LINCS II load weigh | Displays real-time load per pass, per truck and total loads. Memory capable of retaining months of production information. Capable of interfacing with radio dispatch systems for real-time monitoring. |
| Structural specifics | Frames are fabricated from high strength, low-alloy steel with excellent weld characteristics and extreme low temperature properties. The front axle is an integral, fixed part of the front frame. The rear axle center oscillates 11 degrees. Unique forged ball and socket joints are utilized in multiple pivot locations (lift arms, rear axle, frame articulation, hoist cylinders). These joints are superior in absorbing and distributing multi-directional stresses. Features easily replaceable brass liners for long life and easy maintenance. High strength castings are used in key areas of fabricated structures to reduce stress and improve structural life. |
| Secondary | Dual safety filters for engine |
