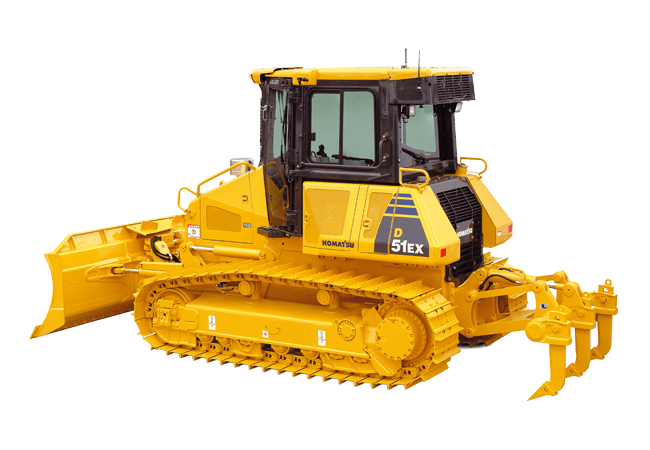

D51-22
رقم القطعة: KOMATSU-D51-22
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
D51-22
المواصفات
| Operating weight (kg) | 12710 |
|---|---|
| Operating weight (lbs) | 28021 |
| Suspension | Oscillating equaliser bar and piv shaft |
| Track roller frame | Monocoque, large section, durable construction |
| Rollers and idlers | Lubricated track rollers |
| Type of shoes (standard) | Single grouser |
| Number of track rollers (each side) | 7 |
| Number of shoes (each side) | 44 |
| Shoe width (standard)(in) | 22.05 - 27.95 |
| Shoe width (standard)(mm) | 560 - 710 |
| Engine model | Komatsu SAA6D107E-1 |
| Aspiration | Turbocharged, after-cooled diesel |
| Piston displacement (L) | 6.69 |
| SAEJ1995 - Gross (kW) | 99 |
| SAEJ1995 - Gross (HP) | 133 |
| ISO 9249 / SAE J1349 - Net (HP) | 130 |
| Rated rpm | 2200 |
| Fan drive type | Hydraulic |
| Hydrostatic transmission features | Dual-path, hydrostatic transmission system |
| Fuel tank (L) | 270 |
| Coolant (US gal) | 9.25 |
| Coolant (L) | 35 |
| Engine oil (L) | 20 |
| Engine oil (US gal) | 5.28 |
| Hydraulic tank (L) | 63 |
| Hydraulic tank (US gal) | 16.64 |
| Blade tilt /1 (in) | 1 x 3.94 |
| Blade tilt /1 (mm) | 1 x 100 |
| Blade lift / 2 (mm) | 2 x 90 |
| Blade lift / 2 (in) | 2 x 3.54 |
| Blade angle / 2 (mm) | 90 |
| Blade angle / 2 (in) | 3.54 |
| Ripper lift (mm) | 1 x 110 |
| Engine power (HP) | 97 |
| Engine power (kW) | 130 |
| Piston displacement (in³) | 408.24 |
| Engine certification (standard) | EPA Tier 3 |
| Blade capacity (m³) | 2.9 |
| Blade capacity (yd³) | 3.8 |
| Maximum pump flow (ltr/min) | 99 |
| Maximum pump flow (gpm) | 26.2 |
| Sprocket | Segmented sprocket teeth are bolt-on |
