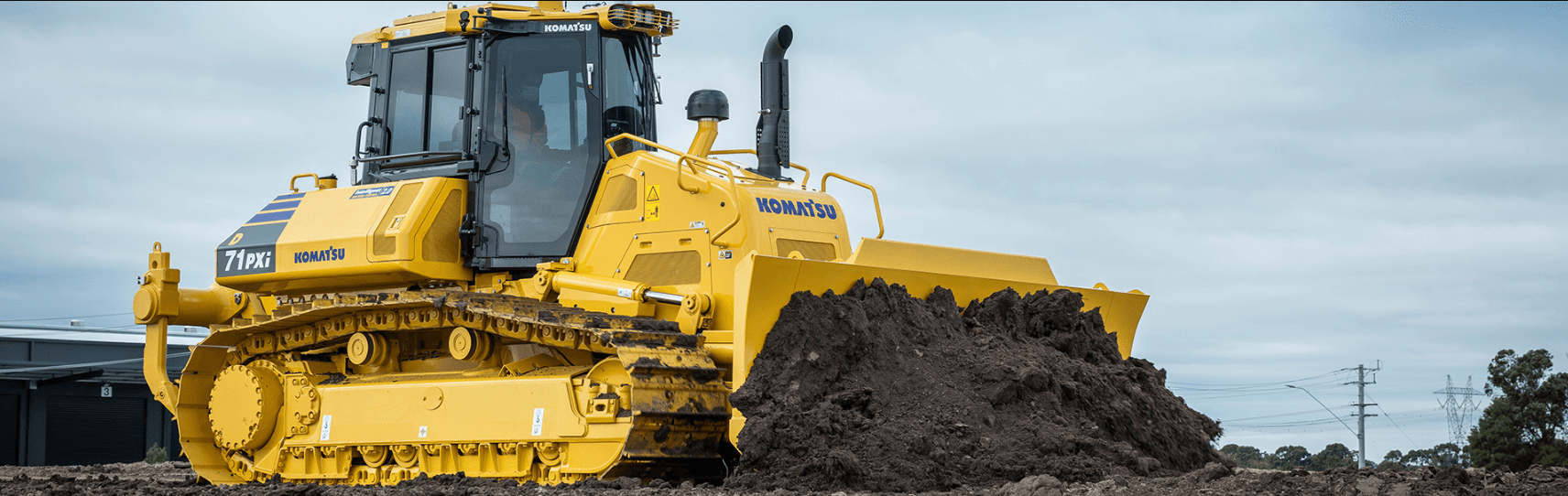

D71-24
رقم القطعة: KOMATSU-D71-24
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
D71-24
المواصفات
| Operating weight (kg) | 23900 |
|---|---|
| Operating weight (lbs) | 52690 |
| Suspension | Oscillation-type with an equaliser bar and pivot shafts |
| Track roller frame | Monocoque, large section, durable construction |
| Type of shoes (standard) | Single grouser |
| Number of track rollers (each side) | 8 |
| Number of shoes (each side) | 45 |
| Number of carrier rollers (each side) | 2 |
| Shoe width (standard)(in) | 24.02 (D71EXi-24), 29.92 (D71PXi-24), 36.02 (D71PXi-24 Wide) |
| Shoe width (standard)(mm) | 610 (D71EXi-24), 760 (D71PXi-24), 915 (D71PXi-24 Wide) |
| Engine model | Komatsu SAA6D114E-6 |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Piston displacement (L) | 8.85 |
| SAEJ1995 - Gross (kW) | 179 |
| SAEJ1995 - Gross (HP) | 240 |
| ISO 9249 / SAE J1349 - Net (HP) | 237 |
| Rated rpm | 2100 |
| Fan drive type | Hydraulic |
| Fuel tank (L) | 439 |
| Coolant (US gal) | 14.39 |
| Coolant (L) | 54.5 |
| Engine oil (L) | 30.5 |
| Engine oil (US gal) | 8.06 |
| Hydraulic tank (L) | 154 |
| Hydraulic tank (US gal) | 40.68 |
| Ripper lift | Raise, hold and lower |
| Blade tilt /1 (in) | 1 x 5.12 |
| Blade tilt /1 (mm) | 1 x 130 |
| Blade lift / 2 (mm) | 2 x 120 |
| Blade lift / 2 (in) | 2 x 4.72 |
| Blade angle / 2 (mm) | 110 |
| Blade angle / 2 (in) | 4.33 |
| Lubricated tracks | Lubricated tracks with PLUS |
| Engine power (HP) | 240 |
| Engine power (kW) | 179 |
| Piston displacement (in³) | 540.05 |
| Engine certification (standard) | EPA Tier 4 Final Engine |
| Blade capacity (m³) | 5.02 |
| Blade capacity (yd³) | 6.6 |
| Maximum pump flow (ltr/min) | 235 |
| Maximum pump flow (gpm) | 62.1 |
| Relief valve setting (kg/cm²) | 294 |
