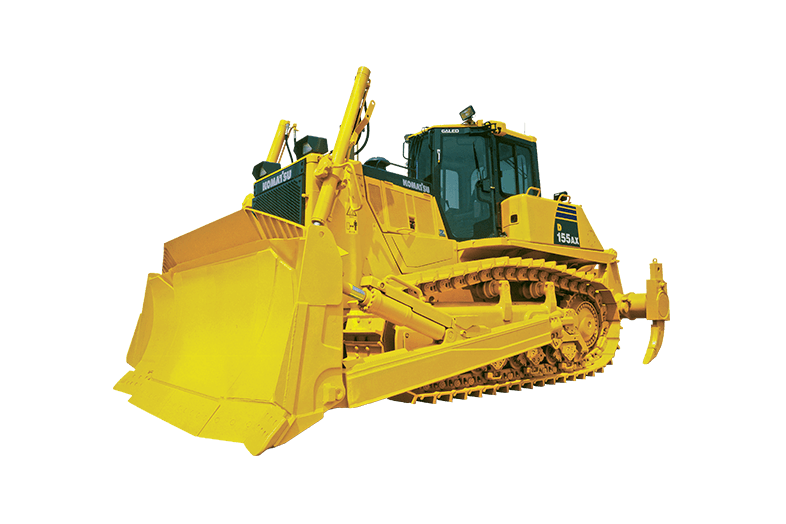

D155AX-6
رقم القطعة: KOMATSU-D155AX-6
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
D155AX-6
المواصفات
| Operating weight (kg) | 39500 |
|---|---|
| Operating weight (lbs) | 87083 |
| Suspension | Oscillating equaliser bar and forward pivot shaft |
| Track roller frame | Monocoque, large section, durable construction |
| Rollers and idlers | Lubricated track rollers |
| Number of track rollers (each side) | 7 |
| Number of shoes (each side) | 42 |
| Number of carrier rollers (each side) | 2 |
| Shoe width (standard)(in) | 22.05 |
| Shoe width (standard)(mm) | 560 |
| Engine model | Komatsu SAA6D140E-5 |
| Aspiration | Turbocharged, after-cooled, cooled EGR |
| Piston displacement (L) | 15.24 |
| SAEJ1995 - Gross (kW) | 268 |
| SAEJ1995 - Gross (HP) | 360 |
| ISO 9249 / SAE J1349 - Net (HP) | 354 |
| Rated rpm | 1900 |
| Fan drive type | Hydraulic |
| Fuel tank (US gal) | 165 |
| Fuel tank (L) | 625 |
| Coolant (US gal) | 21.67 |
| Coolant (L) | 82 |
| Engine oil (L) | 37 |
| Engine oil (US gal) | 9.77 |
| Relief valve setting (psi) | 5,547 |
| Blade tilt /1 (in) | 1 x 6.30 |
| Blade tilt /1 (mm) | 1 x 160 |
| Blade lift / 2 (mm) | 2 x 110 |
| Blade lift / 2 (in) | 2 x 4.33 |
| Torque converter, transmission, bevel gear, and steering system (US gal) | 23.8 |
| Torque converter, transmission, bevel gear, and steering system (L) | 90 |
| Ripper lift (mm) | 1 x 180 |
| Ripper tilt (mm) | 1 x 200 |
| Engine power (HP) | 354 |
| Engine power (kW) | 264 |
| Piston displacement (in³) | 929.98 |
| Blade capacity (m³) | 9.4 |
| Blade capacity (yd³) | 12.3 |
| Maximum pump flow (ltr/min) | 325 |
| Maximum pump flow (gpm) | 85.9 |
| Relief valve setting (kg/cm²) | 390 |
