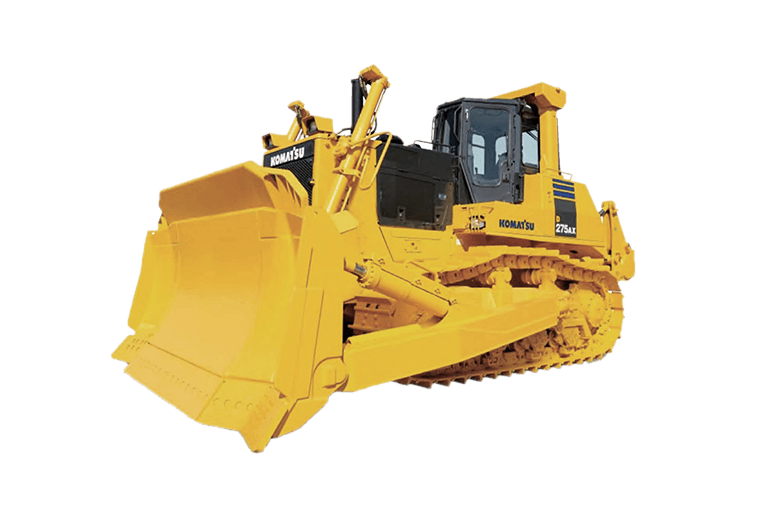

D275AX-5E0
رقم القطعة: KOMATSU-D275AX-5E0
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
D275AX-5E0
المواصفات
| Operating weight (kg) | 51530 |
|---|---|
| Operating weight (lbs) | 113606 |
| Suspension | Oscillating equaliser bar and pivot shaft |
| Track roller frame | Monocoque, high-tensile-strength steel construction |
| Rollers and idlers | Lubricated tracks |
| Number of track rollers (each side) | 7 |
| Number of shoes (each side) | 42 |
| Number of carrier rollers (each side) | 2 |
| Grouser height (mm) | 80 |
| Grouser height (in) | 3.15 |
| Shoe width (standard)(in) | 24.02 |
| Shoe width (standard)(mm) | 610 |
| Ground contact area (ft2) | 43 |
| Engine model | Komatsu SAA6D140E-7 |
| Aspiration | Turbocharged, after-cooled |
| Piston displacement (L) | 15.24 |
| SAEJ1995 - Gross (kW) | 268 |
| SAEJ1995 - Gross (HP) | 360 |
| ISO 9249 / SAE J1349 - Net (HP) | 354 |
| Rated rpm | 1900 |
| Fan drive type | Hydraulic |
| Fuel tank (L) | 625 |
| Coolant (US gal) | 27.47 |
| Coolant (L) | 104 |
| Engine oil (L) | 37 |
| Engine oil (US gal) | 9.77 |
| Blade tilt /1 (in) | 1 x 6.30 |
| Blade tilt /1 (mm) | 1 x 160 |
| Blade lift / 2 (mm) | 2 x 110 |
| Blade lift / 2 (in) | 2 x 4.33 |
| Torque converter, transmission, bevel gear, and steering system (US gal) | 23.8 |
| Torque converter, transmission, bevel gear, and steering system (L) | 90 |
| Damper case (L) | 1.5 |
| Ripper lift (mm) | 1 x 180 |
| Ripper tilt (mm) | 1 x 200 |
| Ground pressure (kPa) | 100 |
| Engine power (HP) | 449 |
| Engine power (kW) | 335 |
| Piston displacement (in³) | 929.98 |
| Blade capacity (m³) | 13.7 |
| Blade capacity (yd³) | 113604 |
| Maximum pump flow (ltr/min) | 325 |
| Maximum pump flow (gpm) | 85.9 |
| Relief valve setting (kg/cm²) | 390 |
| Ground contact area (cm²) | 39955 |
| Ground pressure (kg/cm²) | 1.03 |
| D155AXi-8 with Giant Ripper (kg) | 41100 |
| D155AXi-8 with Giant Ripper (lbs) | 90610 |
| D155AXi-8 (kg) | 32760 |
| D155AXi-8 (lb) | 72223 |
