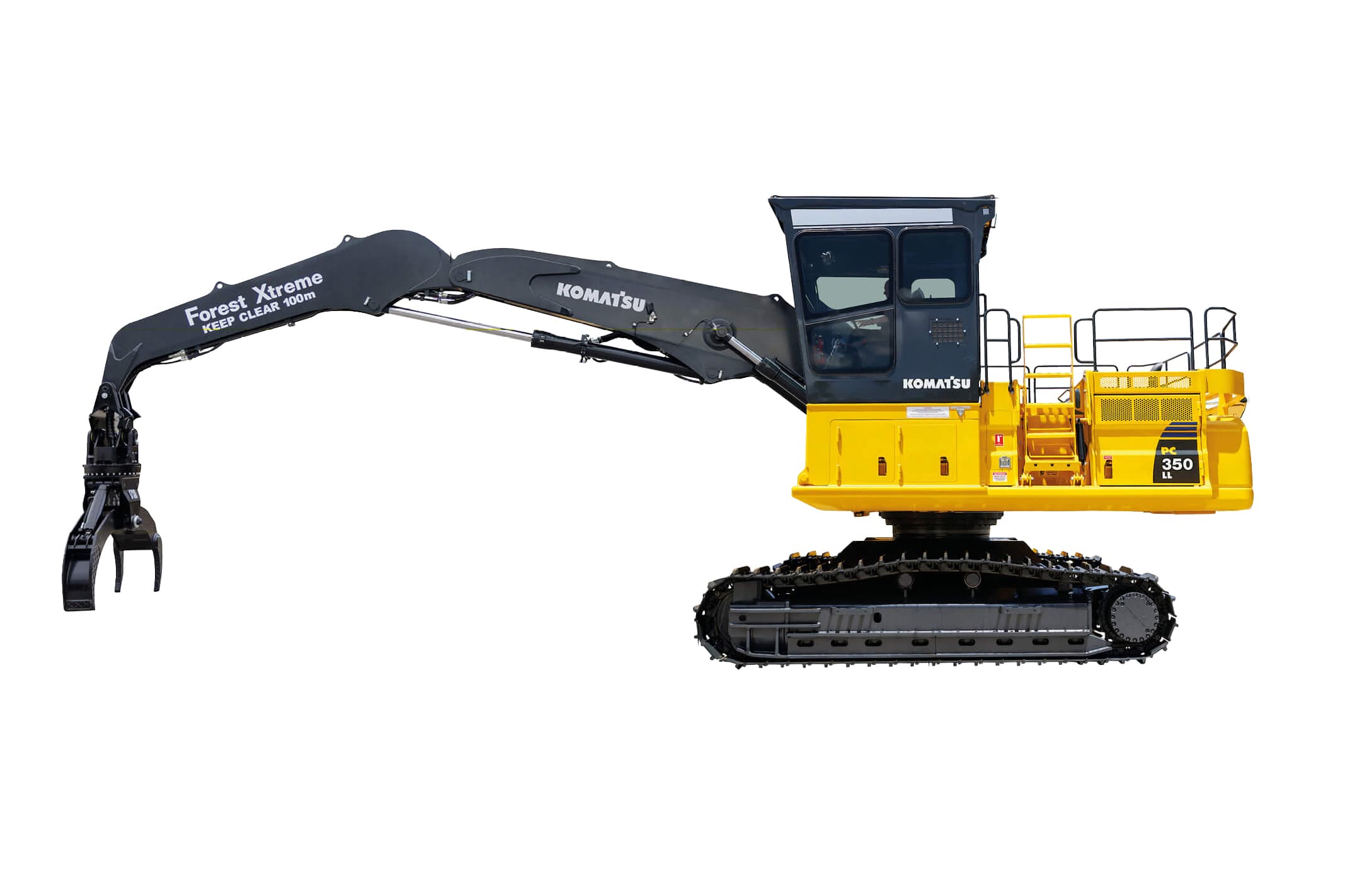

PC350LL-8
رقم القطعة: KOMATSU-PC350LL-8
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PC350LL-8
المواصفات
| Gradeability | 70%, 35 degrees |
|---|---|
| Operating weight (kg) | 41 000 |
| Operating weight (lbs) | 90 389 |
| Engine model | Komatsu SAA6D114E-3 |
| Aspiration | Turbocharged, aftercooled |
| Number of cylinders | 6 |
| Piston displacement (L) | 8.27 |
| Fuel tank (US gal) | 160 |
| Fuel tank (L) | 605 |
| Final drive (US gal) | 2.4 |
| Final drive (L) | 9 |
| Hydraulic tank (L) | 188 |
| Hydraulic tank (US gal) | 49.7 |
| Pumps for | Boom, arm, attachment, swing and travel circuit |
| Maximum flow (US gpm) | 141 |
| Maximum flow (L/min) | 535 |
| Travel | 2 x axial piston motor with parking brake |
| Swing | 1 x axial piston motor with swing holding brake |
| Maximum drawbar pull (lbs) | 59 330 |
| Parking brake | Mechanical disc brake |
| High (mph) | 3.4 |
| High (kph) | 5.5 |
| Engine (L) | 37 |
| Engine (US gal) | 9.8 |
| Center frame | X-frame |
| Track frame | Box-section |
| Power (HP) | 260 (gross) @ 1950 rpm |
| Power (kW) | 194 (gross) @ 1950 rpm |
| Drive method | Hydrostatic |
| Service brake | Hydraulic lock |
| Swing torque (kg-m) | 13 414 |
| Swing torque (ft-lbs) | 82 313 |
| Piston displacement (in³) | 504.7 |
| Swing drive (L) | 16.5 |
| Swing drive (US gal) | 4.4 |
| Hydraulics type | HydrauMind |
| Hydraulic type | Two-variable displacement piston type |
| Steering control | Two levers with pedals |
| Engine type | Water-cooled, 4-cycle, direct injection |
| Maximum drawbar pull (kN) | 264 |
| Working gear forestry boom set (ft) | 33.1 reach |
| Working gear forestry boom set (m) | 10.1 reach |
| Minimum width (in) | 136.6 |
| Minimum width (mm) | 3 470 |
| Height of cabin (mm) | 3 980 |
| Height of cabin (in) | 156.7 |
| Road clearance (mm) | 865 |
| Road clearance (in) | 34 |
