PC300HW-8
رقم القطعة: KOMATSU-PC300HW-8
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PC300HW-8
المواصفات
| Gradeability | 70%, 35 degrees |
|---|---|
| Operating weight (kg) | 38500 |
| Operating weight (lbs) | 84,877 |
| Engine model | Komatsu SAA6D114E-3 |
| Aspiration | Turbocharged, aftercooled |
| Number of cylinders | 6 |
| Fuel tank (US gal) | 105.7 |
| Fuel tank (L) | 400 |
| Final drive (US gal) | 2.2 |
| Final drive (L) | 8.5 |
| Hydraulic tank (L) | 132 |
| Hydraulic tank (US gal) | 34.9 |
| Pumps for | Boom, arm, attachment, swing and travel circuit |
| Maximum flow (US gpm) | 119 |
| Maximum flow (L/min) | 450 |
| Travel | 2 x axiel piston motors |
| Swing | 1 x axial piston motor |
| Maximum drawbar pull (lbs) | 59330 |
| Parking brake | Mechanical disc brake |
| High (mph) | 2.8 |
| High (kph) | 4.5 |
| Engine (L) | 37 |
| Engine (US gal) | 9.8 |
| Center frame | X-frame |
| Track frame | Box-section |
| Power (HP) | 200 (gross) |
| Power (kW) | 149 (gross) |
| Drive method | Hydrostatic |
| Service brake | Hydraulic lock |
| Swing drive (L) | 8.2 |
| Swing drive (US gal) | 2.2 |
| Hydraulics type | HydrauMind |
| Hydraulic type | Variable displacement piston type |
| Approximate operating weight (kg) | 38 500 |
| Approximate operating weight (lbs) | 84878 |
| Steering control | Two levers with pedals |
| Maximum drawbar pull | 264 kN |
| Engine type | Water-cooled, 4-cycle, direct injection |

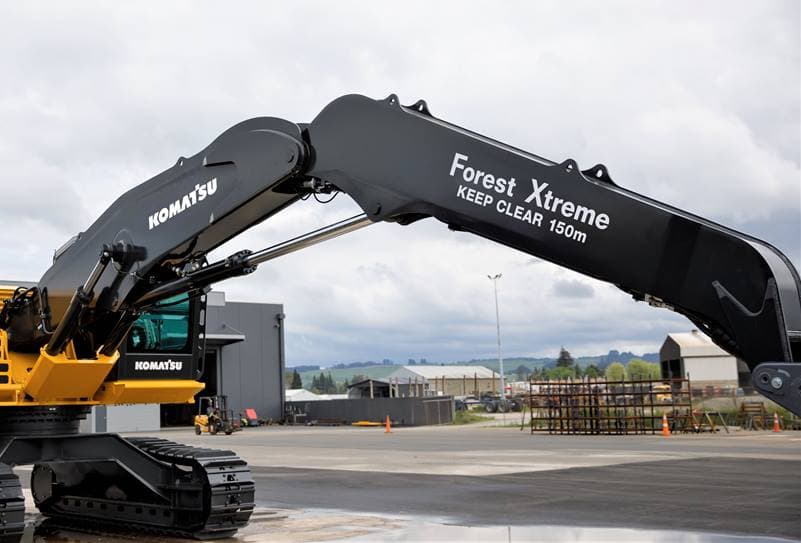

| Working gear forestry boom set (ft) | 31.8 reach |
| Working gear forestry boom set (m) | 9.7 reach |
| Minimum width (in) | 136.6 |
| Minimum width (mm) | 3 470 |
| Height of cabin (mm) | 3 980 |
| Height of cabin (in) | 156.7 |
| Road clearance (mm) | 865 |
| Road clearance (in) | 34 |
