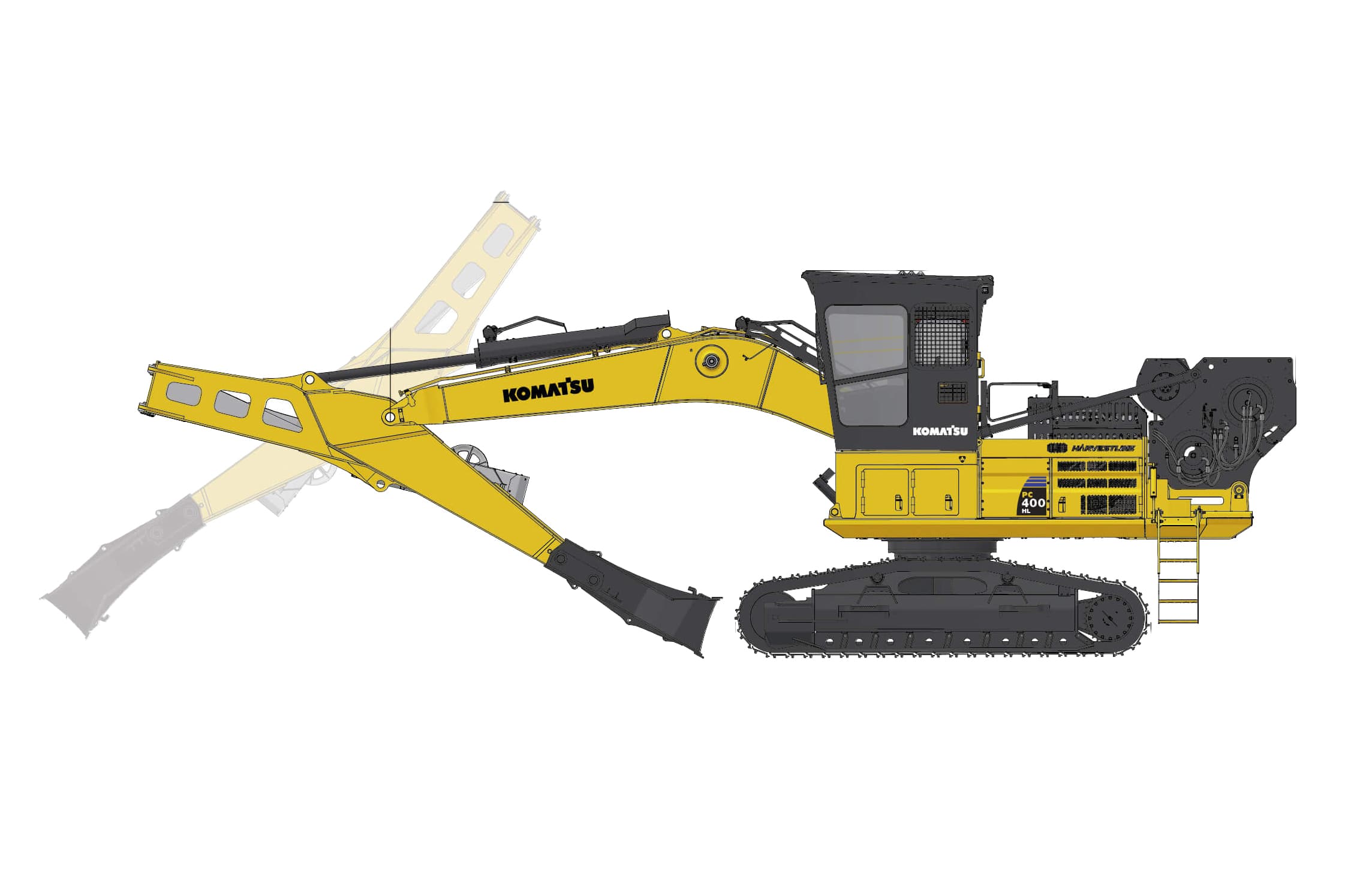

PC400HL-8
رقم القطعة: KOMATSU-PC400HL-8
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
PC400HL-8
المواصفات
| Operating weight (kg) | 105 822 |
|---|---|
| Operating weight (lbs) | 48 000 |
| Engine model | Komatsu SAA6D125E-5 |
| Aspiration | Turbocharged, aftercooled |
| Number of cylinders | 6 |
| Piston displacement (L) | 11.04 |
| Fuel tank (US gal) | 171.7 |
| Fuel tank (L) | 650 |
| Final drive (US gal) | 2.8 |
| Final drive (L) | 10.5 |
| Hydraulic tank (L) | 248 |
| Hydraulic tank (US gal) | 65.5 |
| Pumps for | Boom, arm, attachment, swing, and travel circuits |
| Maximum flow (US gpm) | 182.3 |
| Maximum flow (L/min) | 690 |
| Travel | 2 x axial piston motors with parking brake |
| Swing | 1 x axial piston motor with swing holding brake |
| Parking brake | Mechanical disc brake |
| High (mph) | 3.4 |
| High (kph) | 5.5 |
| Bore (mm) | 125 |
| Bore (in) | 4.9 |
| Stroke (in) | 5.9 |
| Stroke (mm) | 150 |
| Engine (L) | 37 |
| Engine (US gal) | 9.8 |
| Center frame | X-frame |
| Track frame | Box-section |
| Power (HP) | 362 (gross) @ 1900 rpm |
| Power (kW) | 270 (gross) @ 1900 rpm |
| Service brake | Hydraulic lock |
| Swing torque (kg-m) | 13 414 |
| Swing torque (ft-lbs) | 97 024 |
| Piston displacement (in³) | 673.7 |
| Swing drive (L) | 20 |
| Swing drive (US gal) | 5.3 |
| Hydraulics type | HydrauMind |
| Hydraulic type | Variable displacement piston type |
| Engine type | Water-cooled, 4-cycle, direct injection |
| Minimum width (in) | 141.7 |
| Minimum width (mm) | 3 600 |
| Height of cabin (mm) | 4 975 |
| Height of cabin (in) | 195 |
| Road clearance (mm) | 760 |
| Road clearance (in) | 30 |
