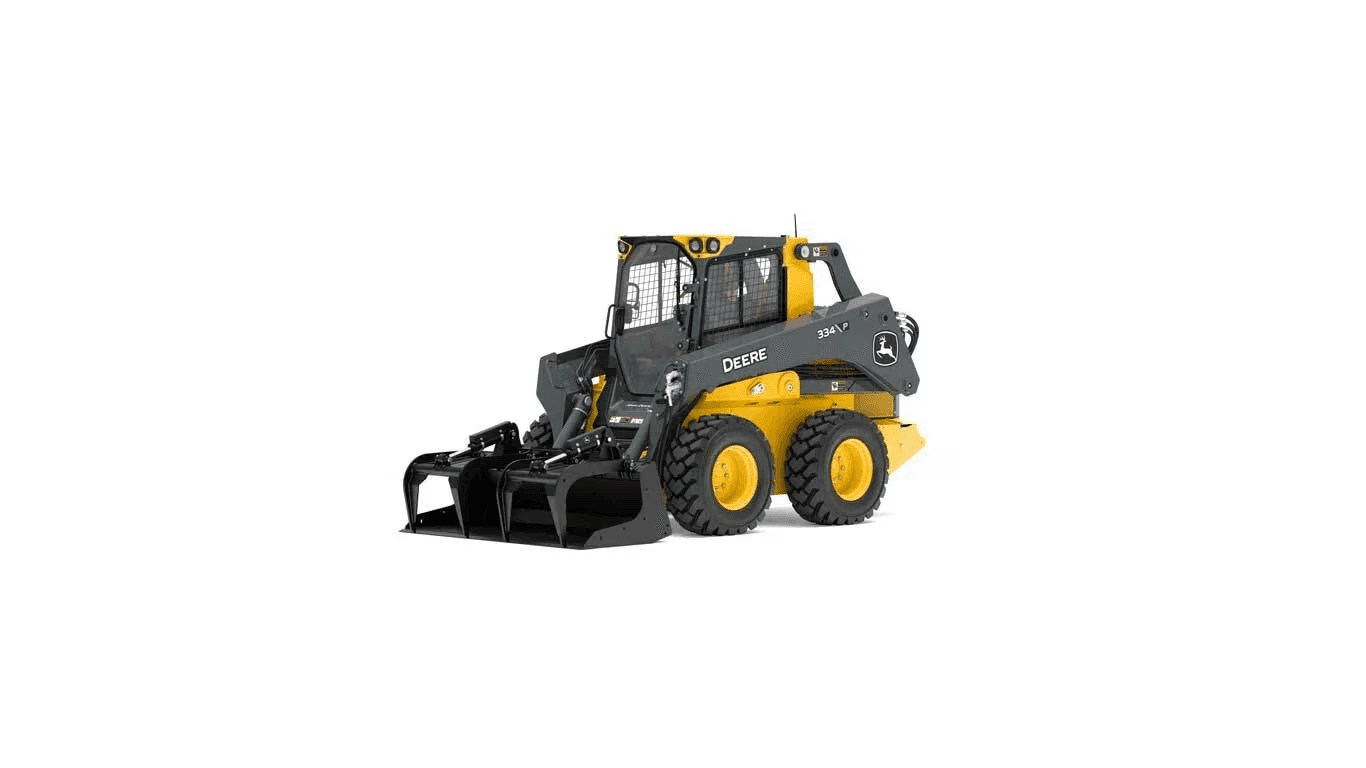

GS78B Scrap Grapple Compact Equipment Attachment

John Deere

GS78B Scrap Grapple Compact Equipment Attachment

رقم القطعة: JOHNDEERE-05U1T

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

GS78B Scrap Grapple Compact Equipment Attachment

المواصفات

ModelGS78B Scrap Grapple
Base Code05U1T
Divisionconstruction-equipment
Product Familyconstruction-attachments
Weight520 kg (1,150 lb.)
325G
P-Tier Large Frames
Compact Wheel Loaders
Width / Overall1980 mm (78 in.)
Width / Grapple Arm620 mm (24.4 in.)
Width / Grapples1660 mm (65.3 in.)
Length / Bucket Depth840 mm (33 in.)
Length / Grapple Closed1035 mm (40.7 in.)
Length / Grapple Opened1060 mm (41.7 in.)
Height / Grapple Closed830 mm (32.6 in.)
Height / Grapple Opened1170 mm (46 in.)
Grapple Opening / Tine Tip950 mm (37.4 in.)
Grapple Opening / Grapple Closed460 mm (18.1 in.)
Grapple Opening / Grapple Opened1035 mm (40.75 in.)
Grapple Opening / Pivot Pin Diameter35 mm (1.375 in.)
Hydraulics / Cylinder Bore Diameter64 mm (2.5 in.)
Hydraulics / Cylinder Rod Diameter36 mm (1.4 in.)
Hydraulics / Cylinder Stroke206 mm (8.1 in.)
Hydraulics / Maximum Operating Pressure24 000 kPa (3,500 psi)
Hydraulics / Hydraulic Connection12.7-mm (0.5 in.) quick- connect couplers
Hydraulics / Vehicle Compatibility320G, 324G, 330 P-Tier, and 334 P-Tier SSLs; 325G, 331 P-Tier, 333
