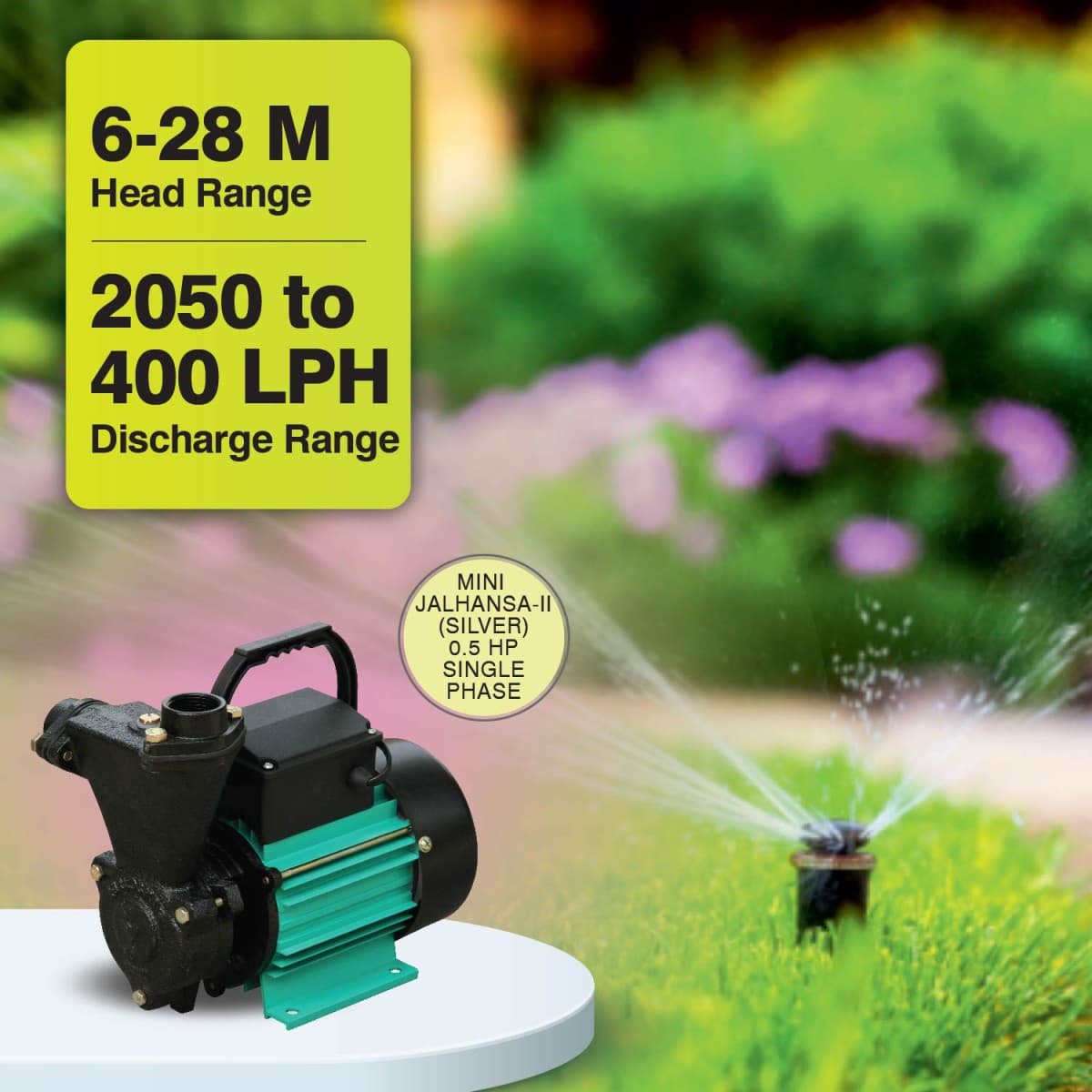

Self-priming Pump, MINI JALHANSA-II (Silver), 0.5 HP, Single Phase, 220 Volts, Size 25mm X 25mm
رقم القطعة: kirloskar-brothers-d11xa00511041033
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Overviews Kirloskar Self Priming pump comprises a Thermal Overload Protector for protection of the motor from overloading. Suitable for the voltage range 180 to 260 Volts (Single Phase Pump) and are thus perfectly suited for water supply to overhead tanks in bungalows, gardens/ fountains, small farm irrigation, Sumps & water tanks. Key Features • High efficiency and energy-saving design - Delivers optimum efficiency at lower energy consumption resulting in significant cost saving • TOP - Thermal Overload Protector - The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault currents • Wide voltage design - The motor is designed to withstand wide voltage fluctuation from 180 to 260 Volts Single phase • Shielded Ball Bearings - No external lubrication is required through the life cycle Overview Kirloskar Self-Priming pumps include a Thermal Overload Protector to safeguard the motor from overloading. They are suitable for the voltage range of 180 to 260 Volts (Single Phase Pump), making them perfectly suited for water supply to overhead tanks in bungalows, gardens, fountains, small farm irrigation, sumps, and water tanks. Key Features - High Efficiency and Energy-Saving Design - This design delivers optimum efficiency with lower energy consumption, resulting in significant cost savings. - TOP - Thermal Overload Protector - The pump set features a Thermal Overload Protector that safeguards the motor from overloading, effectively shielding both the motor and the associated circuit from the effects of fault currents. - Wide Voltage Design - The motor is designed to withstand wide voltage fluctuations, ranging from 180 to 260 Volts in a single phase. - Shielded Ball Bearings - These pumps are fitted with shielded ball bearings, eliminating the need for external lubrication throughout their lifecycle.
المواصفات
| Product Series | Jalhansa |
|---|---|
| Pump Model | MINI JALHANSA-II(SILVER) |
| Pump Type (Installation) | Surface |
| Pump Type (Application) | Self Priming |
| Power (In HP) | 00.50 |
| Phase | 1 |
| Rated Voltage (Volts) | 220 |
| Frequency (in Hz) | 50 |
| Speed (rpm) | 2800 |
| Head Minimum (in m) | 6 |
| Head Maximum (in m) | 28 |
| Discharge Minimum | 400 |
| Discharge Maximum | 2050 |
| Discharge unit | LPH |
| Suction Size (in mm) | 25 |
| Delivery Size (in mm) | 25 |
| Impeller | BRASS |
| Delivery Casing | CAST IRON |
| Motor Body | ALUMINUM |
| Pump Shaft | CARBON STEEL |
| Sealing | Mechanical Seal |
| Certification/Accreditation | NON -ISI |
| Warranty | 18 Months |
| Gross Weight (kg) | 7.1 |
| Net Contents | 1 Pumpset, 1 Strainer |
| Item Code | D11XA00511041033 |
| Manufacturing location | Kaniyur, Tamil Nadu |
| No. of Stages | 1 |
